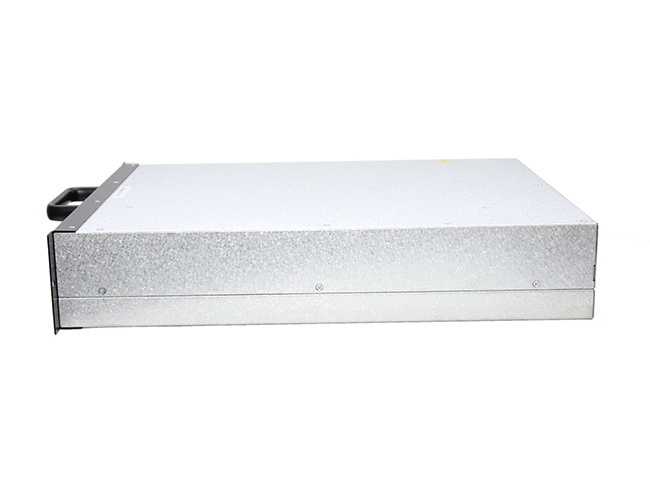

#high #voltage #rectifier <br> <br>40KW 1000V High Voltage Charging Power Module <br>It is a high voltage power supply module that uses advanced liquid cooling technology to provide a fast and efficient charging experience for your electric vehicle. Ultra-wide input (260~530Vac) output voltage range (50~1000Vdc), the three phase rectifier module has a wide operating temperature range of -40°C to +75°C, and the efficiency is as high as 95.5% or more. <br> <br>Specifications of 40KW 1000V High Voltage Charging Power Module <br>Module MXR100040L <br>Input Characteristics Input Voltage 260Vac~530Vac, three phase rectifier module+ PE <br> Input Current &lt;80A <br> Grid Frequency 45Hz~65Hz <br> Power Factor ≥0.95(8kw≤output power≤20kw); ≥0.98(20kw≤ output power≤40kw) <br> ITHD ≤5％(20kw≤ output power≤40kw) <br>Output Characteristics Output Power 40kW <br> Voltage Range 50-1000Vdc <br> Current Range 0~133.3 A (continuously regulated) <br> Rated Current 40A <br> Voltage stabilized accuracy ≤±0.5% <br> Current stabilized accuracy ≤±1% <br> Current Sharing Imbalance ≤±3% <br> Ripple Peak to Peak ≤1% <br>Environmental Conditions Operating Temperatue -40℃～+75℃(output derating above 60℃) <br> Storage Temperature -40℃～+75℃ <br> Relative Humidity ≤95% RH, Non-condensing <br> Altitude No derating below 2000m, When the altitude is above 1000m, it needs to set the actual altitude value,the working temperature decreases by 1°C for each additional 100 m. <br> MTBF &gt;500,000 hours <br>Basic Indicators Size(W×D×H) 340×470×100mm <br> Weight ≤28kg <br> Efficiency(full load) &gt;95.5% <br> Cooling Mode Liquid cooling <br> Communication Method CAN bus <br> Parallel Module Quantity ≤60pcs <br> Indicator Green: normal operation Yellow: alarm Red: fault LED digital tube <br> <br>Now the price of high voltage rectifier is reasonable, anything you need, please contact us. <br> <br>As a rectifier module manufacturer, we will do our best to meet all the needs of customers. <br> <br> <br>[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F40kw-1000v-high-voltage-charging-power-module%2F[/a]

#rectifier #module# price <br>40KW 1000V EV Charging Station Power Module <br>The 40kW Charging Post Module is a high-power charging device for electric vehicles. It can charge different electric vehicles quickly and with multiple ports. Intelligent features help users monitor, troubleshoot, and receive alerts. The user interface and payment management let users charge and pay. The interconnection and security features make the charging pile safer and more convenient for users. The 40kW charging pile module is also scalable and modular, so it can be expanded and customized to meet your needs. <br> <br>Specification of 40KW 1000V EV Charging AC DC Power Module <br>Module MXR100040B <br>Input Characteristics Input Voltage 260-530Vac, three-phase + PE <br> Input Current &lt;80A <br> Grid Frequency 45-65Hz <br> Power Factor ≥0.95(8kw≤output power≤20kw); ≥0.98(20kw≤output power≤40kw) <br> ITHD ≤5%(20kw≤output power≤40kw) <br>Output Characteristics Output Power 40kW <br> Voltage Range 100-1000Vdc <br> Current Range 0-133.3A continuously regulated <br> Rated Current 40A <br> Voltage stabilized accuracy ≤±0.5%(100V-1000V,0~20MHz) <br> Current stabilized accuracy ≤±1%(Output current 20% rated current~100% rated current value) <br> Current Sharing Imbalance ≤±3% <br> Ripple Peak to Peak ≤±1%(voltage stabilization status, input voltage 323Vac~530Vac,output voltage 200Vdc~1000Vdc, output current 0~rated current ) <br>Environmental Conditions Operating Temperatue -40℃～75℃, output derating above 50℃ <br> Storage Temperature -40℃～+75℃ <br> Relative Humidity ≤95% RH ,Non-condensation <br> Altitude No derating below 2000m,When the altitude is above 1000m, it needs to set the actual altitude value, the working temperature decreases by 1℃ for each additional 100 m <br> MTBF &gt;500000 hours <br>Basic Indicators Size(W×D×H) 360×459×85mm <br> Weight ≤20kg <br> Efficiency(full load) &gt;95.5% <br> Cooling Mode Fan cooling <br> Standby Power consumption 13W+/-0.5W <br> Communication Method CAN bus <br> Parallel Module Quantity ≤60 pieces <br> Indicator Green: normal operation Yellow: alarm Red: fault LED digital tube <br> Certification CE/TUV TUVus <br> <br>If you want to buy ac to dc converter 40w , please contact us. <br> <br>Now the rectifier module price is reasonable, anything you need, please leave us a message. <br> <br>As one of power rectifier manufacturers, we will do our best to meet all the needs of customers. <br>[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F40kw-1000v-ev-dc-charging-power-module%2F[/a]

#ac #dc #power #modules <br>30KW High Efficiency Ev Fast Charging Power Module <br>The 30kw ac dc power modules for ev charger is a high-performance, high-efficiency device designed for the safe and efficient charging of electric and hybrid vehicles. The device converts alternating current (AC) power to direct current (DC) power, which is suitable for use with electric vehicles. It features a wide voltage range, communication and control interfaces. Should you require them, a range of optional accessories and features are available upon request to meet the diverse needs of our customers and applications. <br> <br>Specifications of 30KW High Efficiency Ev Fast Charging Power Module <br>Module MXR100030B <br>Input Characteristics Input Voltage 260-530Vac, three-phase + PE <br> Input Current &lt;60A <br> Grid Frequency 45-65Hz <br> Power Factor ≥0.95(6kw≤output power≤15kw); ≥0.98(20kw≤output power≤40kw) <br> ITHD ≤5%(15kw≤output power≤30kw) <br>Output Characteristics Output Power 30kw <br> Voltage Range 100-1000Vdc <br> Current Range 0-100A continuously regulated <br> Rated Current 30A <br> Voltage stabilized accuracy ≤±0.5%(100V-1000V,0~20MHz) <br> Current stabilized accuracy ≤±1%(Output current 20% rated current~100% rated current value) <br> Current Sharing Imbalance ≤±3% <br> Ripple Peak to Peak ≤±1%(voltage stabilization status, input voltage 323Vac~456Vac,output voltage 200Vdc~1000Vdc, output current 0~rated current ) <br>Environmental Conditions Operating Temperatue -40℃～75℃, output derating above 55℃ <br> Storage Temperature -40℃～+75℃ <br> Relative Humidity ≤95% RH ,Non-condensation <br> Altitude No derating below 2000m,When the altitude is above 2000m, the operating temperature decreases by 1℃ for each additional 100 m <br> MTBF &gt;500000 hours <br>Basic Indicators Size(W×D×H) 360×459×85mm <br> Weight ≤20kg <br> Efficiency(full load) &gt;95.5% <br> Cooling Mode Fan cooling <br> Standby Power consumption 13W+/-0.5W <br> Communication Method CAN bus <br> Parallel Module Quantity ≤60 pieces <br> Indicator Green: normal operation Yellow: alarm Red: fault <br> Certification CE/TUV/EMC cTUVus <br> <br>Now the price of efficiency of ac to dc converter is reasonable, if you want to buy high power ac dc converter, please contact us. <br> <br>As one of dc dc converter module manufacturers, we will do our best to meet all the needs of customers. <br> <br>[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F30kw-high-efficiency-ev-fast-charging-power-module%2F[/a]

#wide #range #dc #dc #converter <br>The china 30kw ev dc charger module offers a high power output, enabling electric vehicles to be charged in a shorter period of time, providing a faster charging experience. This charging module is designed for use in scenarios where fast charging is required, such as high-speed charging stations, commercial charging stations, and applications that require fast range recovery. <br> <br>Types of 30KW EV Charger Module DC-DC <br>30KW DC-DC EV Charger Module <br> <br>Where Are the 30KW DC Vehicle Charging Modules Installed? <br>The installation location of the 30kW DC car charging module can be determined based on specific needs and scenarios. Here are some common installation locations: <br> <br>Charging station: charging station is a facility dedicated to providing EV charging services, usually located in highway service areas, parking lots or other public areas. In a charging station, multiple 30kW DC charging modules can be installed to meet the charging needs of multiple EVs. <br> <br>Gas stations: Some traditional gas stations have started to provide EV charging services. In this case, 30kW DC charging modules can be installed next to parking spaces or other designated areas in the gas station, making it easy for EVs to actively seek out charging facilities. <br> <br>Commercial districts and shopping centers: Commercial districts and shopping centers are frequented by people, and the installation of 30kW DC charging modules can make it easier for customers to charge their EVs during shopping and leisure time. <br> <br>Parking lots: Parking lots can be fitted with 30kW DC charging modules to provide charging for parked electric vehicles. This can include indoor parking lots, outdoor parking lots and dedicated parking spaces for companies, offices and residential areas. <br> <br>How Does the 30KW DC-DC Charging Module Work? <br>A DC-DC charging module is a device used to convert DC power from one source to different voltage or current levels. It plays an important role in electric vehicle charging systems and is commonly used in charging stations or charging piles. <br> <br>The working principle is as follows: <br> <br>Input DC energy: DC-DC charging module receives input electrical energy from a DC power source. This DC power source can be DC power from the grid or DC power from an energy storage system (e.g. battery pack). <br> <br>Bus Conversion: The DC-DC charging module regulates and converts the input DC energy by controlling electronic components and switches. It raises or lowers the input voltage to the desired output voltage level. <br> <br>Output DC power: After conversion, the DC-DC charging module supplies the adjusted DC power to the target device, such as the charging system of an electric vehicle. The output DC power can have different voltage and current levels to meet the desired charging requirements. <br> <br>Control and protection: DC-DC charging modules are often equipped with control and protection features to ensure the safety and efficiency of the charging process. It monitors the input and output voltages and currents and carries out appropriate regulation and protection measures to prevent over-voltage, over-current and other fault conditions. <br> <br>In conclusion, DC-DC charging module receives input DC power, transforms and regulates it, and outputs DC power suitable for the target equipment. It plays an important role in the electric vehicle charging system for adjusting and adapting different voltage and current levels to achieve an efficient and safe charging process. <br> <br>Now the price of wide range dc dc converter is reasonable, if you want to buy high voltage output dc dc converter , please contact us. <br> <br>As an ev charger module supplier, we will do our best to meet all the needs of customers. <br> <br>[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F30kw-ev-charger-module-dc-dc%2F[/a]

[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F30kw-ev-charger-module%2F[/a] <br>#rectifier #module #factory <br>The 30kw power module for ev charger serves as a reliable and efficient charging solution for electric vehicles. It offers a moderate power output suitable for various charging applications, incorporates intelligent features for enhanced user experience, and prioritizes safety in the charging process. <br> <br>Can the 30KW Charging Post Module Meet the Charging Needs of EV Owners? <br>Yes, especially in daily charging scenarios. The exact charging time depends on the vehicle&#039;s battery capacity and charging rate, but for most EVs, 30kW is enough to complete charging in a reasonable amount of time. <br>Charging needs: Most EV owners drive between 100 and 200 kilometers per day, so they only need to charge a little each day. 30kw power module for ev charger can provide enough power to meet this charging need, allowing owners to complete charging in a short period of time. Some 30kW charging post modules are equipped with intelligent features, such as remote monitoring and regulation of charging power. These functions can be adjusted according to the owner&#039;s needs and the load on the grid, thus providing a more flexible and efficient charging experience. <br>If you&#039;re going far or need to charge fast, a 50kW or higher-power fast charging post may be better. But for daily use, a 30kW charging post module will usually do. <br> <br>Is the 30kw Charging Post Module Scalable and Modular in Design? <br>Yes, many of the 30kW charging post modules have an expandable and modular design. This design allows the charging station system the flexibility to expand and customize as needed. <br>Scalability means that the system can add more Charging Post Modules to meet the charging needs of more EVs as the charging demand increases. For example, if charging demand increases, charging capacity can be expanded by adding additional 30kW charging pile modules to support more vehicles charging at the same time. <br>The modular design allows the different components of the charging post system to be operated and expanded independently. This means that each functional module of the charging pile (e.g. power module, control module, communication module, etc.) can be replaced or upgraded independently without having to replace the entire charging pile system. This reduces maintenance costs and improves system reliability and maintainability. <br>The modular design can also be customized to meet specific needs. Depending on the desired functionality and performance, different combinations of modules can be selected to build a customized 30kW charging post system. This flexibility allows the charging pile to be adapted to different scenarios and applications. <br> <br>As a rectifier module factory, We provide ac dc power converter for car, wide input range ac dc converter, ac dc converter for car, ac dc power rectifier, 400v ac to dc converter, 100 amp ac to dc converter, etc. For dc fast charger for ev price or more information, please feel free to contact us!

[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F30kw-dc-dc-ev-charger-module%2F[/a] <br>#rectifier #module #manufacturer <br>The 30kw ev dc charger module is a high-power device for electric vehicles. It has a wide range of voltages. The module has an efficient energy conversion design to save energy, charge faster, and keep it working well. The communication and control interfaces support many communication protocols, allowing for monitoring, control, and data transmission of the charging process. The charging process is safe and the equipment is reliable. Optional accessories and features include charging plug standards, energy storage system integration, intelligent charge management, and remote monitoring. The charging module can be customized to meet specific needs. <br> <br>Specification of 30KW DC-DC EV Charger Module <br>Module MXR100030-DC <br>Input Characteristics Input Voltage 240Vdc~810Vdc, DC + PE <br> Input Current &lt;80A <br> ITHD ≤5% (20kw≤output power≤30kw) <br>Output Characteristics Output Power 30kW <br> Voltage Range 100-1000Vdc <br> Current Range 0~133.3 A (continuously regulated) <br> Rated Current 40A <br> Voltage stabilized accuracy ≤±0.5%(voltage stabilization status, input voltage 323Vac~456Vac, output voltage 200Vdc~1000Vdc, output current 0~Rated current value) <br> Current stabilized accuracy ≤±1%(voltage stabilization status, input voltage 323Vac~456Vac, output voltage 200~1000Vdc, output current 20% rated current~100% rated current value) <br> Current Sharing Imbalance ≤±5% <br> Ripple Peak to Peak ≤±1%(voltage stabilization status, input voltage 323Vac~456Vac,output voltage 200Vdc~1000Vdc, output current 0~rated current ) <br>Environmental Conditions Operating Temperatue -40℃～+75℃(output derating above 55℃) <br> Storage Temperature -40℃～+75℃ <br> Relative Humidity ≤95% RH Non-condensing <br> Altitude No derating below 2000m, When the altitude is above 2000m, the operating temperature decreases by 1°C for each additional 100 m. <br> MTBF &gt;500,000 hours <br>Basic Indicators Size(W×D×H) 459×360×85mm <br> Weight ≤20kg <br> Efficiency(full load) &gt;95.5% <br> Cooling Mode Forced air cooling <br> Standby Power consumption 13W+/-0.5W <br> Communication Method CAN bus <br> Parallel Module Quantity ≤60pcs <br> Indicator Green: normal operation  Yellow: alarm   Red: fault LED digital tube <br> <br>As a rectifier module manufacturer, We provide high voltage high power dc dc converter, cheap dc dc converter, high power bidirectional dc dc converter, dc converter energy storage, wide input dc dc converter, energy storage converter, 60kw dc fast charger, etc. For more information, please feel free to contact us!

[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F20kw-ev-charger-module%2F[/a] <br>#power #rectifier #manufacturers <br>20kW AC-DC low voltage ac to dc rectifier is mainly used to convert AC power into DC power to meet the charging needs of electric vehicles.20kW ac dc converter high efficiency is a high power charging device for fast charging scenarios with multiple features and protections to provide efficient, safe and reliable charging services. <br> <br>How does the 20kW ev charging module protect the battery life? <br>Charge Voltage and Current Control: Charging modules monitor the battery and control the charge voltage and current. They adjust the charging parameters to avoid overcharging or overdischarging, thus extending the battery&#039;s life. <br>Temperature Management: low power ac dc converter the battery temperature and control the charge rate or stop charging to prevent overheating. High temperatures shorten battery life. The temperature management feature keeps the battery at the right temperature to extend battery life. <br>Monitoring the charging process. The high efficiency ac to dc converter the battery during charging. They can detect and stop charging if there is an error. <br>Charge Stop and Power Failure Protection: Charging modules have a charge stop function that stops charging when the battery is fully charged to avoid overcharging. Charging modules also protect batteries from damage in case of a power outage. <br>Data logging and troubleshooting. Some charging modules have features that record and provide troubleshooting information during the charging process. This helps monitor the charging system, identify and resolve problems, and protect the battery. <br> <br>What Are the Requirements for Installation and Use of 20KW EV Charging Modules? <br>Power supply: Connect the charging module to a reliable power supply that meets local standards and safety codes. Make sure the charging module&#039;s voltage and frequency match the power supply network and power system requirements. <br>Connect the electrical wires. The charging module needs to be connected to the power supply. Make sure the cables meet electrical standards and can carry a lot of current safely. <br>Safety spacing: Safety regulations say that charging modules must be installed with enough space around them to keep people safe. This helps prevent fire, shock, and other safety risks. <br>Ventilation and cooling: Charging modules need to be ventilated and cooled to operate at the right temperature. Make sure there&#039;s enough space and ventilation at the installation location and follow the cooling instructions from the manufacturer. <br>Grounding: Charging modules must be grounded to be safe and avoid electrical interference. Make sure the ground wire is connected properly and that it is grounded according to the electrical standards and manufacturer&#039;s instructions. <br>User interface and labeling: The charging module should have a clear user interface and labeling for user understanding. Make sure the user interface is easy to use and gives clear warnings, instructions, and safety information. <br>Maintenance and Overhaul: Regular maintenance and inspection of the charging module helps it work well and last a long time. Follow the manufacturer&#039;s maintenance schedule. <br>Also, follow these best practices: <br>Read the installation guide, user manual, and safety instructions before installing and using the charging module. <br>Choose a safe place to put the charging equipment. <br>If you need electrical engineering or installation work done, get it done by a professional. <br>Follow local safety rules to make sure the charging equipment is safe. <br> <br>For more information about what is power supply module and ev dc fast charger price, please feel free to contact us! <br> <br>There are many power rectifier manufacturers, but we are one of the best choices for you.

[a]https%3A%2F%2Fwww.evchargermodule.com%2Fproducts%2F20kw-100v-low-voltage-high-current-charging-power%2F[/a] <br>#ev #dc #fast #charger <br>Our 20kW AC-DC vehicle charging modules feature multiple charging modes, power factor correction, dynamic grid support, and temperature management systems. Additionally, these modules feature fault diagnostics and alarms, scalability and interconnectivity, as well as comprehensive charging solutions, including data logging and analysis. Moreover, these charging modules are certified and compliant with all relevant product safety, reliability and compatibility standards. Efficient energy conversion and conservation, as well as environmental protection, are just a few of their many attributes. They provide an efficient, safe and convenient charging experience for electric vehicles. <br> <br>Specifications of 20KW 100V Low Voltage High Current Charging Power Module <br>Module MXR100200 <br>Input Characteristics Input Voltage 285-475Vac, three-phase + PE <br> Input Current &lt;40A <br> Grid Frequency 45-65Hz <br> Power Factor ≥0.99 @50%~100% full load output power <br> ITHD ≤5% @50%~100% full load output power <br>Output Characteristics Output Power 20kw <br> Voltage Range 40-100Vdc <br> Current Range 0~200A <br> Rated Current 200A <br> Voltage stabilized accuracy ≤±0.5% <br> Current stabilized accuracy ≤±1% (output load 20%~100% rated range) <br> Current Sharing Imbalance ≤±5% <br> Ripple Peak to Peak ≤1% <br>Environmental Conditions Operating Temperatue -40℃～75℃, output derating above 50℃ <br> Storage Temperature -40℃～+75℃ <br> Relative Humidity ≤95% RH ,Non-condensation <br> Altitude ≤1000m without derating, &gt;1000m, the working temperature decreases by 1℃ for each additional 100 m <br> MTBF &gt;500000 hours <br>Basic Indicators Size(W×D×H) 226×395×84mm <br> Weight ≤11kg <br> Efficiency(full load) &gt;95% <br> Cooling Mode Forced air cooling <br> Standby Power consumption 8.5W+/-0.5W <br> Communication Method CAN bus <br> Parallel Module Quantity ≤60 pieces <br> Indicator Green: normal operation  Yellow: alarm   Red: fault <br> <br>For more information about low voltage ac to dc converter, please feel free to contact us! <br>There are many ev dc fast charger manufacturers, but we are one of the best choices for you.
