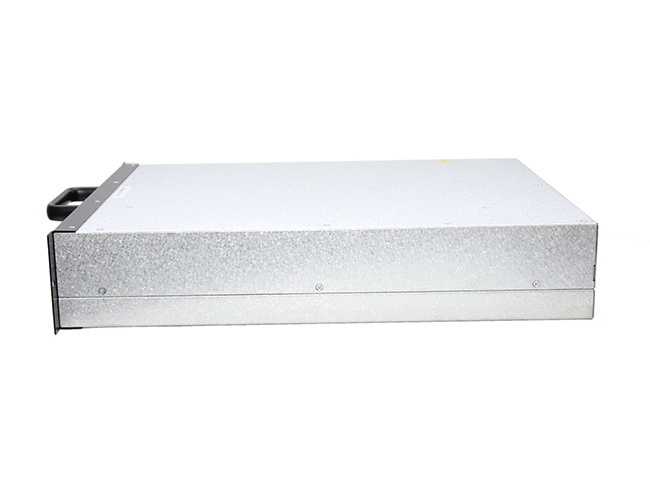

The 30kw ev dc charger module is a high-power device for electric vehicles. It has a wide range of voltages. The module has an efficient energy conversion design to save energy, charge faster, and keep it working well. The communication and control interfaces support many communication protocols, allowing for monitoring, control, and data transmission of the charging process. The charging process is safe and the equipment is reliable. Optional accessories and features include charging plug standards, energy storage system integration, intelligent charge management, and remote monitoring. The charging module can be customized to meet specific needs.

Specification of 30KW DC-DC EV Charger Module
Module MXR100030-DC
Input Characteristics Input Voltage 240Vdc~810Vdc, DC + PE
Input Current <80A
ITHD ≤5% (20kw≤output power≤30kw)
Output Characteristics Output Power 30kW
Voltage Range 100-1000Vdc
Current Range 0~133.3 A (continuously regulated)
Rated Current 40A
Voltage stabilized accuracy ≤±0.5%(voltage stabilization status, input voltage 323Vac~456Vac, output voltage 200Vdc~1000Vdc, output current 0~Rated current value)
Current stabilized accuracy ≤±1%(voltage stabilization status, input voltage 323Vac~456Vac, output voltage 200~1000Vdc, output current 20% rated current~100% rated current value)
Current Sharing Imbalance ≤±5%
Ripple Peak to Peak ≤±1%(voltage stabilization status, input voltage 323Vac~456Vac,output voltage 200Vdc~1000Vdc, output current 0~rated current )
Environmental Conditions Operating Temperatue -40℃～+75℃(output derating above 55℃)
Storage Temperature -40℃～+75℃
Relative Humidity ≤95% RH Non-condensing
Altitude No derating below 2000m, When the altitude is above 2000m, the operating temperature decreases by 1°C for each additional 100 m.
MTBF >500,000 hours
Basic Indicators Size(W×D×H) 459×360×85mm
Weight ≤20kg
Efficiency(full load) >95.5%
Cooling Mode Forced air cooling
Standby Power consumption 13W+/-0.5W
Communication Method CAN bus
Parallel Module Quantity ≤60pcs
Indicator Green: normal operation  Yellow: alarm   Red: fault LED digital tube
