Our 20kW AC-DC vehicle charging modules feature multiple charging modes, power factor correction, dynamic grid support, and temperature management systems. Additionally, these modules feature fault diagnostics and alarms, scalability and interconnectivity, as well as comprehensive charging solutions, including data logging and analysis. Moreover, these charging modules are certified and compliant with all relevant product safety, reliability and compatibility standards. Efficient energy conversion and conservation, as well as environmental protection, are just a few of their many attributes. They provide an efficient, safe and convenient charging experience for electric vehicles.

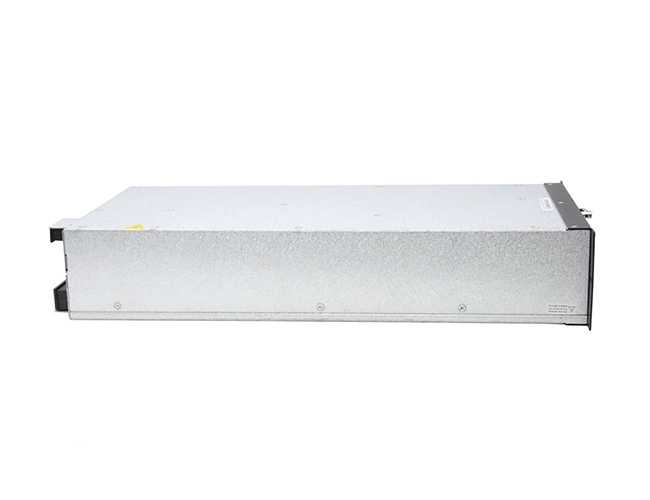

Specifications of 20KW 100V Low Voltage High Current Charging Power Module
Module MXR100200
Input Characteristics Input Voltage 285-475Vac, three-phase + PE
Input Current <40A
Grid Frequency 45-65Hz
Power Factor ≥0.99 @50%~100% full load output power
ITHD ≤5% @50%~100% full load output power
Output Characteristics Output Power 20kw
Voltage Range 40-100Vdc
Current Range 0~200A
Rated Current 200A
Voltage stabilized accuracy ≤±0.5%
Current stabilized accuracy ≤±1% (output load 20%~100% rated range)
Current Sharing Imbalance ≤±5%
Ripple Peak to Peak ≤1%
Environmental Conditions Operating Temperatue -40℃～75℃, output derating above 50℃
Storage Temperature -40℃～+75℃
Relative Humidity ≤95% RH ,Non-condensation
Altitude ≤1000m without derating, >1000m, the working temperature decreases by 1℃ for each additional 100 m
MTBF >500000 hours
Basic Indicators Size(W×D×H) 226×395×84mm
Weight ≤11kg
Efficiency(full load) >95%
Cooling Mode Forced air cooling
Standby Power consumption 8.5W+/-0.5W
Communication Method CAN bus
Parallel Module Quantity ≤60 pieces
Indicator Green: normal operation  Yellow: alarm   Red: fault
