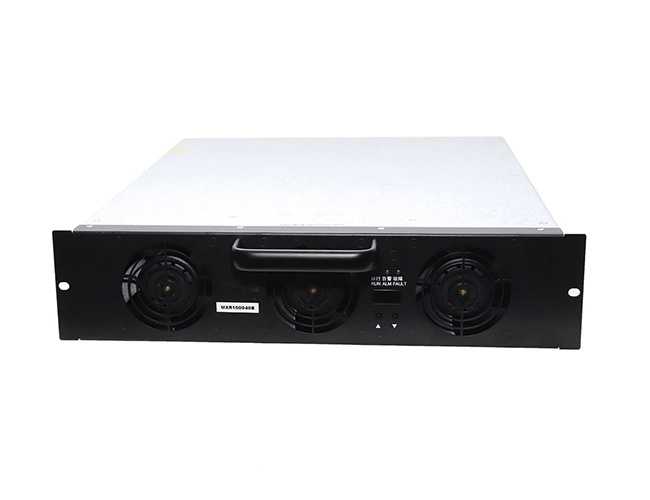

40KW 1000V EV Charging Station Power Module
The 40kW Charging Post Module is a high-power charging device for electric vehicles. It can charge different electric vehicles quickly and with multiple ports. Intelligent features help users monitor, troubleshoot, and receive alerts. The user interface and payment management let users charge and pay. The interconnection and security features make the charging pile safer and more convenient for users. The 40kW charging pile module is also scalable and modular, so it can be expanded and customized to meet your needs.

Specification of 40KW 1000V EV Charging AC DC Power Module
Module MXR100040B
Input Characteristics Input Voltage 260-530Vac, three-phase + PE
Input Current <80A
Grid Frequency 45-65Hz
Power Factor ≥0.95(8kw≤output power≤20kw); ≥0.98(20kw≤output power≤40kw)
ITHD ≤5%(20kw≤output power≤40kw)
Output Characteristics Output Power 40kW
Voltage Range 100-1000Vdc
Current Range 0-133.3A continuously regulated
Rated Current 40A
Voltage stabilized accuracy ≤±0.5%(100V-1000V,0~20MHz)
Current stabilized accuracy ≤±1%(Output current 20% rated current~100% rated current value)
Current Sharing Imbalance ≤±3%
Ripple Peak to Peak ≤±1%(voltage stabilization status, input voltage 323Vac~530Vac,output voltage 200Vdc~1000Vdc, output current 0~rated current )
Environmental Conditions Operating Temperatue -40℃～75℃, output derating above 50℃
Storage Temperature -40℃～+75℃
Relative Humidity ≤95% RH ,Non-condensation
Altitude No derating below 2000m,When the altitude is above 1000m, it needs to set the actual altitude value, the working temperature decreases by 1℃ for each additional 100 m
MTBF >500000 hours
Basic Indicators Size(W×D×H) 360×459×85mm
Weight ≤20kg
Efficiency(full load) >95.5%
Cooling Mode Fan cooling
Standby Power consumption 13W+/-0.5W
Communication Method CAN bus
Parallel Module Quantity ≤60 pieces
Indicator Green: normal operation Yellow: alarm Red: fault LED digital tube
Certification CE/TUV TUVus

If you want to buy ac to dc converter 40w , please contact us.

Now the rectifier module price is reasonable, anything you need, please leave us a message.

As one of power rectifier manufacturers, we will do our best to meet all the needs of customers.
