HUTCHINHYDRAULIC's Store
Owned by HUTCHINHYDRAULIC Joined Jul 2024 5 Listings
HUTCHINHYDRAULIC's Store
easyid.me/biz/hutchinhydraulic-6fea28 • Verified Store
Scan to open official EasyID digital store, view live catalog, or save business card.
Verified Merchant
EasyID Certified Seller
Fast 24h Packing
Direct courier dispatch
Zero Escrow Direct
Direct merchant settlement
Store Listings (5)
WTH Pin Eye Welded Hydraulic Cylinder
#Hydraulic <br>[a]https%3A%2F%2Fwww.hutchin-hydraulic.com%2Fproducts%2Fwth-pin-eye-welded-hydraulic-cylinder.html[/a] <br>WTH Pin Eye Welded Hydraulic Cylinder <br>The WTH Pin Eye Welded Hydraulic Cylinder is a heavy-duty and reliable cylinder designed for double-acting applications with a pressure rating of 3000 PSI. It features a durable welded construction, a high-tensile steel rod with hard chrome plating and induction hardening for enhanced strength and durability. The honed steel tube ensures precise movement, while the piston and gland are made of ductile iron for added toughness. All seals are manufactured to US specifications, and SAE ports are available for easy installation. <br> <br>The WTH welded hydraulic cylinders are suitable for medium and heavy-duty applications. These welded hydraulic cylinders are rated at 3000 PSI, have a forged cross tube base and a through-hole pin eye. Each cylinder has undergone rigorous high pressure testing and comes with a 2-year warranty. <br> <br>Characteristics of WTH Pin Eye Welded Hydraulic Cylinder <br> <br>Operating pressure: 3000PSI <br> <br>Construction: Heavy duty welded construction <br> <br>Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished. <br> <br>Seals: Hallite <br> <br>Ports: NPT, SAE, BSP available <br> <br>Color: Standard gloss black paint; Custom color available upon request <br> <br>Package: Wooden crate reinforced with iron frame <br> <br>Specification of WTH Pin Eye Welded Hydraulic Cylinder <br>Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs) <br> Retracted Extended <br>TWTH30-1504 1" 1.5"x4" 11" 15" SAE#6 5/8" 7 <br>TWTH30-1506 1.5"x6" 13" 19" 8 <br>TWTH30-1508 1.5"x8" 15" 23" 9 <br>TWTH30-1510 1.5"x10" 17" 27" 11 <br>TWTH30-1512 1.5"x12" 19" 31" 12 <br>TWTH30-1514 1.5"x14" 21" 35" 13 <br>TWTH30-1516 1.5"x16" 23" 39" 14 <br>TWTH30-2004 1-1/4" 2"x4" 12" 16" SAE#8 3/4" 10 <br>TWTH30-2006 2"x6" 14" 20” 12 <br>TWTH30-2008 2"x8" 16" 24" 14 <br>TWTH30-2010 2"x10" 18" 28" 16 <br>TWTH30-2012 2"x12" 20" 32" 17 <br>TWTH30-2014 2"x14" 22" 36" 19 <br>TWTH30-2016 2"x16" 24" 40" 21 <br>TWTH30-2018 2"x18" 26" 44" 22 <br>TWTH30-2020 2"x20" 28" 48" 24 <br>TWTH30-2024 2"x24" 32" 56" 27 <br>TWTH30-2028 2"x28" 36" 64" 31 <br>TWTH30-2030 2"x30" 38" 68" 33 <br>TWTH30-2032 2"x32" 40" 72" 34 <br>TWTH30-2036 2"x36" 44" 80" 38 <br>TWTH30-2040 2"x40" 48" 88" 41 <br>TWTH30-2042 2"x42" 50" 92" 43 <br>TWTH30-2048 2"x48" 56" 104" 48 <br>TWTH30-2060 2"x60" 68" 128" 58 <br>TWTH30-2072 2"x72" 80" 152" 68 <br>TWTH30-2504 1-3/8" 2.5"x4" 12" 16" SAE#8 3/4" 14 <br>TWTH30-2506 2.5"x6" 14" 20" 16 <br>TWTH30-2508 2.5"x8" 16" 24" 18 <br>TWTH30-2510 2.5"x10" 18" 28" 20 <br>TWTH30-2512 2.5"x12" 20" 32" 22 <br>TWTH30-2514 2.5"x14" 22" 36" 24 <br>TWTH30-2516 2.5"x16" 24" 40" 26 <br>TWTH30-2518 2.5"x18" 26" 44" 28 <br>TWTH30-2520 2.5"x20" 28" 48" 30 <br>TWTH30-2524 2.5"x24" 32" 56" 35 <br>TWTH30-2528 2.5"x28" 36" 64" 39 <br>TWTH30-2530 2.5"x30" 38" 68" 41 <br>TWTH30-2532 2.5"x32" 40" 72" 43 <br>TWTH30-2536 2.5"x36" 44" 80" 47 <br>TWTH30-2540 2.5"x40" 48" 88" 51 <br>TWTH30-2542 2.5"x42" 50" 92" 53 <br>TWTH30-2548 2.5"x48" 56" 104" 59 <br>TWTH30-2560 2.5"x60" 68" 128" 72 <br>TWTH30-3004 1-1/2" 3"x4" 12" 16" SAE#8 1" 19 <br>TWTH30-3006 3"x6" 14" 20" 21 <br>TWTH30-3008 3"x8" 16" 24" 24 <br>TWTH30-3010 3"x10" 18" 28" 26 <br>TWTH30-3012 3"x12" 20" 32" 28 <br>TWTH30-3014 3"x14" 22" 36" 31 <br>TWTH30-3016 3"x16" 24" 40" 33 <br>TWTH30-3018 3"x18" 26" 44" 36 <br>TWTH30-3020 3"x20" 28" 48" 38 <br>TWTH30-3024 3"x24" 32" 56" 43 <br>TWTH30-3028 3"x28" 36" 64" 48 <br>TWTH30-3030 3"x30" 38" 68" 51 <br>TWTH30-3032 3"x32" 40" 72" 53 <br>TWTH30-3036 3"x36" 44" 80" 58 <br>TWTH30-3040 3"x40" 48" 88" 63 <br>TWTH30-3042 3"x42" 50" 92" 65 <br>TWTH30-3048 3"x48" 56" 104" 73 <br>TWTH30-3060 3"x60" 68" 128" 87 <br>TWTH30-3504 1-3/4" 3.5"x4" 12" 16" SAE#8 1" 24 <br>TWTH30-3506 3.5"x6" 14" 20" 27 <br>TWTH30-3508 3.5"x8" 16" 24" 30 <br>TWTH30-3510 3.5"x10" 18" 28" 33 <br>TWTH30-3512 3.5"x12" 20" 32" 36 <br>TWTH30-3514 3.5"x14" 22" 36" 39 <br>TWTH30-3516 3.5"x16" 24" 40" 42 <br>TWTH30-3518 3.5"x18" 26" 44" 45 <br>TWTH30-3520 3.5"x20" 28" 48" 48 <br>TWTH30-3524 3.5"x24" 32" 56" 54 <br>TWTH30-3528 3.5"x28" 36" 64" 60 <br>TWTH30-3530 3.5"x30" 38" 68" 63 <br>TWTH30-3532 3.5"x32" 40" 72" 66 <br>TWTH30-3536 3.5"x36" 44" 80" 72 <br>TWTH30-3540 3.5"x40" 48" 88" 79 <br>TWTH30-3542 3.5"x42" 50" 92" 82 <br>TWTH30-3548 3.5"x48" 56" 104" 91 <br>TWTH30-3560 3.5"x60" 68" 128" 109 <br>TWTH30-4004 2" 4"x4" 13" 17" SAE#8 1-1/4" 33 <br>TWTH30-4006 4"x6" 15" 21" 36 <br>TWTH30-4008 4"x8" 17" 25" 40 <br>TWTH30-4010 4"x10" 19" 29" 44 <br>TWTH30-4012 4"x12" 21" 33" 47 <br>TWTH30-4014 4"x14" 23" 37" 51 <br>TWTH30-4016 4"x16" 25" 41" 55 <br>TWTH30-4018 4"x18" 27" 45" 58 <br>TWTH30-4020 4"x20" 29" 49" 62 <br>TWTH30-4024 4"x24" 33" 57" 70 <br>TWTH30-4028 4"x28" 37" 65" 77 <br>TWTH30-4030 4"x30" 39" 69" 81 <br>TWTH30-4032 4"x32" 41" 73" 84 <br>TWTH30-4036 4"x36" 45" 81" 92 <br>TWTH30-4040 4"x40" 49" 89" 99 <br>TWTH30-4042 4"x42" 51" 93" 103 <br>TWTH30-4048 4"x48" 57" 105" 114 <br>TWTH30-4060 4"x60" 69" 129" 136 <br> <br>PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER A B c D E F G H ROD DIAMETER PORT <br>TWTH15- 1.50" 2.00" 7.00" 1.25" 0.64" 2.43" 0.62" 2.00" 0.81" 1.87" 1.00" SAE#6 <br>TWTH20- 2.00" 2.50" 8.00" 1.25" 0.76" 3.37" 0.75" 2.50" 0.81" 1.87" 1.25" SAE#8 <br>TWTH25- 2.50" 3.00" 8.00" 1.25" 0.76" 3.12" 0.75" 3.00" 0.81" 2.06" 1.50" SAE#8 <br>TWTH30- 3.00" 3.50" 8.00" 1.50" 1.01" 2.56" 1.00" 3.50" 0.81" 2.18" 1.50" SAE#8 <br>TWTH35- 3.50" 4.00" 8.00" 1.50" 1.01" 2.43" 1.00" 4.00" 0.81" 2.18" 1.75" SAE#8 <br>TWTH40- 4.00" 4.50" 9.00" 2.00" 1.26" 2.43" 1.25" 4.50" 0.81" 2.18" 2.00" SAE#8 <br>SEAL TEMPERATURE RANGE: -30°C/+100°C(-22°F/ + 212°F) <br>SEAL MAXIMUM SPEED:3 FT/SEC <br>MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI <br> <br>Now the price of heavy duty hydraulic cylinders for sale is reasonable, if you have needs, please contact us. <br> <br>As a professional hydraulic cylinder company, we will do our best to meet all the needs of customers.
WTH Pin Eye Welded Hydraulic Cylinder
#Hydraulic <br>[a]https%3A%2F%2Fwww.hutchin-hydraulic.com%2Fproducts%2Fwth-pin-eye-welded-hydraulic-cylinder.html[/a] <br>WTH Pin Eye Welded Hydraulic Cylinder <br>The WTH Pin Eye Welded Hydraulic Cylinder is a heavy-duty and reliable cylinder designed for double-acting applications with a pressure rating of 3000 PSI. It features a durable welded construction, a high-tensile steel rod with hard chrome plating and induction hardening for enhanced strength and durability. The honed steel tube ensures precise movement, while the piston and gland are made of ductile iron for added toughness. All seals are manufactured to US specifications, and SAE ports are available for easy installation. <br> <br>The WTH welded hydraulic cylinders are suitable for medium and heavy-duty applications. These welded hydraulic cylinders are rated at 3000 PSI, have a forged cross tube base and a through-hole pin eye. Each cylinder has undergone rigorous high pressure testing and comes with a 2-year warranty. <br> <br>Characteristics of WTH Pin Eye Welded Hydraulic Cylinder <br> <br>Operating pressure: 3000PSI <br> <br>Construction: Heavy duty welded construction <br> <br>Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished. <br> <br>Seals: Hallite <br> <br>Ports: NPT, SAE, BSP available <br> <br>Color: Standard gloss black paint; Custom color available upon request <br> <br>Package: Wooden crate reinforced with iron frame <br> <br>Specification of WTH Pin Eye Welded Hydraulic Cylinder <br>Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs) <br> Retracted Extended <br>TWTH30-1504 1" 1.5"x4" 11" 15" SAE#6 5/8" 7 <br>TWTH30-1506 1.5"x6" 13" 19" 8 <br>TWTH30-1508 1.5"x8" 15" 23" 9 <br>TWTH30-1510 1.5"x10" 17" 27" 11 <br>TWTH30-1512 1.5"x12" 19" 31" 12 <br>TWTH30-1514 1.5"x14" 21" 35" 13 <br>TWTH30-1516 1.5"x16" 23" 39" 14 <br>TWTH30-2004 1-1/4" 2"x4" 12" 16" SAE#8 3/4" 10 <br>TWTH30-2006 2"x6" 14" 20” 12 <br>TWTH30-2008 2"x8" 16" 24" 14 <br>TWTH30-2010 2"x10" 18" 28" 16 <br>TWTH30-2012 2"x12" 20" 32" 17 <br>TWTH30-2014 2"x14" 22" 36" 19 <br>TWTH30-2016 2"x16" 24" 40" 21 <br>TWTH30-2018 2"x18" 26" 44" 22 <br>TWTH30-2020 2"x20" 28" 48" 24 <br>TWTH30-2024 2"x24" 32" 56" 27 <br>TWTH30-2028 2"x28" 36" 64" 31 <br>TWTH30-2030 2"x30" 38" 68" 33 <br>TWTH30-2032 2"x32" 40" 72" 34 <br>TWTH30-2036 2"x36" 44" 80" 38 <br>TWTH30-2040 2"x40" 48" 88" 41 <br>TWTH30-2042 2"x42" 50" 92" 43 <br>TWTH30-2048 2"x48" 56" 104" 48 <br>TWTH30-2060 2"x60" 68" 128" 58 <br>TWTH30-2072 2"x72" 80" 152" 68 <br>TWTH30-2504 1-3/8" 2.5"x4" 12" 16" SAE#8 3/4" 14 <br>TWTH30-2506 2.5"x6" 14" 20" 16 <br>TWTH30-2508 2.5"x8" 16" 24" 18 <br>TWTH30-2510 2.5"x10" 18" 28" 20 <br>TWTH30-2512 2.5"x12" 20" 32" 22 <br>TWTH30-2514 2.5"x14" 22" 36" 24 <br>TWTH30-2516 2.5"x16" 24" 40" 26 <br>TWTH30-2518 2.5"x18" 26" 44" 28 <br>TWTH30-2520 2.5"x20" 28" 48" 30 <br>TWTH30-2524 2.5"x24" 32" 56" 35 <br>TWTH30-2528 2.5"x28" 36" 64" 39 <br>TWTH30-2530 2.5"x30" 38" 68" 41 <br>TWTH30-2532 2.5"x32" 40" 72" 43 <br>TWTH30-2536 2.5"x36" 44" 80" 47 <br>TWTH30-2540 2.5"x40" 48" 88" 51 <br>TWTH30-2542 2.5"x42" 50" 92" 53 <br>TWTH30-2548 2.5"x48" 56" 104" 59 <br>TWTH30-2560 2.5"x60" 68" 128" 72 <br>TWTH30-3004 1-1/2" 3"x4" 12" 16" SAE#8 1" 19 <br>TWTH30-3006 3"x6" 14" 20" 21 <br>TWTH30-3008 3"x8" 16" 24" 24 <br>TWTH30-3010 3"x10" 18" 28" 26 <br>TWTH30-3012 3"x12" 20" 32" 28 <br>TWTH30-3014 3"x14" 22" 36" 31 <br>TWTH30-3016 3"x16" 24" 40" 33 <br>TWTH30-3018 3"x18" 26" 44" 36 <br>TWTH30-3020 3"x20" 28" 48" 38 <br>TWTH30-3024 3"x24" 32" 56" 43 <br>TWTH30-3028 3"x28" 36" 64" 48 <br>TWTH30-3030 3"x30" 38" 68" 51 <br>TWTH30-3032 3"x32" 40" 72" 53 <br>TWTH30-3036 3"x36" 44" 80" 58 <br>TWTH30-3040 3"x40" 48" 88" 63 <br>TWTH30-3042 3"x42" 50" 92" 65 <br>TWTH30-3048 3"x48" 56" 104" 73 <br>TWTH30-3060 3"x60" 68" 128" 87 <br>TWTH30-3504 1-3/4" 3.5"x4" 12" 16" SAE#8 1" 24 <br>TWTH30-3506 3.5"x6" 14" 20" 27 <br>TWTH30-3508 3.5"x8" 16" 24" 30 <br>TWTH30-3510 3.5"x10" 18" 28" 33 <br>TWTH30-3512 3.5"x12" 20" 32" 36 <br>TWTH30-3514 3.5"x14" 22" 36" 39 <br>TWTH30-3516 3.5"x16" 24" 40" 42 <br>TWTH30-3518 3.5"x18" 26" 44" 45 <br>TWTH30-3520 3.5"x20" 28" 48" 48 <br>TWTH30-3524 3.5"x24" 32" 56" 54 <br>TWTH30-3528 3.5"x28" 36" 64" 60 <br>TWTH30-3530 3.5"x30" 38" 68" 63 <br>TWTH30-3532 3.5"x32" 40" 72" 66 <br>TWTH30-3536 3.5"x36" 44" 80" 72 <br>TWTH30-3540 3.5"x40" 48" 88" 79 <br>TWTH30-3542 3.5"x42" 50" 92" 82 <br>TWTH30-3548 3.5"x48" 56" 104" 91 <br>TWTH30-3560 3.5"x60" 68" 128" 109 <br>TWTH30-4004 2" 4"x4" 13" 17" SAE#8 1-1/4" 33 <br>TWTH30-4006 4"x6" 15" 21" 36 <br>TWTH30-4008 4"x8" 17" 25" 40 <br>TWTH30-4010 4"x10" 19" 29" 44 <br>TWTH30-4012 4"x12" 21" 33" 47 <br>TWTH30-4014 4"x14" 23" 37" 51 <br>TWTH30-4016 4"x16" 25" 41" 55 <br>TWTH30-4018 4"x18" 27" 45" 58 <br>TWTH30-4020 4"x20" 29" 49" 62 <br>TWTH30-4024 4"x24" 33" 57" 70 <br>TWTH30-4028 4"x28" 37" 65" 77 <br>TWTH30-4030 4"x30" 39" 69" 81 <br>TWTH30-4032 4"x32" 41" 73" 84 <br>TWTH30-4036 4"x36" 45" 81" 92 <br>TWTH30-4040 4"x40" 49" 89" 99 <br>TWTH30-4042 4"x42" 51" 93" 103 <br>TWTH30-4048 4"x48" 57" 105" 114 <br>TWTH30-4060 4"x60" 69" 129" 136 <br> <br>PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER A B c D E F G H ROD DIAMETER PORT <br>TWTH15- 1.50" 2.00" 7.00" 1.25" 0.64" 2.43" 0.62" 2.00" 0.81" 1.87" 1.00" SAE#6 <br>TWTH20- 2.00" 2.50" 8.00" 1.25" 0.76" 3.37" 0.75" 2.50" 0.81" 1.87" 1.25" SAE#8 <br>TWTH25- 2.50" 3.00" 8.00" 1.25" 0.76" 3.12" 0.75" 3.00" 0.81" 2.06" 1.50" SAE#8 <br>TWTH30- 3.00" 3.50" 8.00" 1.50" 1.01" 2.56" 1.00" 3.50" 0.81" 2.18" 1.50" SAE#8 <br>TWTH35- 3.50" 4.00" 8.00" 1.50" 1.01" 2.43" 1.00" 4.00" 0.81" 2.18" 1.75" SAE#8 <br>TWTH40- 4.00" 4.50" 9.00" 2.00" 1.26" 2.43" 1.25" 4.50" 0.81" 2.18" 2.00" SAE#8 <br>SEAL TEMPERATURE RANGE: -30°C/+100°C(-22°F/ + 212°F) <br>SEAL MAXIMUM SPEED:3 FT/SEC <br>MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI <br> <br>Now the price of heavy duty hydraulic cylinders for sale is reasonable, if you have needs, please contact us. <br> <br>As a professional hydraulic cylinder company, we will do our best to meet all the needs of customers.
Welded Hydraulic Cylinders
#welded <br>[a]https%3A%2F%2Fwww.hutchin-hydraulic.com%2Fproducts%2Fwelded-hydraulic-cylinders%2F[/a] <br> <br>Welded Hydraulic Cylinders <br>Unleash the power of efficiency with HUTCHIN HYDRAULIC's Welded Hydraulic Cylinders. Expertly crafted for superior strength and durability, as one of the most reliable welded hydraulic cylinder manufacturers, our cylinders are the epitome of engineering excellence. Designed for high-pressure applications, our Welded Hydraulic Cylinders deliver unparalleled performance and reliability. Whether you're in construction, manufacturing, or agriculture, our welded cross tube hydraulic cylinders for sale ensure smooth, safe, and efficient operations. Trust in HUTCHIN HYDRAULIC to power your success. <br> <br>Types of Welded Hydraulic Cylinders <br>ACL Clevis Welded Hydraulic Cylinder <br>The ACL welded clevis hydraulic cylinder is a high-quality and durable hydraulic cylinder weld on ends designed for various industrial applications. It offers reliable performance and efficient operation for optimal productivity. <br> <br>WBU Cross-Tube Welded Hydraulic Cylinder <br>The WBU welded hydraulic cylinder cross tube is a robust and dependable hydraulic cylinder specifically engineered for demanding industrial applications. With its durable construction and efficient performance, it is the perfect choice for heavy-duty machinery and equipment. <br> <br>WCL Clevis Welded Hydraulic Cylinder <br>The WCL Clevis Welded Hydraulic Cylinder is a heavy-duty and reliable cylinder designed for double-acting applications with a pressure rating of 3000 PSI. It features a durable welded construction, a high-tensile steel rod with chrome plating, and a honed steel tube for precision. The piston and gland are made of ductile iron, and all seals meet US specifications. <br> <br>WTH Pin Eye Welded Hydraulic Cylinder <br>The WTH Pin Eye Welded Hydraulic is a robust and dependable cylinder designed for double-acting applications with a pressure rating of 3000 PSI. It boasts a sturdy welded construction and a high-tensile steel rod, ensuring durability and reliable performance. <br> <br>What Applications Are Welded Hydraulic Cylinders Used In? <br> <br>Welded hydraulic cylinders China are extensively used in a broad range of applications due to their durability and strength. These welded hydraulic cylinders for sale are commonly found in construction equipment like excavators, bulldozers, and backhoes, where they provide the necessary force for lifting and moving heavy loads. In the manufacturing sector, welded hydraulic cylinders are used in presses and automated production lines for precise control over movement. Agricultural machinery, such as tractors and harvesters, rely on them for various tasks including plowing and harvesting. Additionally, welded hydraulic cylinders are used in mobile applications, including cranes and dump trucks, to facilitate lifting and dumping operations. Their robust design makes them suitable for demanding environments and heavy-duty applications. <br> <br>What Are The Advantages Of Welded Rod Cylinders? <br> <br>As a leading hydraulic cylinders company in China, our hydraulic cylinder welded double acting for sale offer several advantages. Firstly, their robust construction provides superior strength and durability, making them ideal for heavy-duty applications and harsh environments. The welded design also allows for a more compact and streamlined structure, which can be beneficial in space-constrained applications. Additionally, the absence of tie rods eliminates the potential for tie rod failure, enhancing the reliability of the cylinder. Welded rod cylinders also typically have a higher pressure rating compared to tie-rod cylinders. Lastly, the welded design can be customized to fit specific application requirements, offering greater flexibility. Choose HUTCHIN HYDRAULIC’s welded rod cylinders for a reliable, high-performance solution.
WCL Clevis Welded Hydraulic Cylinder
#cylinders <br>[a]https%3A%2F%2Fwww.hutchin-hydraulic.com%2Fproducts%2Fwcl-clevis-welded-hydraulic-cylinder.html[/a] <br> <br>WCL Clevis Welded Hydraulic Cylinder <br>The WCL welded 3000 PSI hydraulic cylinders are clevis-mounted and have an operating pressure of up to 3000PSI. Manufactured from honed cold drawn tube and hard chrome plated rod, fitted with HALLITE branded seals, these heavy duty welded cylinders are designed for rugged use, and come with standard gloss black color. Custom color are available with your request. <br> <br>The WCL Clevis Welded Hydraulic Cylinder is a versatile and durable hydraulic cylinder. With its compact design and efficient performance, this cylinder can handle heavy loads and provide smooth and precise movement. <br> <br>Characteristics of WCL Clevis Welded Hydraulic Cylinder <br> <br>Operating pressure: 3000PSI <br> <br>Construction: Heavy duty welded construction <br> <br>Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished. <br> <br>Seals: Hallite <br> <br>Ports: NPT,SAE,BSP available <br> <br>Color: Standard gloss black paint; Custom color available upon request <br> <br>Package: Wooden crate reinforced with iron frame <br> <br>Specification of WCL Clevis Welded Hydraulic Cylinder <br>Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs) <br> Retracted Extended <br>TWCL30-1504 1" 1.5"x4" 14-1/4" 18-1/4" 3/8NPT 3/4" 8 <br>TWCL30-1506 1.5"x6" 16-1/4" 22-1/4" 9 <br>TWCL30-1508 1.5"x8" 18-1/4" 26-1/4" 11 <br>TWCL30-1510 1.5"x10" 20-1/4" 30-1/4" 12 <br>TWCL30-1512 1.5"x12" 22-1/4" 34-1/4" 13 <br>TWCL30-1514 1.5"x14" 24-1/4" 38-1/4" 14 <br>TWCL30-1516 1.5"x16" 26-1/4" 42-1/4" 15 <br>TWCL30-1518 1.5"x18" 28-1/4" 46-1/4" 17 <br>TWCL30-1520 1.5"x20" 30-1/4" 50-1/4" 18 <br>TWCL30-1524 1.5"x24" 34-1/4" 58-1/4" 20 <br>TWCL30-2004 1-1/4" 2"x4" 14-1/4" 18-1/4" 3/8NPT 1" 14 <br>TWCL30-2006 2"x6" 16-1/4" 22-1/4" 16 <br>TWCL30-2008 2"x8" 18-1/4" 26-1/4" 18 <br>TWCL30-2010 2"x10" 20-1/4" 30-1/4" 19 <br>TWCL30-2012 2"x12" 22-1/4" 34-1/4" 21 <br>TWCL30-2014 2"x14" 24-1/4" 38-1/4" 23 <br>TWCL30-2016 2"x16" 26-1/4" 42-1/4" 25 <br>TWCL30-2018 2"x18" 28-1/4" 46-1/4" 26 <br>TWCL30-2020 2"x20" 30-1/4" 50-1/4" 28 <br>TWCL30-2024 2"x24" 34-1/4" 58-1/4" 31 <br>TWCL30-2028 2"x28" 38-1/4" 66-1/4" 35 <br>TWCL30-2030 2"x30" 40-1/4" 70-1/4" 36 <br>TWCL30-2032 2"x32" 42-1/4" 74-1/4" 38 <br>TWCL30-2034 2"x34" 44-1/4" 78-1/4" 40 <br>TWCL30-2036 2"x36" 46-1/4" 82-1/4" 42 <br>TWCL30-2040 2"x40" 50-1/4" 90-1/4" 45 <br>TWCL30-2048 2"x48" 58-1/4" 106-1/4" 52 <br>TWCL30-2504 1-1/2" 2.5"x4" 14-1/4" 18-1/4" 1/2NPT 1" 18 <br>TWCL30-2506 2.5"x6" 16-1/4" 22-1/4" 20 <br>TWCL30-2508 2.5"x8" 18-1/4" 26-1/4" 24 <br>TWCL30-2510 2.5"x10" 20-1/4" 30-1/4" 25 <br>TWCL30-2512 2.5"x12" 22-1/4" 34-1/4" 27 <br>TWCL30-2514 2.5"x14" 24-1/4" 38-1/4" 29 <br>TWCL30-2516 2.5"x16" 26-1/4" 42-1/4" 32 <br>TWCL30-2518 2.5"x18" 28-1/4" 46-1/4" 34 <br>TWCL30-2520 2.5"x20" 30-1/4" 50-1/4" 36 <br>TWCL30-2524 2.5"x24" 34-1/4" 58-1/4" 40 <br>TWCL30-2528 2.5"x28" 38-1/4" 66-1/4" 45 <br>TWCL30-2530 2.5"x30" 40-1/4" 70-1/4" 47 <br>TWCL30-2532 2.5"x32" 42-1/4" 74-1/4" 49 <br>TWCL30-2534 2.5"x34" 44-1/4" 78-1/4" 52 <br>TWCL30-2536 2.5"x36" 46-1/4" 82-1/4" 54 <br>TWCL30-2540 2.5"x40" 50-1/4" 90-1/4" 58 <br>TWCL30-2548 2.5"x48" 58-1/4" 106-1/4" 67 <br>TWCL30-3004 1-1/2" 3"x4" 14-1/4" 18-1/4" 1/2NPT 1" 22 <br>TWCL30-3006 3"x6" 16-1/4" 22-1/4" 24 <br>TWCL30-3008 3"x8" 18-1/4" 26-1/4" 27 <br>TWCL30-3010 3"x10" 20-1/4" 30-1/4" 29 <br>TWCL30-3012 3"x12" 22-1/4" 34-1/4" 31 <br>TWCL30-3014 3"x14" 24-1/4" 38-1/4" 34 <br>TWCL30-3016 3"x16" 26-1/4" 42-1/4" 36 <br>TWCL30-3018 3"x18" 28-1/4" 46-1/4" 39 <br>TWCL30-3020 3"x20" 30-1/4" 50-1/4" 41 <br>TWCL30-3024 3"x24" 34-1/4" 58-1/4" 46 <br>TWCL30-3028 3"x28" 38-1/4" 66-1/4" 51 <br>TWCL30-3030 3"x30" 40-1/4" 70-1/4" 53 <br>TWCL30-3032 3"x32" 42-1/4" 74-1/4" 56 <br>TWCL30-3034 3"x34" 44-1/4" 78-1/4" 58 <br>TWCL30-3036 3"x36" 46-1/4" 82-1/4" 61 <br>TWCL30-3040 3"x40" 50-1/4" 90-1/4" 66 <br>TWCL30-3048 3"x48" 58-1/4" 106-1/4" 75 <br>TWCL30-3504 1-3/4" 3.5"x4" 14-1/4" 18-1/4" 1/2 N PT 1" 27 <br>TWCL30-3506 3.5"x6" 16-1/4" 22-1/4" 30 <br>TWCL30-3508 3.5"x8" 18-1/4" 26-1/4" 35 <br>TWCL30-3510 3.5"x10" 20-1/4" 30-1/4" 36 <br>TWCL30-3512 3.5"x12" 22-1/4" 34-1/4" 39 <br>TWCL30-3514 3.5"x14" 24-1/4" 38-1/4" 42 <br>TWCL30-3516 3.5"x16" 26-1/4" 42-1/4" 46 <br>TWCL30-3518 3.5"x18" 28-1/4" 46-1/4" 49 <br>TWCL30-3520 3.5"x20" 30-1/4" 50-1/4" 52 <br>TWCL30-3524 3.5"x24" 34-1/4" 58-1/4" 58 <br>TWCL30-3528 3.5"x28" 38-1/4" 66-1/4" 64 <br>TWCL30-3530 3.5"x30" 40-1/4" 70-1/4" 67 <br>TWCL30-3532 3.5"x32" 42-1/4" 74-1/4" 70 <br>TWCL30-3534 3.5"x34" 44-1/4" 78-1/4" 73 <br>TWCL30-3536 3.5"x36" 46-1/4" 82-1/4" 76 <br>TWCL30-3540 3.5"x40" 50-1/4" 90-1/4" 82 <br>TWCL30-3548 3.5"x48" 58-1/4" 106-1/4" 94 <br>TWCL30-4004 2" 4.0"x4" 14-1/4" 18-1/4" 1/2NPT 1" 33 <br>TWCL30-4006 4.0"x6" 16-1/4" 22-1/4" 37 <br>TWCL30-4008 4.0"x8" 18-1/4" 26-1/4" 42 <br>TWCL30-4010 4.0"x10" 20-1/4" 30-1/4" 44 <br>TWCL30-4012 4.0"x12" 22-1/4" 34-1/4" 48 <br>TWCL30-4014 4.0"x14" 24-1/4" 38-1/4" 52 <br>TWCL30-4016 4.0"x16" 26-1/4" 42-1/4" 55 <br>TWCL30-4018 4.0"x18" 28-1/4" 46-1/4" 59 <br>TWCL30-4020 4.0"x20" 30-1/4" 50-1/4" 63 <br>TWCL30-4024 4.0"x24" 34-1/4" 58-1/4" 70 <br>TWCL30-4028 4.0"x28" 38-1/4" 66-1/4" 77 <br>TWCL30-4030 4.0"x30" 40-1/4" 70-1/4" 81 <br>TWCL30-4032 4.0"x32" 42-1/4" 74-1/4" 85 <br>TWCL30-4034 4.0"x34" 44-1/4" 78-1/4" 89 <br>TWCL30-4036 4.0"x36" 46-1/4" 82-1/4" 92 <br>TWCL30-4040 4.0"x40" 50-1/4" 90-1/4" 100 <br>TWCL30-4048 4.0"x48” 58-1/4" 106-1/4" 114 <br>TWCL30-5004 2-1/2" 5.0"x4" 16-1/4" 20-1/4" 1/2NPT 1" 64 <br>TWCL30-5006 5.0"x6" 18-1/4" 24-1/4" 69 <br>TWCL30-5008 5.0"x8" 20-1/4" 28-1/4" 74 <br>TWCL30-5010 5.0"x10" 22-1/4" 32-1/4" 79 <br>TWCL30-5012 5.0"x12" 24-1/4" 36-1/4" 84 <br>TWCL30-5014 5.0"x14" 26-1/4" 40-1/4" 89 <br>TWCL30-5016 5.0"x16" 28-1/4" 44-1/4" 95 <br>TWCL30-5018 5.0"x18" 30-1/4" 48-1/4" 100 <br>TWCL30-5020 5.0Bx20" 32-1/4" 52-1/4" 105 <br>TWCL30-5024 5.0"x24" 36-1/4" 60-1/4" 115 <br>TWCL30-5028 5.0"x28" 40-1/4" 68-1/4" 125 <br>TWCL30-5030 5.0"x30" 42-1/4" 72-1/4" 130 <br>TWCL30-5032 5.0"x32" 44-1/4" 76-1/4" 136 <br>TWCL30-5034 5.0"x34" 46-1/4" 80-1/4" 141 <br>TWCL30-5036 5.0"x36" 48-1/4" 84-1/4" 146 <br>TWCL30-5040 5.0"x40" 52-1/4" 92-1/4" 156 <br>TWCL30-5048 5.0"x48" 60-1/4" 108-1/4" 177 <br> <br>PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER *A B C D *E F G H 1 J K ROD DIAMETER PORT <br>TWCL15- 1.50" 2.00" 8.25" 1.62" 0.87" 1.37" 2.25" 1.37" 0.75" 0.76" none 0.93" 1.87" 1.00" 3/8NPT <br>TWCL20- 2.00" 2.50" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 1.00" 2.06" 1.25" 3/8NPT <br>TWCL25- 2.50" 3.00" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 0.81" 2.18" 1.50" 1/2NPT <br>TWCL30- 3.00" 3.50" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 0.81" 2.18" 1.50" 1/2 N PT <br>TWCL35- 3.50" 4.00" 10.25" 2.37" 1.12" 2.00" 3.12" 2.12" 1.00" 1.01" 2.12" 0.93" 2.18" 1.75" 1/2NPT <br>TWCL40- 4.00" 4.50" 10.25" 2.37" 1.12" 1.75" 3.12" 2.00" 1.00" 1.01" 2.00" 1.06" 2.18" 2.00" 1/2NPT <br>TWCL50- 5.00" 5.50" 13.00" 3.12" 1.62" 2.25" 3.62" 2.25" 1.50" 1.51" none 1.37" 2.75" 2.50" 1/2NPT <br>*FOR 8.00" STROKE :*A= 12.25"(2.00" TO 4.00" BORE) <br>*FOR 8.00" STROKE :*E= 5.12"(2.00" TO 4.00" BORE) <br>FOR 1.50" TO 4.00" BORE:SAE PORTS ARE AVAILABLE <br>SEAL TEMPERATURE RANGE:-30°C/+100°C(-22°FF/+212°F) <br>SEAL MAXIMUM SPEED:3 FT/SEC <br>MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI <br> <br>If you want to know more about heavy duty hydraulic cylinder price, please visit our website. <br> <br>As a hydraulic cylinder factory, we will do our best to meet all the needs of customers.

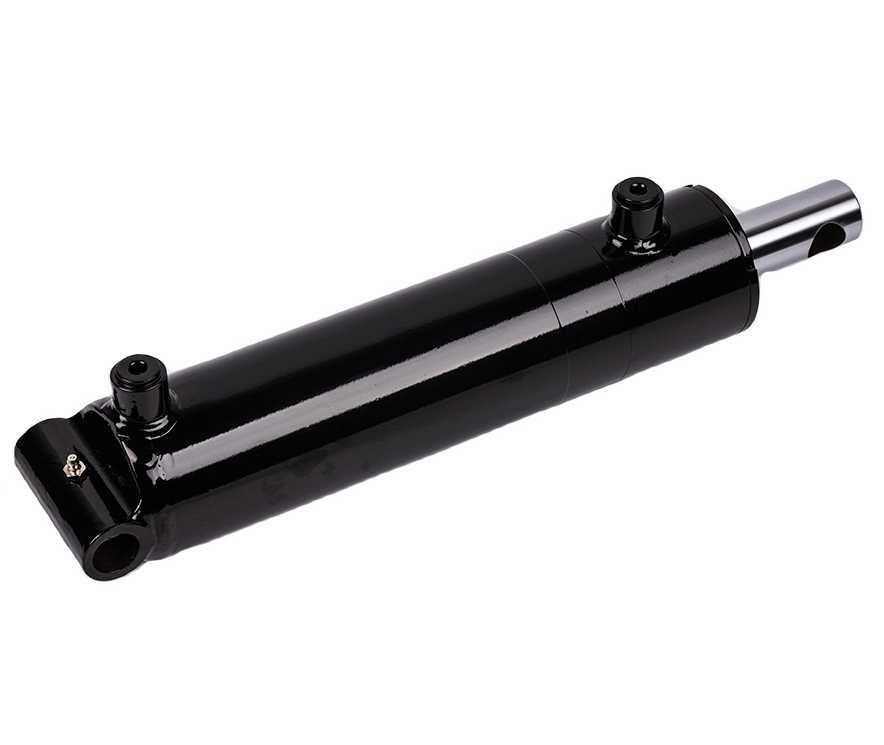

WBU Cross-Tube Welded Hydraulic Cylinder
#Welded <br>[a]https%3A%2F%2Fwww.hutchin-hydraulic.com%2Fproducts%2Fwbu-cross-tube-welded-hydraulic-cylinder.html[/a] <br>WBU Cross-Tube Welded Hydraulic Cylinder <br>The WBU Cross-tube welded hydraulic cylinders are one of HUTCHIN's the most popular items. This type of welded hydraulic cylinders, rated at 3000PSI, are mainly used in heavy duty and demanding applications. All welded hydraulic cylinders from HUTCHIN are equipped with HALLITE seals and have a warranty period of up to 2 years. <br> <br>The WBU Cross-Tube Welded Rod Cylinder is constructed using advanced welding techniques, ensuring superior strength and durability. With its compact design and efficient performance, this cylinder is capable of handling heavy loads and providing smooth and precise movement. The WBU Series Welded Hydraulic Cylinder China is the perfect choice for industries requiring reliable and efficient hydraulic systems. <br> <br>Characteristics of WBU Cross-Tube Welded Hydraulic Cylinder <br> <br>Operating pressure: 3000PSI <br> <br>Construction: Heavy duty welded construction <br> <br>Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished <br> <br>Seals: Hallite <br> <br>Ports: NPT, SAE, BSP available <br> <br>Color: Standard gloss black paint; Custom color available upon request. <br> <br>Package: Wooden crate reinforced with iron frame <br> <br>Specification of WBU Cross-Tube Welded Hydraulic Cylinder <br>Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs) <br> Retracted Extended <br>TWBU30-1504 1" 1.5x4 12" 16" 1/4NPT 3/4" 8 <br>TWBU30-1506 1.5x6 14" 20" 9 <br>TWBU30-1508 1.5x8 16" 24" 10 <br>TWBU30-1510 1.5x10 18" 28" 11 <br>TWBU30-1512 1.5x12 20" 32" 13 <br>TWBU30-1514 1.5x14 22" 36" 14 <br>TWBU30-1516 1.5x16 24" 40" 15 <br>TWBU30-1518 1.5x18 26" 44" 16 <br>TWBU30-1520 1.5x20 28" 48" 18 <br>TWBU30-1524 1.5x24 32" 56" 20 <br>TWBU30-2004 1-1/4" 2x4 12" 16" 3/8NPT 1" 12 <br>TWBU30-2006 2x6 14" 20" 13 <br>TWBU30-2008 2x8 16" 24" 15 <br>TWBU30-2010 2x10 18" 28" 17 <br>TWBU30-2012 2x12 20" 32" 19 <br>TWBU30-2014 2x14 22" 36" 20 <br>TWBU30-2016 2x16 24" 40" 22 <br>TWBU30-2018 2x18 26" 44" 24 <br>TWBU30-2020 2x20 28" 48" 25 <br>TWBU30-2024 2x24 32" 56" 29 <br>TWBU30-2028 2x28 36" 64" 32 <br>TWBU30-2030 2x30 38" 68" 34 <br>TWBU30-2032 2x32 40" 72" 36 <br>TWBU30-2036 2x36 44" 80" 39 <br>TWBU30-2040 2x40 48" 88" 42 <br>TWBU30-2048 2x48 56" 104" 49 <br>TWBU30-2504 1-1/2" 2.5x4 12" 16" 1/2NPT 1" 16 <br>TWBU30-2506 2.5x6 14" 20" 18 <br>TWBU30-2508 2.5x8 16" 24" 20 <br>TWBU30-2510 2.5x10 18" 28" 22 <br>TWBU30-2512 2.5x12 20" 32" 25 <br>TWBU30-2514 2.5x14 22" 36" 27 <br>TWBU30-2516 2.5x16 24" 40" 29 <br>TWBU30-2518 2.5x18 26" 44" 31 <br>TWBU30-2520 2.5x20 28" 48" 34 <br>TWBU30-2524 2.5x24 32" 56" 38 <br>TWBU30-2528 2.5x28 36" 64" 43 <br>TWBU30-2530 2.5x30 38" 68" 45 <br>TWBU30-2532 2.5x32 40" 72" 47 <br>TWBU30-2536 2.5x36 44" 80" 51 <br>TWBU30-2540 2.5x40 48" 88" 56 <br>TWBU30-2548 2.5x48 56" 104" 65 <br>TWBU30-3004 1-1/2" 3x4 12" 16" 1/2NPT 1" 19 <br>TWBU30-3006 3x6 14" 20" 22 <br>TWBU30-3008 3x8 16" 24" 24 <br>TWBU30-3010 3x10 18" 28" 27 <br>TWBU30-3012 3x12 20" 32" 29 <br>TWBU30-3014 3x14 22" 36" 32 <br>TWBU30-3016 3x16 24" 40" 34 <br>TWBU30-3018 3x18 26" 44" 36 <br>TWBU30-3020 3x20 28" 48" 39 <br>TWBU30-3024 3x24 32" 56" 44 <br>TWBU30-3028 3x28 36" 64" 49 <br>TWBU30-3030 3x30 38" 68" 51 <br>TWBU30-3032 3x32 40" 72" 54 <br>TWBU30-3036 3x36 44" 80" 59 <br>TWBU30-3040 3x40 48" 88" 63 <br>TWBU30-3048 3x48 56" 104" 73 <br>TWBU30-3504 1-3/4" 3.5x4 14" 18" 1/2NPT 1-1/4" 27 <br>TWBU30-3506 3.5x6 16" 22" 30 <br>TWBU30-3508 3.5x8 18" 26" 33 <br>TWBU30-3510 3.5x10 20" 30" 36 <br>TWBU30-3512 3.5x12 22" 34" 39 <br>TWBU30-3514 3.5x14 24" 38" 42 <br>TWBU30-3516 3.5x16 26" 42" 45 <br>TWBU30-3518 3.5x18 28" 46" 48 <br>TWBU30-3520 3.5x20 30" 50" 51 <br>TWBU30-3524 3.5x24 34" 58" 57 <br>TWBU30-3528 3.5x28 38" 66" 64 <br>TWBU30-3530 3.5x30 40" 70" 67 <br>TWBU30-3532 3.5x32 42" 74" 70 <br>TWBU30-3536 3.5x36 46" 82" 76 <br>TWBU30-3540 3.5x40 50" 90" 82 <br>TWBU30-3548 3.5x48 58" 106" 94 <br>TWBU30-4004 2" 4x4 14" 18" 1/2NPT 1-1/2" 34 <br>TWBU30-4006 4x6 16" 22" 38 <br>TWBU30-4008 4x8 18" 26" 41 <br>TWBU30-4010 4x10 20" 30" 45 <br>TWBU30-4012 4x12 22" 34" 49 <br>TWBU30-4014 4x14 24" 38" 52 <br>TWBU30-4016 4x16 26" 42" 56 <br>TWBU30-4018 4x18 28" 46" 60 <br>TWBU30-4020 4x20 30" 50" 63 <br>TWBU30-4024 4x24 34" 58" 71 <br>TWBU30-4028 4x28 38" 66" 78 <br>TWBU30-4030 4x30 40" 70" 82 <br>TWBU30-4032 4x32 42" 74" 85 <br>TWBU30-4036 4x36 46" 82" 93 <br>TWBU30-4040 4x40 50" 90" 100 <br>TWBU30-4048 4x48 58" 106" 115 <br>TWBU30-5004 2-1/2" 5x4 14" 18" 1/2NPT 1-3/4" 65 <br>TWBU30-5006 5x6 16" 22" 70 <br>TWBU30-5008 5x8 18" 26" 75 <br>TWBU30-5010 5x10 20" 30" 80 <br>TWBU30-5012 5x12 22" 34" 85 <br>TWBU30-5014 5x14 24" 38" 90 <br>TWBU30-5016 5x16 26" 42" 96 <br>TWBU30-5018 5x18 28" 46" 101 <br>TWBU30-5020 5x20 30" 50" 106 <br>TWBU30-5024 5x24 34" 58" 116 <br>TWBU30-5028 5x28 38" 66" 126 <br>TWBU30-5030 5x30 40" 70" 131 <br>TWBU30-5032 5x32 42" 74" 137 <br>TWBU30-5036 5x36 46" 82" 147 <br>TWBU30-5040 5x40 50" 90" 157 <br>TWBU30-5048 5x48 58" 106" 178 <br> <br>PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER A B c D E F G H ROD DIAMETER PORT <br>TWBU15- 1.50" 2.00" 8.00” 1.25" 0.76" 2.62" 2.25" 2.00" 1.06" 1.87" 1.00" 1/4NPT <br>TWBU20- 2.00" 2.50" 8.00" 1.50" 1.01" 2.25" 2.75" 2.25" 1.00" 2.06" 1.25" 3/8NPT <br>TWBU25- 2.50" 3.00" 8.00" 1.50" 1.01" 2.25" 3.25" 2.25" 0.81" 2.18" 1.50" 1/2NPT <br>TWBU30- 3.00" 3.50” 8.00" 1.50" 1.01" 2.25" 3.75" 2.25" 0.81" 2.18" 1.50" 1/2NPT <br>TWBU35- 3.50" 4.00" 10.00" 2.00" 1.26" 4.00" 4.25" 2.25" 0.81" 2.18" 1.75" 1/2NPT <br>TWBU40- 4.00" 4.50" 10.00" 2.25" 1.51" 3.75" 4.75" 2.50" 0.81" 2.18" 2.00" 1/2NPT <br>TWBU50- 5.00" 5.50" 10.00" 3.00" *1.76" 3.50" 5.75" 3.25" 1.25" 2.75" 2.50" 1/2NPT <br>FOR 5.00" BORE:2.00"PINS ARE AVAILABLE WITH REMOVABLE BUSHING <br>FOR 1.50" TO 4.00" BORE SAE PORTS ARE AVAILABLE <br>SEAL TEMPERATURE RANGE: -30°C/+100oC(-22°F/ + 212°F) <br>SEAL MAXIMUM SPEED:3 FT/SEC <br>MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI
About HUTCHINHYDRAULIC's Store
No description provided.
0.0
Customer Reviews
See what others are saying about HUTCHINHYDRAULIC's Store. We verify purchases to ensure reviews are genuine.
No reviews yet for this store.
