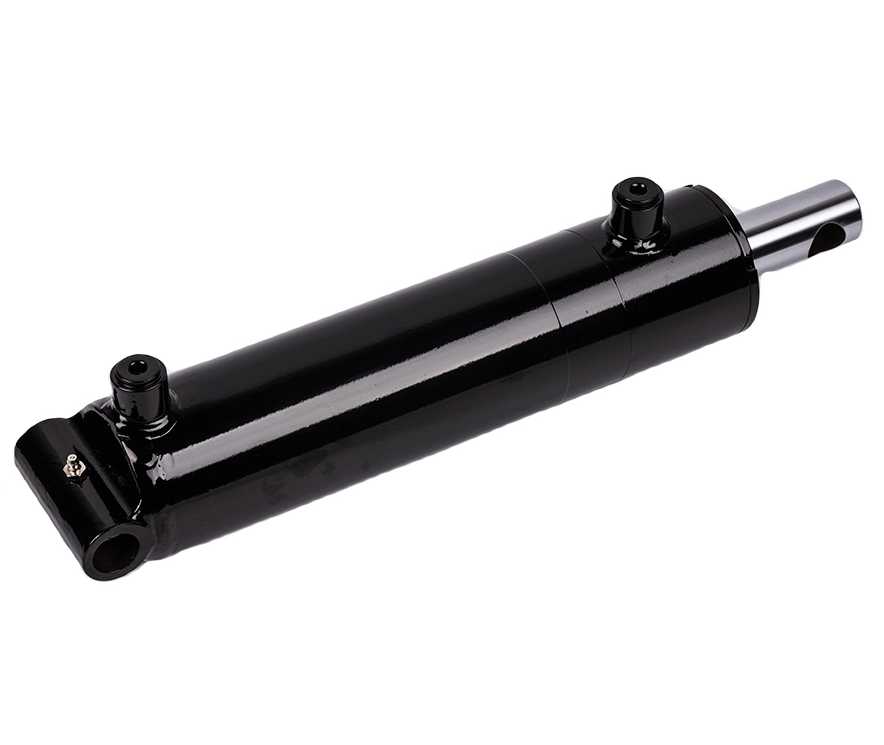

WTH Pin Eye Welded Hydraulic Cylinder
The WTH Pin Eye Welded Hydraulic Cylinder is a heavy-duty and reliable cylinder designed for double-acting applications with a pressure rating of 3000 PSI. It features a durable welded construction, a high-tensile steel rod with hard chrome plating and induction hardening for enhanced strength and durability. The honed steel tube ensures precise movement, while the piston and gland are made of ductile iron for added toughness. All seals are manufactured to US specifications, and SAE ports are available for easy installation.

The WTH welded hydraulic cylinders are suitable for medium and heavy-duty applications. These welded hydraulic cylinders are rated at 3000 PSI, have a forged cross tube base and a through-hole pin eye. Each cylinder has undergone rigorous high pressure testing and comes with a 2-year warranty.

Characteristics of WTH Pin Eye Welded Hydraulic Cylinder

Operating pressure: 3000PSI

Construction: Heavy duty welded construction

Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished.

Seals: Hallite

Ports: NPT, SAE, BSP available

Color: Standard gloss black paint; Custom color available upon request

Package: Wooden crate reinforced with iron frame

Specification of WTH Pin Eye Welded Hydraulic Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWTH30-1504 1" 1.5"x4" 11" 15" SAE#6 5/8" 7
TWTH30-1506 1.5"x6" 13" 19" 8
TWTH30-1508 1.5"x8" 15" 23" 9
TWTH30-1510 1.5"x10" 17" 27" 11
TWTH30-1512 1.5"x12" 19" 31" 12
TWTH30-1514 1.5"x14" 21" 35" 13
TWTH30-1516 1.5"x16" 23" 39" 14
TWTH30-2004 1-1/4" 2"x4" 12" 16" SAE#8 3/4" 10
TWTH30-2006 2"x6" 14" 20” 12
TWTH30-2008 2"x8" 16" 24" 14
TWTH30-2010 2"x10" 18" 28" 16
TWTH30-2012 2"x12" 20" 32" 17
TWTH30-2014 2"x14" 22" 36" 19
TWTH30-2016 2"x16" 24" 40" 21
TWTH30-2018 2"x18" 26" 44" 22
TWTH30-2020 2"x20" 28" 48" 24
TWTH30-2024 2"x24" 32" 56" 27
TWTH30-2028 2"x28" 36" 64" 31
TWTH30-2030 2"x30" 38" 68" 33
TWTH30-2032 2"x32" 40" 72" 34
TWTH30-2036 2"x36" 44" 80" 38
TWTH30-2040 2"x40" 48" 88" 41
TWTH30-2042 2"x42" 50" 92" 43
TWTH30-2048 2"x48" 56" 104" 48
TWTH30-2060 2"x60" 68" 128" 58
TWTH30-2072 2"x72" 80" 152" 68
TWTH30-2504 1-3/8" 2.5"x4" 12" 16" SAE#8 3/4" 14
TWTH30-2506 2.5"x6" 14" 20" 16
TWTH30-2508 2.5"x8" 16" 24" 18
TWTH30-2510 2.5"x10" 18" 28" 20
TWTH30-2512 2.5"x12" 20" 32" 22
TWTH30-2514 2.5"x14" 22" 36" 24
TWTH30-2516 2.5"x16" 24" 40" 26
TWTH30-2518 2.5"x18" 26" 44" 28
TWTH30-2520 2.5"x20" 28" 48" 30
TWTH30-2524 2.5"x24" 32" 56" 35
TWTH30-2528 2.5"x28" 36" 64" 39
TWTH30-2530 2.5"x30" 38" 68" 41
TWTH30-2532 2.5"x32" 40" 72" 43
TWTH30-2536 2.5"x36" 44" 80" 47
TWTH30-2540 2.5"x40" 48" 88" 51
TWTH30-2542 2.5"x42" 50" 92" 53
TWTH30-2548 2.5"x48" 56" 104" 59
TWTH30-2560 2.5"x60" 68" 128" 72
TWTH30-3004 1-1/2" 3"x4" 12" 16" SAE#8 1" 19
TWTH30-3006 3"x6" 14" 20" 21
TWTH30-3008 3"x8" 16" 24" 24
TWTH30-3010 3"x10" 18" 28" 26
TWTH30-3012 3"x12" 20" 32" 28
TWTH30-3014 3"x14" 22" 36" 31
TWTH30-3016 3"x16" 24" 40" 33
TWTH30-3018 3"x18" 26" 44" 36
TWTH30-3020 3"x20" 28" 48" 38
TWTH30-3024 3"x24" 32" 56" 43
TWTH30-3028 3"x28" 36" 64" 48
TWTH30-3030 3"x30" 38" 68" 51
TWTH30-3032 3"x32" 40" 72" 53
TWTH30-3036 3"x36" 44" 80" 58
TWTH30-3040 3"x40" 48" 88" 63
TWTH30-3042 3"x42" 50" 92" 65
TWTH30-3048 3"x48" 56" 104" 73
TWTH30-3060 3"x60" 68" 128" 87
TWTH30-3504 1-3/4" 3.5"x4" 12" 16" SAE#8 1" 24
TWTH30-3506 3.5"x6" 14" 20" 27
TWTH30-3508 3.5"x8" 16" 24" 30
TWTH30-3510 3.5"x10" 18" 28" 33
TWTH30-3512 3.5"x12" 20" 32" 36
TWTH30-3514 3.5"x14" 22" 36" 39
TWTH30-3516 3.5"x16" 24" 40" 42
TWTH30-3518 3.5"x18" 26" 44" 45
TWTH30-3520 3.5"x20" 28" 48" 48
TWTH30-3524 3.5"x24" 32" 56" 54
TWTH30-3528 3.5"x28" 36" 64" 60
TWTH30-3530 3.5"x30" 38" 68" 63
TWTH30-3532 3.5"x32" 40" 72" 66
TWTH30-3536 3.5"x36" 44" 80" 72
TWTH30-3540 3.5"x40" 48" 88" 79
TWTH30-3542 3.5"x42" 50" 92" 82
TWTH30-3548 3.5"x48" 56" 104" 91
TWTH30-3560 3.5"x60" 68" 128" 109
TWTH30-4004 2" 4"x4" 13" 17" SAE#8 1-1/4" 33
TWTH30-4006 4"x6" 15" 21" 36
TWTH30-4008 4"x8" 17" 25" 40
TWTH30-4010 4"x10" 19" 29" 44
TWTH30-4012 4"x12" 21" 33" 47
TWTH30-4014 4"x14" 23" 37" 51
TWTH30-4016 4"x16" 25" 41" 55
TWTH30-4018 4"x18" 27" 45" 58
TWTH30-4020 4"x20" 29" 49" 62
TWTH30-4024 4"x24" 33" 57" 70
TWTH30-4028 4"x28" 37" 65" 77
TWTH30-4030 4"x30" 39" 69" 81
TWTH30-4032 4"x32" 41" 73" 84
TWTH30-4036 4"x36" 45" 81" 92
TWTH30-4040 4"x40" 49" 89" 99
TWTH30-4042 4"x42" 51" 93" 103
TWTH30-4048 4"x48" 57" 105" 114
TWTH30-4060 4"x60" 69" 129" 136

PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER A B c D E F G H ROD DIAMETER PORT
TWTH15- 1.50" 2.00" 7.00" 1.25" 0.64" 2.43" 0.62" 2.00" 0.81" 1.87" 1.00" SAE#6
TWTH20- 2.00" 2.50" 8.00" 1.25" 0.76" 3.37" 0.75" 2.50" 0.81" 1.87" 1.25" SAE#8
TWTH25- 2.50" 3.00" 8.00" 1.25" 0.76" 3.12" 0.75" 3.00" 0.81" 2.06" 1.50" SAE#8
TWTH30- 3.00" 3.50" 8.00" 1.50" 1.01" 2.56" 1.00" 3.50" 0.81" 2.18" 1.50" SAE#8
TWTH35- 3.50" 4.00" 8.00" 1.50" 1.01" 2.43" 1.00" 4.00" 0.81" 2.18" 1.75" SAE#8
TWTH40- 4.00" 4.50" 9.00" 2.00" 1.26" 2.43" 1.25" 4.50" 0.81" 2.18" 2.00" SAE#8
SEAL TEMPERATURE RANGE: -30°C/+100°C(-22°F/ + 212°F)
SEAL MAXIMUM SPEED:3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI

Now the price of heavy duty hydraulic cylinders for sale is reasonable, if you have needs, please contact us.

As a professional hydraulic cylinder company, we will do our best to meet all the needs of customers.
