Marketplace

[a]https%3A%2F%2Fwww.ag-elec.com%2Fproducts%2Fsae-ev-portable-charger-type-1-mode-2.html[/a] #Mode #2 #charger EV Charging Portable Type1 Mode2 Features Mode 2 charger conforms to the provisions and requirements of SAE J1772-2012, it can charge all EV manufactured in USA, correctly and effectively with high compatibility. Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently. The head of pins using insulation design to prevent direct contact with the hand. Customer is able to install the charger indoor or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent theft. The control box layout USES the display screen function to display the current voltage, charging status and circuit board temperature in real time. Always check your safety, let you use rest assured. XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.

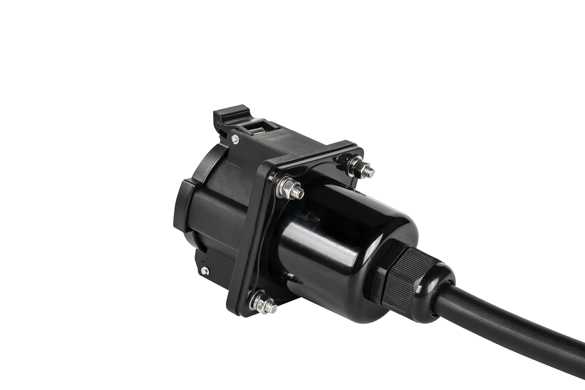

SAE EV Charging Socket

[a]https%3A%2F%2Fwww.ag-elec.com%2Fproducts%2Fsae-ev-charging-socket.html[/a] #SAE #J1772 #Socket Mechanical Properties Contact Pin: Copper alloy, silver or nickel plating Sealing gasket: rubber or silicon rubber Mechanical life: no-load plug>10000times Impact of external force: be able to afford 1m drop and 2tons vehicle run over pressure Insertion and extraction force:<100N Electrical Performance Rated current: 16A/32A/40A/50A Rated voltage: 240V Insulation resistance: >1000MΩ(DC500V) Pins temperature:<50K Withstand voltage: 2500V Contact impedance: 0.5mΩMax Environmental performance Temperature: -30℃~+50℃ SAE J1772 Socket Features Conform to the provisions and requirements of SAE J1772-2012, It can applicable to all American standard electric vehicle charging guns. Use copper alloy, silver plated surface Beautiful appearance,prevention cap can be installed on the left side, the right side or the front of it, plug conveniently. XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present.

GB/T EV DC Charging Socket

[a]https%3A%2F%2Fwww.ag-elec.com%2Fproducts%2Fgbt-ev-dc-charging-socket.html[/a] #Electric #Car #Charging #Sockets Mechanical Life lMechanical life: no-load plug>10000times lInsertion force:<140N Applied Material Shell material: thermoplastics, flame retardant grade UL94-0 Contact-tube: Copper alloy, silver-plated Environmental Performance Operating temperature: -30℃~+50℃ Electrical Performance The rated current:80A, 125A, 200A, 250A The rated voltage: 750V/1000V Insulation resistance: >2000MΩ(DC1000V) Pins temperature rise:<50K Withstand voltage: 4500V (DC+/DC-/PE) Contact impedance: 0.5mΩMax Features of GB/T Electric Car Charging Sockets Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/ T 20234.2-2015.

GB/T EV AC Charging Socket

[a]https%3A%2F%2Fwww.ag-elec.com%2Fproducts%2Fgbt-ev-ac-charging-socket.html[/a] #Electric #Vehicle #Charging Mechanical Life Mechanical life: no-load plug>10000times Insertion force:<100N Applied Material Shell material: thermoplastics, flame retardant grade UL94-0 Contact - tube: copper alloy, silver plated Environmental Performance Operating temperature: -30℃~+50℃ Electrical Performance The rated current: 10A, 16A, 32A, 63A The rated voltage: 250V/440V Insulation resistance: > 1000MΩ(DC500V) Pins temperature rise:<50K Withstand voltage: 2500V Contact impedance: 0.5mΩMax Features of GB/T Electric Vehicle Charging Socket Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/ T 20234.2-2015. Have a electromagnetic locking device (can match with hela lock), have functions of signal feedback.

EV Portable Charger TYPE2 Mode 2

[a]https%3A%2F%2Fwww.ag-elec.com%2Fproducts%2Fev-portable-charger-type-2-mode-2.html[/a] #mode #2 #charging Excellent protection performance, protection grade of IC-CPD achieved IP66 and achieved IP55 of plug (working condition) High security. It has passed all tests of TUV. There are all kinds of protective measures to ensure the safety for every user. EV Portable Charger Type 2 Mode 2 Features Conform to the provisions and requirements of IEC62752. High compatibility. It can charge all EV with Type 2 inlets, correctly and effectively. Using riveting pressure process with none screw, have a beautiful appearance. Hand-held design conform to the ergonomic principle, plug conveniently. The control box panel adopts display function, the current and voltage, the charging state and the temperature of the circuit board in real time. Excellent protection performance, protection grade of IC-CPD achieved IP66 and achieved IP55 of plug (working condition) High security. It has passed all tests of TUV. There are all kinds of protective measures to ensure the safety for every user. Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white).

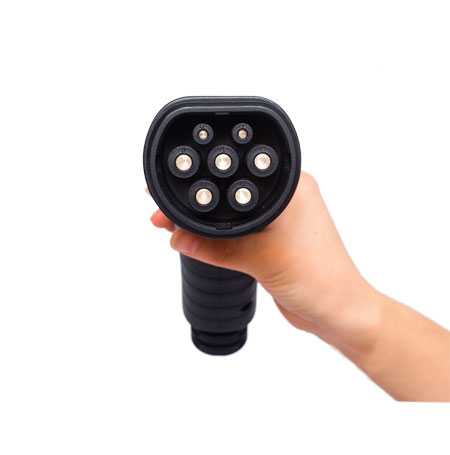

AC EV Charging Cable TYPE2

[a]https%3A%2F%2Fwww.ag-elec.com%2Fproducts%2Fev-charging-cable-type-2.html[/a] #ev #charging #systems Mechanical Properties Mechanical life: no-load plug>10000times Impact resistance: be able to afford 1m drop and 2T vehicle run over pressure Insertion and extraction force:<100N Electrical Performance Rated current: 16A/20A/32A Rated voltage: 250V/480V Insulation resistance: >1000MΩ (DC500V) Pins temperature rise:<50K Withstand voltage: 2500V Contact impedance: 0.5mΩMax Raw Material Shell material: thermoplastics, flame retardant grade UL94-0 Pin:Copper alloy, silver+top thermoplastic Environmental PerformanceTemperature: -30℃~+50℃ EV Charging Cable Type 2 Features Conforming to the provisions and requirements of IEC62196-2 2016 2-llb. The ev charge cable type 2 can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.

SAE EV Charging Adapter TYPE 1 to GB/T

[a]https%3A%2F%2Fwww.ag-elec.com%2Fproducts%2Fev-charging-adapter-type1-to-gbt.html[/a] #electric #car #adapters Ev adapters Temperature: The temperature for our electric car adapters is -30℃~+50℃. Packaging Details： TYPE1 to GB/T Adapter for charging American EV cars from electric car charger adapter with European standard, 2pcs in one carton, carton size 45*45*26cm. EV Charging Adapter TYPE1 to GB/T is ideal for transform electric car charging TYPE1 to GB/T. EV Charging Adapter TYPE1 TO GB/T Features EV Charging Adapter Type 1 to GB/T. Easily convert your home charge unit with a Type 1 plug to a GB/T plug. Enabling you to charge all vehicle makes without having to change your charge unit. If you use this charging adapter there is no need to worry about the power safe problem when you use this charging adapter. EV Charging Adapter TYPE1 TO GB/T cable acquires all safety and production certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001. Application of EV Charging Adapter TYPE1 TO GB/T Apply to Vehicle Our ev adapters can be applied for Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV.
