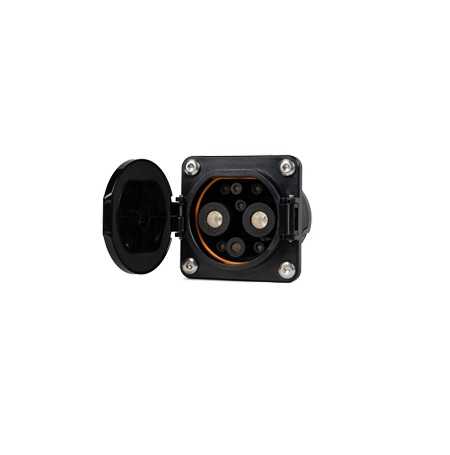

#Electric #Car #Charging #Sockets

Mechanical Life

lMechanical life: no-load plug>10000times

lInsertion force:<140N

Applied Material

Shell material: thermoplastics, flame retardant grade UL94-0

Contact-tube: Copper alloy, silver-plated

Environmental Performance

Operating temperature: -30℃~+50℃

Electrical Performance

The rated current:80A, 125A, 200A, 250A

The rated voltage: 750V/1000V

Insulation resistance: >2000MΩ(DC1000V)

Pins temperature rise:<50K

Withstand voltage: 4500V (DC+/DC-/PE)

Contact impedance: 0.5mΩMax

Features of GB/T Electric Car Charging Sockets
Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/ T 20234.2-2015.
