The DX2W-EX3 is even more compact and easier to ship by allowing the external mounting of the bundled circulator and 3-way mixing valve - offering much more flexibility than our previous models. Limited 5 5-year parts, 1 1-year labor on indoor DX2W-EX1 Module, and 1-year replacement warranty on sensors, external mixing valve, and controls.

We now have an 80-gallon capacity indoor domestic hot water heat pump available. Our model uses R-134A refrigerant, which is better known for having higher water temperatures and lower operating pressures than R-410A-based designs, which are more frequently employed by competitors. With a heating capability of 7600 BTU and an additional 1.5 kW of electric backup when needed, it can create water temperatures between 100 and 140°F. Features a magnesium anode, two inches of high-density foam insulation, and only needs 120V to run. Compared to most comparable models, our larger tank size enables more showers and baths, which should be enough for a typical family with four people.

ThermAtlantic 80 USG Stainless Steel Buffer Tank has everything you need. This tank was made specifically to be used as a storage tank or as a buffer tank with hydraulic separation. Additionally, it can be equipped with optional backup heat elements that are field-installed, which in some configurations can remove the requirement for a backup boiler. These tanks, which are made of premium 16 AWG 316L stainless steel, are intended to last at least 10 years in potable water applications and 10 to 25 years in closed-loop hydronic installations. Use of the tank is permitted up to 90°C/194°F and up to 150 PSI and requires the purchase of a separate T&P valve suited for the application.

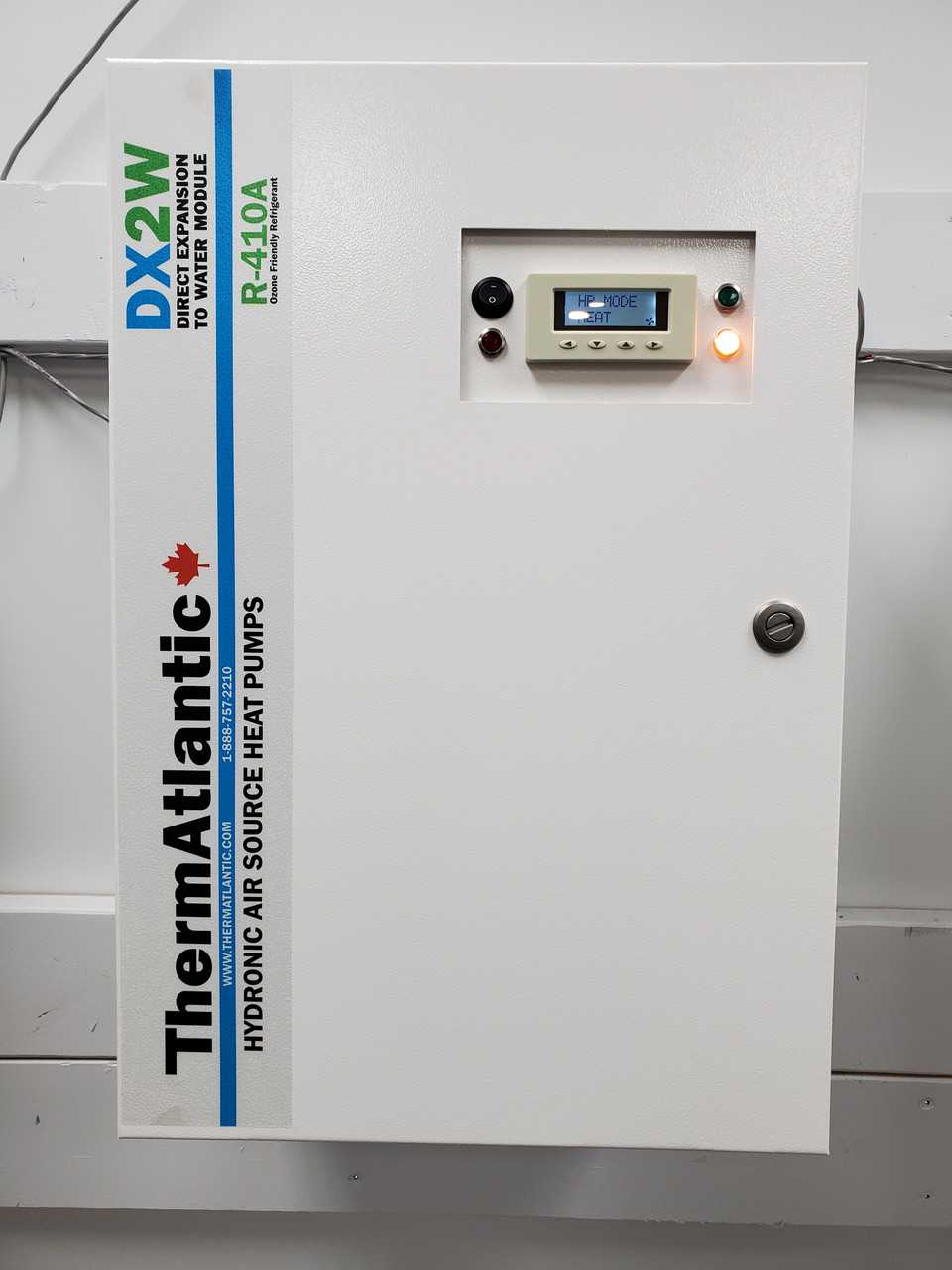

The DX2W-EX3, a premium residential air-to-water heat pump module from our innovative will upgrade your home's heating system. We have been at the forefront of HVAC technology since 2011 we introduced the first heat pump series with internet-enabled controls and monitoring. This legacy is carried on by the DX2W-EX3, which provides modern features and remarkable versatility.
