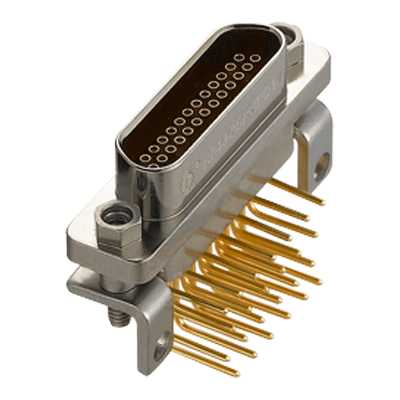

#connectors <br>[a]https%3A%2F%2Fwww.sunkye.com%2Fproducts%2Fmicro-pcb-connectors%2F[/a] <br> <br>MICRO PCB CONNECTORS <br> <br>PCB electrical connectors are mounted on the PCB and are typically used for PCB to PCB interconnection, or to transfer to or from the PCB from another source within the unit. Sunkye Military/Space grade Micro PCB connectors qualified with MIL-DTL-83513 standard, with standard jackscrews and jackpots, making it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, UAV, Radar, defense system etc. <br> <br>Description of Micro PCB Connectors <br> <br>A &quot;PCB&quot; or Printed Circuit Board connects electrical components on a conductive track or between pads on the board. Some devices hold more than one PCB and will utilise a variety of PCB to PCB connectors to build a connection between the boards. Designed to connect printed circuit boards in a variety of settings, high voltage PCB connectors securely transmit signal and power between boards. <br> <br>Performance of Miniature PCB Connectors <br>Contact Pitch * 0.050˝ (1.27 mm) <br>TEMPERATURE RANGES * <br>- STANDARD -55°C / +150°C <br>- HIGH TEMP -55°C / +200°C <br>Random vibration * Power spectrum density 0.4G2/Hz root mean square value of total acceleration 23.1G <br>Shock: 735m/s2 <br>Contact arrangements of Micro PCB Connectors <br>Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts <br>Plastic shell: 9, 15, 21,25,31,37, 51 contacts <br>Introduction of Micro PCB Connectors <br>Series * Micro D Connector <br>Terminal Mounting * PCB Type Including Straight to PCB and 90°angle to PCB type <br> <br>PCB Tail Length * Standard 3mm <br>PCB Layout * 1.27*2.54mm &amp; 2.54mm*2.54mm <br>Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating <br>The thickness of Gold plating * ≥1.27micron <br>TWIST PIN * Male contact, fitted to plug connector. <br>Socket * Female contact, fitted to socket connector (also known as socket). <br>Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide) <br>Insert * Moulded insulation housing, separating each connection. <br>Interfacial Seal * Fitted to socket connector only <br>Shell *Connector metal body plated nickel or cadmium. <br>Jackscrew *High or low profile, hexagonal socket or slotted head. <br>Jackpot* Mates with jackscrew. <br>LCP * Liquid Crystal Polymer. <br>Potting * Epoxy compound used as an encapsulant. <br> <br>Standard connector * Manufactured to the standard dimensions and specifications. <br>Special connector * A standard connector modified to meet specific requirements. <br>Custom made connector * Designed to meet specific customer requirements. <br>PCB connector * widely apply for the different industry and application. <br>Right Angle PCB connector * Board Right Angle connector and Condensed Board Right Angle connector. <br>Straight PCB connector * Board Straight connector. <br> <br>As one of PCB connector manufacturers, we will do our best to meet all the needs of customers. <br> <br>Sunkye is uniquely qualified to deliver turnkey custom solutions and Mil-Spec military connectors manufacturer for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You&#039;ll find a large selection of popular Mil-Spec military connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d sub connector, micro-d connectors, and more, available in standard or custom configurations of mil connector.

#Connector <br>[a]https%3A%2F%2Fwww.sunkye.com%2Fproducts%2Farinc-600-rackpanel-rectangular-connector.html[/a] <br>Sunkye ARINC 600 Rack&amp;Panel Rectangular Connector <br>Good performance of environment resistance <br>216 kinds of anti-misoperation styles <br>High density up to 800 signal contacts <br>Low insertion force contacts <br> <br>Brief introduction of Sunkey ARINC 600 Connector <br>Mounting panel are insulator modules for free collocation. <br>Apply to aviation and military equipment cabinet <br>Be compatible with arinc 600 backshell to provide protection against harsh operating conditions. <br>Accord to ARINC 60O specification <br>Contacts: signal, power, coaxial, tripe coaxial, optical fiber 2 pin differential, 4 pin differential <br>Standard: ARINC 600 standard <br>Specification of Sunkey ARINC Connector <br>1. Material and surface treatment <br>ltem Material Plating <br>Shell Aluminum alloy —— <br>insulator PPS plastic —— <br>Contact Copper alloy Gold-plated <br>Encapsulant &amp; sealed ring Silicon rubber —— <br> <br>2. Mechanical properties <br>Durability: 500 times <br>Vibrations: 10Hz~ 2000Hz, 196 m/s² <br>Shock: 490 m/s² <br>Insertion and extraction force: <br> type 1 connector: ≤120 N; <br> type 2 connector:≤267 N; <br> type 3 connector:≤467 N;

#military <br>[a]https%3A%2F%2Fwww.sunkye.com%2Fproducts%2F[/a] <br> <br>SUNKYE TYPES OF MIL SPEC CONNECTORS <br>Mil spec connectors, also called military grade connectors/mil grade connectors or military style connectors or military standard connectors or military power connectors, have been developed to satisfy the market requirements for ultra-tiny size, high performance, great quality, and top qualified customized connector. Sunkye mil grade connector is widely applied for the board to board, system to system, application to application, equipment to equipment. Specially designed for extreme environments like the defense industry, but our military connector types can also be used in a variety of commercial tasks. Our automotive terminal connectors can withstand the harsh conditions of the road and off-road transportation. The combination of Sunkye&#039;s mil grade connectors provides reliable solutions for improving the connectivity of critical systems. <br> <br>MIL-DTL-83513 Micro D Connectors <br>The Sunkye family of TwistPin equipped Micro-D subminiature mil grade connectors to offer outstanding mating performance, durability, and minimal contact resistance. Sunkye Micro D type mil spec connectors feature high-density micro TwistPin contacts set on 1.27mm centers in arrangements from 9 to 130 contacts. They are available with insulated and uninsulated wire, PCB, solder cup and flex terminations and are supplied as MIL-DTL-83513 or commercial variations. The standards of our military power connectors include 83513 Micro-D and COTS connectors provide a reliable solution for all high-performance interconnect requirements including high temperature and hermetic applications. <br> <br>MIL-DTL-32139 Nano D Connectors <br>The MIL-DTL-83513 and MIL-DTL-32139 specifications define the minimum acceptable performance levels for Micro-D and Nano miniature connectors. While the specs are rigid in their performance benchmarks, manufacturers are given considerable leeway when it comes to contact design, crimp fabrication, contact finish and materialselection. Stamped and formed contacts, for example, are widely used in Micro-d connectors due to their low cost and ease of manufacture. But independent testing clearly shows that Twist Pin style contacts provide superior performance in such areas as high-temperature tolerance, contact retention and crimp strength. If you have already made the decision to use either a Micro-D or Nano mil grade connector because its ruggedized performance outweighs the potential cost-savings realized in a lesser-caliber connector, then you owe it to yourself to understand the very real differences between stamped pins and the Sunkye Twist Pin Contact System. <br> <br>Twist Pin Connectors <br>Mil grade connectors with reduced pin spacing (less than 0.381mm) can save product design engineers much-needed PCB real estate. Sunkye answers the call with a series of Micro D (1.27*1.1mm) &amp; Nano D (0.635*1.02mm) metric sockets and pins headers available in vertical and right angle configurations, with SMT and through-hole termination. <br> <br>All Sunkye connectors are MIL-DTL compliant and are assembled with precision machined Becu twist pins assembled into high-temperature insulators. Through the combination of right angle pin headers plugged into vertical sockets, customers can create perpendicular mate configurations. <br> <br>Explore Our Industry &amp; Solutions <br>Automotive Electrical Connectors <br>Sunkye automotive connector allows customers to customize the configuration, make it easy to assemble, and further enhance flexibility, the ability to integrate local cables and components, and the ability to adapt to harsh environments. <br> <br>Aerospace Electrical Connectors <br>Connectors are almost everywhere in aerospace applications. Sunkye&#039;s connector uses advanced computer modeling to ensure optimal performance and then designs products that are easier to use, more reliable, and lower in actual cost. <br> <br>Military/Defense Connectors <br>The performance of products in the signal intensive environment depends on their phase stability. Sunkye&#039;s engineers have professional knowledge and rich experience to provide you with better solutions. Come to choose our high quality and professionalism. <br> <br>Aircraft Connector/UAV Connector <br>The UAV connector is an important basic component. As a bridge to transmit signal and power, it must pass strict tests before it can be used in aircraft / UAV applications. <br> <br>Oil And Gas And Marine Connectors <br>Sunkye produces mil-spec connectors focused on oil, gas, and marine applications that can adapt to the most demanding environments, including extreme temperatures, vibrations, and shocks. <br> <br>Medical Grade Connectors <br>Electronic systems in medical devices and probes rely on sensor signals for precise control, diagnosis and treatment. Our connectors are designed and manufactured to strict standards to meet the stringent requirements of medical applications. <br> <br>Custom Connectors <br>Sunkye&#039;s customized connector can be designed according to different needs, suitable for different special application environments, and improve industrial differentiation and product competitiveness. <br> <br>Automation and Control Connectors <br>Coming soon.
