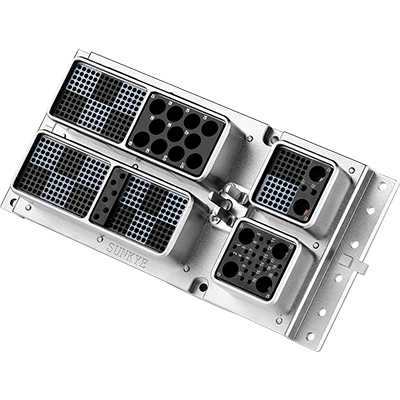

Sunkye ARINC 600 Rack&Panel Rectangular Connector
Good performance of environment resistance
216 kinds of anti-misoperation styles
High density up to 800 signal contacts
Low insertion force contacts

Brief introduction of Sunkey ARINC 600 Connector
Mounting panel are insulator modules for free collocation.
Apply to aviation and military equipment cabinet
Be compatible with arinc 600 backshell to provide protection against harsh operating conditions.
Accord to ARINC 60O specification
Contacts: signal, power, coaxial, tripe coaxial, optical fiber 2 pin differential, 4 pin differential
Standard: ARINC 600 standard
Specification of Sunkey ARINC Connector
1. Material and surface treatment
ltem Material Plating
Shell Aluminum alloy ——
insulator PPS plastic ——
Contact Copper alloy Gold-plated
Encapsulant & sealed ring Silicon rubber ——

2. Mechanical properties
Durability: 500 times
Vibrations: 10Hz~ 2000Hz, 196 m/s²
Shock: 490 m/s²
Insertion and extraction force:
type 1 connector: ≤120 N;
type 2 connector:≤267 N;
type 3 connector:≤467 N;
