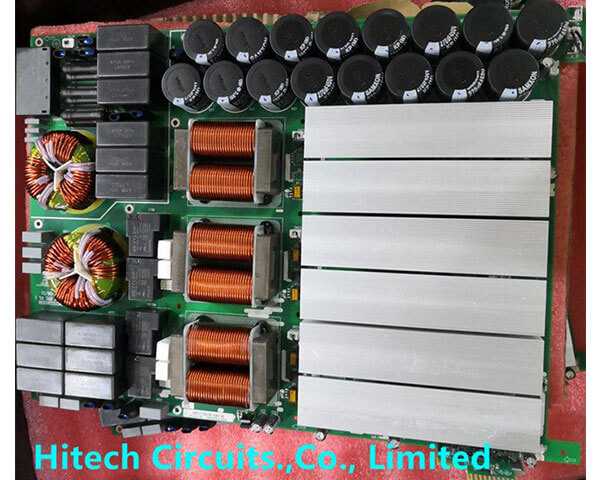

PCB assembly, electronics manufacturing, electronics assembly manufacturing service company in China (hitechcircuits.com) <br> <br>As leading one-stop PCB Assembly services provider in China, Hitech Group offers high quality, cost effective and express PCB board products and provides PCB manufacturing, electronics assembly manufacturing, components sourcing, Box build assembly and PCBA testing services for our customers. <br> <br>For full turn-key circuit board assembly, we take care of the entire process, including Printed Circuit Boards fabrication, components sourcing, order tracking, continuous monitoring of quality and final PCB board assembly. Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us. <br>[a]https%3A%2F%2Fhitechcircuits.com%2Fpcb-assembly%2F[/a]

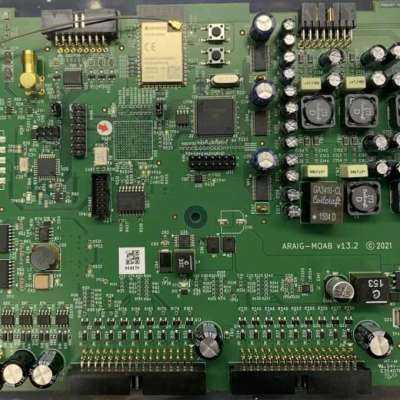

What is PCB Assembly? <br> <br>Pcb Assembly Services | Pcb Manufacturing Services (hitechpcba.com) <br> <br>It’s the step in the manufacturing process in which you populate a blank board with the electronic components needed to make it into a functional printed circuit board. It’s these components that make a board into the circuit that enables an electronic product to function. PCB assembly typically takes place via one of two processes: <br> <br>1. Surface-mount technology <br> <br>SMT: SMT stands for “Surface Mount Technology“.  The SMT components are very small sizes and comes in various packages like 0201, 0402, 0603, 1608 packages for resistors and capacitors. Similarly for Integrated circuits ICs we have SOIC, TSSOP, QFP and BGA. <br> <br>The SMT components assembly is very difficult for human hands and can be time taking process so it is mostly done by automated pick and place machine. <br> <br>2. Through-hole manufacturing <br> <br>THT: THT stands for “Through hole Technology”. The components with leads and wires, like resistors, capacitors, inductors, PDIP ICs, transformers, transistors, IGBTs, MOSFETS are example. <br> <br>The component has to be inserted on one side of PCB and pulled by leg on other side and cut the leg and solder it. The THT components assembly is usually done by hand soldering and is relatively easy. <br> <br>Printed Circuit Board AssemblyTechniques <br> <br>There are only two common PCBA techniques available for use by a PCB designer. The methods are: <br> <br>**1. Automated PCB Assembly Techniques <br>** <br> <br>Generally, this technique employs the use of state of the art machines, which are fully automatic. For example, the surface mount components are worth positioning with the aid of an automated pick and place machine. <br> <br>Again, reflow soldering is commonly for surface mount components usually done in a reflow oven. An automated solder stencil is also used to apply the solder paste on the PCB. <br> <br>Finally, high tech inspection machines are used to confirm and check the quality of the PCBA. Some of which include: Automated optical inspection machine (AOI), X-ray inspection machines, etc. <br> <br>Above all, due to the precise monitoring, control of soldering, no human input and versatile machines. <br> <br>This technique ensures utmost efficiency, output consistencies, and limits defects. <br> <br>2. Manual PCB Assembly Techniques <br> <br>This method is favorite for use with through-hole parts, which needs manual placement on the board. Besides, with these through-hole parts, it’s advisable you use wave soldering. Note that in the through- hole assembly process, you need to place the components and electronics on the PCB. <br> <br>After that, you use wave soldering to solder the leads. Typically, you will need an individual to insert a component into a marked PTH. Once done, transfer the PCB to the next station where the next person will be on standby tasked with fixing another part.

What is Rogers PCB? <br> <br>Rogers PCB is a type of printed circuit board (PCB) material made from a combination of epoxy and ceramic. It is well known for its high dielectric constant, low loss tangent, and high thermal conductivity, making it an ideal material for high-frequency applications. It is used in a wide range of electronics, such as: <br> <br>5G Station <br> <br>Cellular Base Station Antennas and Power Amplifiers <br> <br>[a]https%3A%2F%2Fwww.hitechpcba.com%2Frogers-pcb[/a]

Ceramic PCB Manufacturing &amp; Assembly – One-stop service The ceramic substrate (ceramic PC refers to a special process board in which a copper foil is directly bonded to a surface of an alumina (Al2O3 ) or aluminum nitride (AlN) ceramic substrate (single or double-sided) at a high temperature. The ultra-thin composite substrate produced has excellent electrical insulation properties, high thermal conductivity, excellent solderability, and high adhesion strength, and can etch various patterns like a PCB board, and has a large current carrying current ability.

Hitechpcba is a wоrld-lеаding PCB Manufacturing &amp; PCB Assembly company with more than 20 years experience in the electronics manufacturing industry. We focus on PCB Design, PCB Layout, Circuit board fabrication, Turnkey PCB assembly, and electronic parts sourcing services. <br>With mature supply chain, talented design team, advanced manufacturing techniques and quality control systems, Hitechpcba is able to provide one-stop electronics manufacturing services and solution for our customers to help them stand out in the marketplace. <br> <br>We offer a full range of Electronic manufacturing services.

PCB prototyping is the experimentation pilot stage of the product which is to be mass produced at a later stage. This is more of an experiment which is done after the initial discussions and the design. This offers a pre-production analysis of the boards that are to be manufactured, reducing the possible number of errors in the PCB design. PCB prototypes help the manufacturer analyze the strengths as well as weak areas of their proposed circuit boards. Prototypes also serve as a reference point for future versions of the same product. At Hitechpcba, we handle PCB prototype assembly in quantities from one to hundred printed circuit boards. <br> <br>We have acquired capabilities that enable us to serve our clients better. All these years, we have worked on many complex prototype PCB assembly projects, and we believe the following capabilities have helped us serve our clients better. <br> <br>Prototype PCB Assembly Services: We specialize in the following prototype printed circuit board assembly services. <br> <br>SMT: We can provide single-sided and double-sided surface mount PCB assemblies in different specifications. <br> <br>Plated Through Hole: We offer plated through hole assembly with selective soldering. <br> <br>[a]https%3A%2F%2Fwww.hitechpcba.com%2Fpcb-assembly[/a]
