ACREL DJSF1352-RN DIN RAIL DC ENERGY METER WITH RS485 DJSF1352 RN DIN rail DC energy meter with rs485 adopts liquid crystal display and has RS485 function to exchange data with microcomputer. DJSF1352-RN DIN rail DC energy meter with rs485 is suitable for power measurement and energy metering of DC signal equipment such as charging pile DC metering, batteries, solar panels, etc. It can also be used in modern supply and distribution DC systems such as industrial and mining enterprises, civil buildings, and building automation. Specification of DJSF1352-RN DIN Rail DC Energy Meter with rs485 Technical parameters Indicators Input Nominal value Voltage input range Current input DC 0-1000V Shunt：0-75mV； See the physical wiring diagram Hall sensor：0-20mA、4-20mA、0-5V，0-10V, and so on. Overload 1.2 times rated (continuous); 2 times rated/1 second; Power consumption Voltage: ≤0.2VA, current ≤0.1VA Accuracy class Class 1 Function Display 8-bit segment LCD screen (LCD) Communication Interface RS485, infrared Communication protocol Modbus-RTU， DL/T 645-2007 Switch Switch output 2 Relay outputs, 2A/30VDC or 2A/250VA Switch input 2 dry contact inputs Pulse output A second pulse output, an energy pulse output See the SYS->PLUS display in the meter menu setting For example, The meter displays 100, which is 100imp/kWH Power Supply Voltage range AC/DC 85-265V or DC24V(±10%) or DC48V(±10%) Power consumption ≤ 3W Power frequency withstands voltage Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switch input 2kV/1min Insulation resistance ≥ 40M Ω Average barrier-free working hours ≥50000h Environment Temperature Normal operating temperature: -25 °C ~ +65 °C; Limit working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃～+80℃ Humidity ≤93%RH, no condensation, no corrosive gas Altitude ≤2500m Features of DJSF1352-RN DIN Rail DC Energy Meter with rs485 01 DJSF1352-RN DIN Rail DC Energy Meter with rs485 can sample, measure and monitor electric energy parameters, and can communicate with inverters or energy management systems (EMS), and realize functions such as anti-backflow, power generation adjustment, and battery charge and discharge according to real-time power and accumulated electric energy; 02 DJSF1352-RN DIN Rail DC Energy Meter with rs485 adopts standard DIN35mm guide rail installation, which has the advantages of small size, convenient installation, and easy networking; 03 DJSF1352-RN DIN Rail DC Energy Meter with rs485 has a two-way metering function to realize household distributed photovoltaic energy management; 04 DJSF1352-RN DIN Rail DC Energy Meter with rs485 can be applied to new energy power generation systems such as photovoltaic grid-connected systems, micro-inverter systems, energy storage systems, and AC coupling systems. #djsf1352#rn [a]https%3A%2F%2Fwww.acrel-microgrid.com.tr%2Fproducts%2Fdjsf1352-rn-din-rail-dc-energy-meter%2F[/a]

ACREL ATE200 HIGH VOLTAGE SWITCHGEAR TEMPERATURE AND HUMIDITY MEASURING

ACREL ATE200 HIGH VOLTAGE SWITCHGEAR TEMPERATURE AND HUMIDITY MEASURING ATE200 high voltage thermal monitoring sensor is a belt switchgear temperature sensor that is capable of individual installation within high-voltage cabinets and low-voltage drawer cabinets. This switchgear temperature control sensor is mainly used to monitor the temperature of electrical connection points such as cable joints and circuit breaker contacts in high and low-voltage switch cabinets, to prevent the overheating of the contact resistance caused by oxidation, looseness, dust, and other factors during the operation process from becoming a safety hazard, which can improve equipment safety protection, timely, continuously and accurately reflect the operating status of the equipment, and reduce the accident rate of the equipment. Contact us now for more info about ATE200 industrial temperature monitoring sensor and our other wireless temperature monitoring device! Specification of ATE200 High Voltage Switchgear Temperature And Humidity Measuring Specification Model Specification Installation ATE200M 35*35*17mm Strap Binding -50℃~+125℃ Accuracy: ±1℃ Lifetime>5 years 470MHz Open space distance: 150m ATE200P 62.4*32.4*16mm, φ13.5mm Outdoor Strap L=330mm -50℃~+125℃ Accuracy: ±0.5℃ Lifetime>5 years 470MHz Open space distance: 150m Features of ATE200 High Voltage Switchgear Temperature And Humidity Measuring 01 ATE200 switchgear wireless temperature sensor wifi can be directly installed on the heating node in the 0.4-35kV power distribution cabinet. The temperature measurement data is sent to the transceiver through radio frequency technology, and then the transceiver sends the data to the temperature measurement terminal for display; 02 It is fixed at the temperature measuring contact with a watch strap, which is generally more suitable for temperature measurement of circuit breaker contacts, busbars, etc.; 03 Powered by batteries, the transmission distance of this switchgear wireless remote temperature monitor is 10 meters in open areas, and the service life is 5 years. #busbar#current#sensor [a]https%3A%2F%2Fwww.acrel-microgrid.com.tr%2Fproducts%2Fate200-high-voltage-switchgear-temperature-and-humidity-measuring%2F[/a]

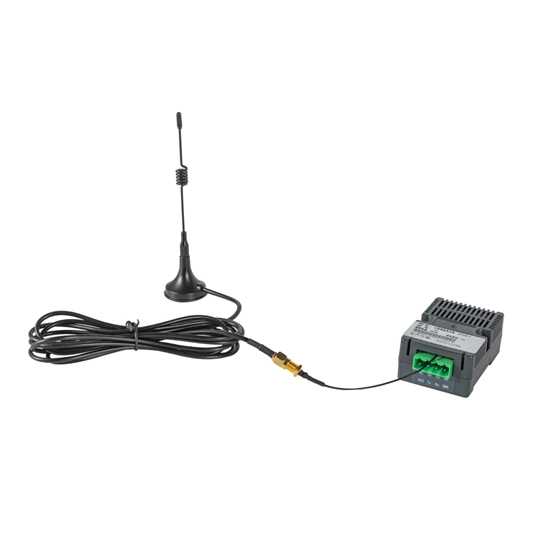

ACREL ATC450-C WIRELESS TEMPERATURE RECEIVER OF CIRCUIT BREAKER

ACREL ATC450-C WIRELESS TEMPERATURE RECEIVER OF CIRCUIT BREAKER With a power source of DC24V and consumption of ≤1W, this transceiver can handle up to 60 points and has a resolution of 0.1°C. Communication is via RS485 with a MODBUS-RTU protocol, and it supports baud rates of 2400, 4800, 9600, and 19200 bps. Perfect for monitoring in environments with temperatures ranging from -20°C to +55°C and humidity of ≤95%. Trust Acrel for all your wireless thermocouple transmitter receiver needs. Specification of ATC450-C Wireless Temperature Transmitter and Receiver Of Circuit Breaker Technical Parameter Item Features Transceiver Power Source DC24V ATC450-C Power Consumption ≤1W points ≤60 Resolution 0.1℃ Communication RS485 Protocol MODBUS-RTU Baud rate (bps) 2400, 4800, 9600, 19200 Environment Temperature: -20 ℃～+55 ℃; Humidity: ≤95% #wireless#thermocouple#transmitter#receiver [a]https%3A%2F%2Fwww.acrel-microgrid.com.tr%2Fproducts%2Fatc450-c-wireless-temperature-receiver-of-circuit-breaker%2F[/a]

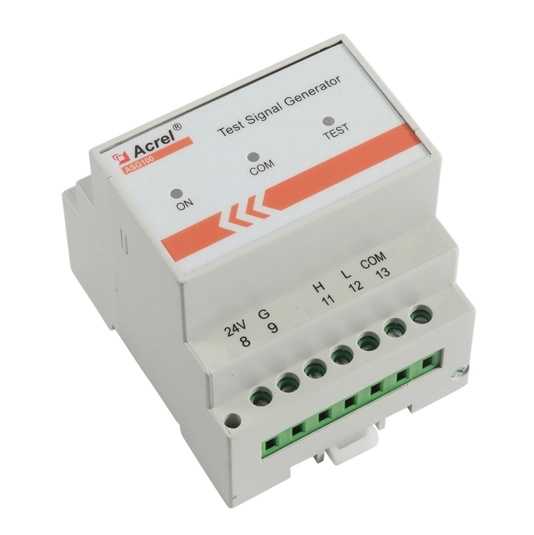

ACREL ASG100 SIGNAL GENERATOR

[a]https%3A%2F%2Fwww.acrel-microgrid.com.tr%2Fproducts%2Fasg100-signal-generator%2F[/a] #ASG100 ASG100 signal generator from Acrel features a DC24V auxiliary power, with less than 2VA power consumption. It also includes location signals with a voltage below 25V and a current below 1mA. With fault location capabilities for up to four maximum channels and a response time of less than 2s, this signal generator is excellent for monitoring systems and includes communication via CAN bus with custom protocols. Perfect for your 24V signal generator needs.

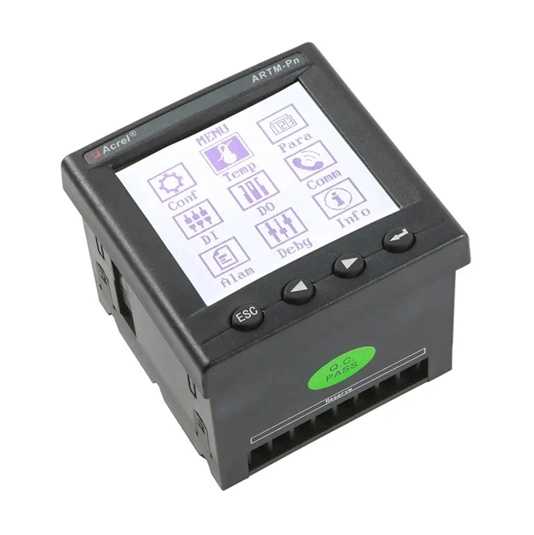

ACREL ARTM-PN WIRELESS TEMPERATURE MONITOR FOR BUSBAR

[a]https%3A%2F%2Fwww.acrel-microgrid.com.tr%2Fproducts%2Fartm-pn-wireless-temperature-monitor-for-busbar%2F[/a] #busbar #temperature #sensor ARTM-PN wireless bus bar temperature sensor is mainly used to monitor the temperature of electrical connection points such as cable joints and circuit breaker contacts in high and low voltage switch cabinets, so as to prevent the contact resistance from being too large due to oxidation, looseness, dust and other factors during operation to cause heat generation, which becomes a safety hazard. This busbar temperature sensor can improve equipment safety assurance, and timely, continuously and accurately reflect the equipment operation status and reduce the equipment accident rate. Features of ARTM-Pn Wireless Temperature Monitor For Busbar 01 Real-time: 365×24 hours of continuous online monitoring throughout the year, ensuring that high-voltage equipment is under monitoring at all times, and the safety is not affected by human factors, minimizing the chance of accidents caused by personnel negligence. 02 Safety: It will not be disturbed by strong electric and magnetic fields. 03 Compatibility: The busbar thermal monitoring sensor comes with an Ethernet port to realize data sharing and simple management. 04 Accuracy: Digital measurement technology ensures the accuracy and repeatability of temperature measurement, and also has the characteristics of fast response speed, which can meet the needs of power system safety. 05 Flexibility: Users can flexibly and conveniently set various parameters and control quantities according to their own needs, and can get a satisfactory and rich user interface. 06 Stability: The temperature sensor itself is a passive device, which is only sensitive to temperature and is not affected by vibration, shock, displacement, humidity and other factors. The system is stable and reliable. 07 Long life: The components used in the system are all originally used in the communication system. The service life of the components in the communication system except the battery is not less than 10 years. It is conservatively estimated that the system can guarantee reliable operation for 8 years. 08 Expansivity: Due to the convenient installation of sensors and displays, temperature measurement points can be flexibly added according to the needs of customers and projects.

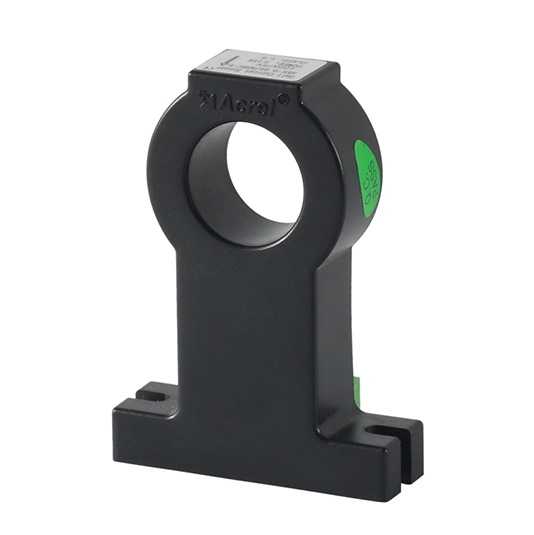

ACREL AHKC-E SERIES HALL DC VOLTAGE TRANSDUCER

[a]https%3A%2F%2Fwww.acrel-microgrid.com.tr%2Fproducts%2Fahkc-e-series-hall-dc-voltage-transducer%2F[/a] #AHKC The primary and secondary grades of the AHKC-E series current sensor, which can measure direct current, alternating current, and pulse current, are insulated from one another.DC, AC, and pulse currents can be measured using the insulated primary and secondary of the AHKC-E series current sensor.
