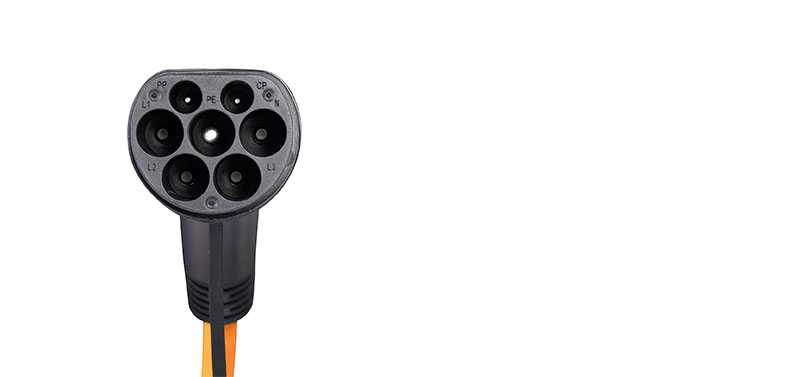

#ac #charging #connector <br>GB/T Charging Connector is widely used in the AC charging system of electric vehicles and conforms to GB/T20234 regulations and requirements. It is compatible with multi-type brand vehicles, which is able to ensure safe and continuous charging, and real-time monitoring of temperature control. <br> <br>Features of Aupins GB/T Charging Connector  <br>Aupins GB/T charging connector conforms to &quot;Connector Device for Electric Vehicle Conductive Charging&quot; GB/T20234.1, GB/T20234.2. <br>The end of the pin is designed with safety insulation to prevent direct human contact <br>The GB/T plug adopts double color coating technology, customized color accepted.  <br>This GBT charger can prevent overheating safety hazards effectively, and the protection level IP55 (working condition) meets the different situations. <br> <br>Applications of Gb/T Charging Connector <br>The GB/T AC connector can effectively prevent overheating safety hazards effectively, and the protection level IP55 (working condition) meets different situations. <br> <br>Specifications of Gb/T Charging Connector <br>Product code AP-GBAC <br>Rated current 10A, 16A, 32A, 63A <br>Rated voltage 250V, 440V <br>Insulation resistance &gt;1000MΩ <br>Withstand Voltage 2500V <br>Contact resistance 0.5mΩ Max <br> <br>If you want to know more kinds of pins and connectors, please visit our website. <br> <br> <br> <br> <br> <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fgb-t-charging-connector%2F[/a]

#ac #charging #connector <br> <br>The charging plug in another word is the charging interface of the electric vehicle. This EV charging connector is classified into DC charging and AC charging interface according to the current and voltage. And the difference between AC charging connector and DC charging connector is shown below. <br> <br>EV Charging Connector Types <br>AC Charging Connector <br>The usage of AC charging plug is to supply power to the vehicle charger with low-speed charging. The environment of use is usually at home, work places and destination. <br> <br>DC Charging Connector <br>DC charging plug is used to charge the battery with fast charging technology. The feature of DC charging plug is stable, high voltage, high current, and it comes with temperature protection device. <br> <br>DC Vehicle Charging Socket <br>DC combo vehicle charging socket is possible to charge all types of electric vehicles from low-power to high-power charging. Vehicle charging sockets were originally developed for car manufacturers and are already used in the new generation of electric vehicles. The temperature sensor model can be adjusted according to customer needs. <br> <br>CHAdeMO connector <br>Our company devoted to the development of CHA deMO charging plug. Passed CE certification, wide cable range (6~70mm square), suitable for each current segment 30~200A use requirements. We can accept all kinds of non-standard customized requirements. <br> <br>First of all, charging plugs are divided into DC charging plugs and AC charging plugs. DC charging plugs are also high-current, high-power charging plugs, which are generally equipped with fast charging stations for new energy vehicles. Households are generally AC charging piles, or portable charging plugs. <br> <br>Mainly divided into three types, type1, type2, GB/T.  <br>①Type1: SAE J1772 interfac <br>The United States, South Korea, Japan and other some countries mainly use Type 1 charging cables, including portable charging cables carried by AC charging piles along with the car. Type1 provides mainly two charging voltages of 120V (Level1) and 240V (Level2). <br>②Type2: IEC 62196 interface <br>Type2 is the new energy vehicle interface standard in Europe, and the rated voltage is generally 230V. Looking at the pictures, it may look a bit like the national standard, but it is easy to distinguish. The Type2 which is the opposite of the GBT.(Female to male） <br>③GB/T: GB/T20234  interface <br>From January 1, 2016, China stipulates that as long as the charging interface of all brands of new energy vehicles produced in China must meet the standard GB/T20234. The rated voltage of the national standard AC charger is generally 220V household voltage. <br> <br>DC charging connector  <br>DC charging plugs generally correspond to AC chargingplugs, and each region has its own standards. Japan&#039;s DC charging plugs interface is CHAdeMO. Since the rated voltage of DC charging piles is generally above 400V, and the current reaches hundreds of amperes, so generally speaking, they are not for household use, and only fast charging stations such as shopping malls and gas stations can be used. <br> <br>How does an EV Charging Connector Work? <br>Household AC slow charging is based on the current residential power supply system (using single-phase 220V or three-phase 480V) and uses a charger of 5-22kW power range. OBC will convert  household AC to DC so as to charge the battery of the car. <br> <br>Differences Between Type 1 And Type 2 Ev Charging Connectors <br>The difference in appearance is the number of jacks. The American standard AC is usually five holes, and the European standard is seven holes. <br>From the interface point of view, the so-called &quot;Type1&quot; refers to the SAE J1772 AC charging standard. The &quot;type2&quot; refers to the Mennekes Type 2 interface adopted in Europe. The most obvious difference in shape between these two standards is the number of &quot;jacks&quot;.&quot;Jack&quot; is the +&amp;- of the charging interface, Each &quot;jack&quot; does its own job. But it does not mean that each of them is responsible for the transmission of current. SAE J1772 is just a general term. It includes 4 subdivision standards and 3 different charging interface shapes. Among them, the AC charging standard and the DC charging standard are respectively divided into two specifications, Level 1 and Level 2, and these two specifications are mainly different in output power. Another is called the Type 2 charging standard, which corresponds to theType 1. <br> <br>EV Charging Connector Advantages <br>Conform to the global regulation standard, to ensure the safety connection between charging plug and station. <br>Meet the ergonomic design, friendly to users <br>Apply rubber material with better friction. <br> <br>If you want to know more kinds of contact pins, please visit our website. <br> <br> <br> <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fev-charging-connector%2F[/a]

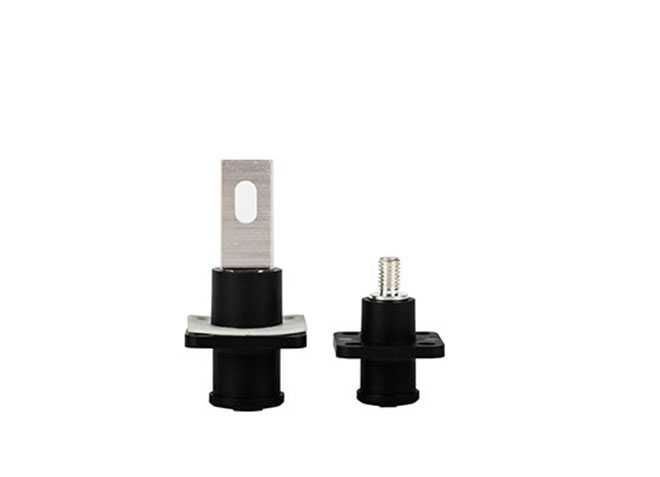

#gbt #charger <br>The connector for energy storage module equipment developed by AP is able to realize the positive and negative connections and 360° rotating connection. And the products comply with TUV/UL, and RoHS certification and the quality is stable and reliable. This industrial energy storage connector can bring you a better sense of use. <br> <br>Energy Storage Connector Types <br>Energy storage connectors are essential for linking energy storage systems to power grids or devices. Common types include <br> <br>energy storage socket connectors, busbars, and plug connectors. They ensure efficient energy transfer and enable seamless integration of energy storage solutions into various applications. <br> <br>Energy Storage Socket Connector <br>The production process of AP energy storage connector socket is precise, and the appropriate socket can be selected according to the required current, which is designed in accordance with the UL4128 standard. <br> <br>Energy Storage Plug Connector <br>The plug is able to realize 360° rotation and blind-mating. It is not easy to break with a high safety function during working. <br> <br>SS1 Series connector for Energy Storage Connector <br>AP SS1 series new energy connector is used for positive and negative high voltage connection between battery packs of chemical energy storage system. AP has leading crimping technology and equipme... <br> <br>SS2 Series Connector for Energy Storage Connector <br>SS2 series copper bar energy storage connector is able to reach quick installation and quick replacement. This copper bar connector can be provided both waterproof and non-waterproof for customers to ... <br> <br>Energy Storage Connector Working Principle/Display <br>Energy storage connectors have usually two usage: <br>Mounts directly on the instrument panel or printed circuit board <br>Connect an RF coaxial cable for electrical signal transmission <br> <br>Several Structures in Energy Storage Connector Cables and Access Methods <br>Both the inner and outer conductors are crimped <br>he inner conductor is crimped and the outer conductor is welded <br>The inner conductor is welded and the outer conductor is crimped <br>The inner conductor is welded and the outer conductor is threaded <br>The inner conductor adopts crimping, the outer conductor adopts thread compression, etc <br> <br>Aupins Battery Storage Connector Advantages <br>Socket anti-electric shock design &amp; Anti-mis-insertion connection: Effectively prevent customers from being electrocuted during assembly and ensure worker safety <br>High security: With IP67 waterproof level and it is convenient for customers to use in harsh environments <br>360 degree rotation: Plugs and sockets are able to rotated 360 degrees to meet the different wiring needs of customers <br>Flexible &amp; fast installation: The newest installation technology applied to AP energy storage connector. <br> <br> <br> <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fenergy-storage-connector%2F[/a]

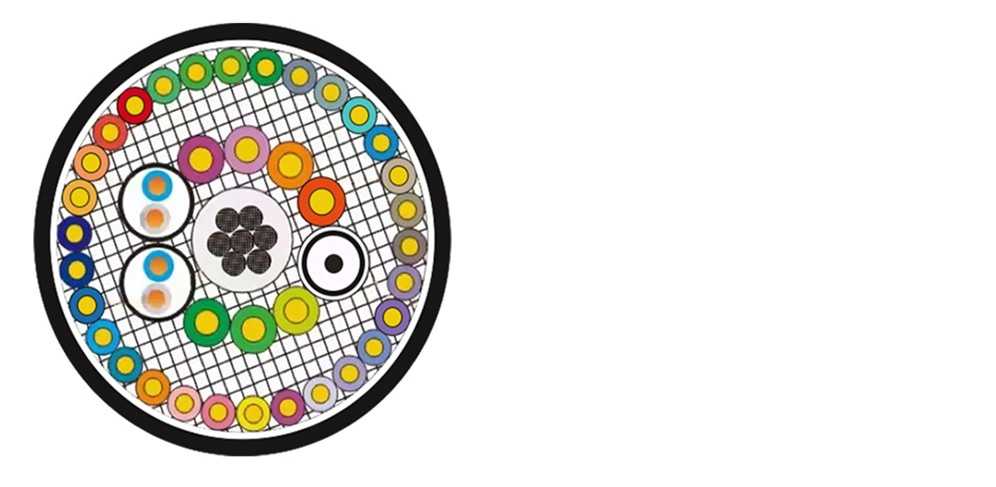

#custom #wire #harness <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Felevator-conveyor-cable%2F[/a] <br> <br> <br>Elevator &amp; Conveyor Cable <br>The elevator power cable adopts a special structural design and has a long service life. When used in long-distance suspension applications, it can provide overall electrical control under the condition of long suspension length. It can keep the power supply and signal unobstructed during work, with shielding and anti-interference capabilities, monitoring and serial communication functions. At the same time, it also has the characteristics of bending resistance and high flame retardancy. The material meets RoHS environmental protection. <br> <br>Low-speed Elevator Cable <br>Running speed ≦ 4m/s, running height ≦ 80m, and passed 3 million times of bending tests. It can still remain soft at a low temperature of -15°C. Applicable standards GBT 5023.6, IEC 60227-6. <br> <br>Middle And High Speed Elevator Cable <br>Running speed≦6m/s, running height≦200m. Passed 3 million flex tests. The long-term allowable operating temperature of the cable conductor does not exceed 70°C, Application standards GBT5023.6, IEC60227-6, IEC61024-2, etc. <br> <br>High Speed Elevator Cable <br>Running speed≦10m/s, running height≦300m. Passed 3 million flex tests. Applied standard GBT5023.6, IEC60277-6 and EN50214. <br> <br>Features of Elevator &amp; Conveyor Cable <br>1. Excellent flex resistance <br> <br>2. Good oil resistance, cold resistance, moisture resistance <br> <br>3. Excellent wear resistance, withstand greater mechanical stress <br> <br>4. Excellent anti-electromagnetic interference capability <br> <br>5. Select high-performance raw materials, such as high-strength and high-toughness ETF materials, insulating materials, etc.; <br> <br>6. Each batch of raw materials has been strictly inspected to ensure the stability of the cable products; <br> <br>7. All data on product performance and service life are verified by experimental tests. <br> <br>FAQs about Elevator &amp; Conveyor Cable <br>What are the specifications of the elevator cables? <br> <br>The so-called elevator cable is also the cable accompanying the elevator. In terms of shape, there are two types, one is round and the other is flat. The product models used are tvv, tvb, tvbp, tvbg and tvvbpg. <br> <br>What does the model letter of the elevator cable mean? <br> <br>&quot;t&quot; means the cable used for the elevator, &quot;v &quot;means polyvinyl chloride, &quot;b&quot; means a flat cable, &quot;p&quot; means the shielding structure, if with &quot;g&quot;, it means that the steel wire of this product is reinforced. <br> <br>What kind of cable specification are used for outdoor elevators on construction sites? <br> <br>The type of construction elevator cable is generally determined according to the power of the load. Generally, the power of the outdoor elevator is about 15kw, and the general cable line is about 6-10 square meters. <br> <br>AUPINS Technology is dedicated to creating four major product lines including metal machining products, charging connectors, energy storage connectors, and customize wiring harnesses in the clean energy industry. The major products of AUPINS are electric vehicle high-current charging terminals, charging pins and connectors, energy storage connectors, and customized wiring harness. <br> <br>If you want to know more types of high current battery connectors, please visit our website.

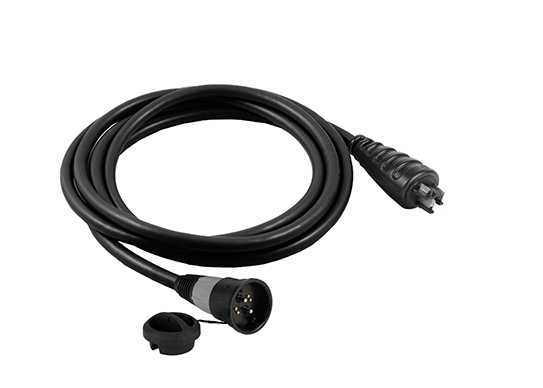

#ev #battery #connector <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Felectric-bike-charging-cable%2F[/a] <br> <br> <br>Electric Bike Charging Cable <br>The appearance of electric bike charging cable connects to the popularity of E bikes. E-bikes are the new lifestyle of travel as part of E-mobility life, and more and more people would prefer e-bikes as an alternative due to the factors of green and health issues. The charging trouble of e-bikes has always been a difficulty in mountain areas or tourist spots for users. AP E-bike charging cables are able to match most outdoor charging equipment anytime and anywhere. AP electric bike charging cables are compatible with standard charging ports all around the Europe area. <br> <br>Electric Bike Charging Cable Features <br> <br>Fast charging speed and long life <br> <br>Safe and reliable, compatibility <br> <br>Lightweight and user friendly <br> <br>High mechanical durability <br> <br>E-Bike Cable Application <br>E-bikes are now a popular commuter option, and the safety demand of users with charging connectors is increasing. <br> <br>The design of the AUPINS E bike cable is featured soft pulling force and is conveniently small. <br> <br>The electric bike charging cable is compatible with most electric bicycle brands. Whether you are in a hotel, mountain ranch, bar, or tourist area, you are able to take the AP electric bike charging cable for everyday use. <br> <br>AUPINS is an innovative team specializing in the R&amp;D and production of new energy connector products. We mainly focus on clean energy accessories, charging connectors, energy storage connector and customized wiring harness. We develop our technology by providing high quality products and services, and improve people&#039;s quality of life ultimately.

#electrical #contact #pins <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fdc-gb-t-charging-connector%2F[/a] <br> <br> <br>DC GB T Charging Connector <br>GB/T Charging Connector is widely used in the DC charging system of electric vehicles and conforms to GB/T 20234.2 standard. It is compatible with multi-type brand vehicles, which is able to ensure safe and continuous charging, and real-time monitoring of temperature control. <br> <br>What Is DC GB/T Charging Connector <br>The DC GB/T charging connector, also known as the GB/T plug, is a crucial component in electric vehicle (EV) charging systems, adhering to the GB/T charging standard. Specifically, it&#039;s designed for direct current (DC) charging and follows the specifications outlined in the GB T DC charger standard. <br> <br>This connector comprises both a plug and a socket, facilitating the connection between the EV and the charging station. The GB/T plug is inserted into the vehicle&#039;s charging port, while the corresponding socket is connected to the charging infrastructure. <br> <br>Key benefits of the GB/T DC charger include its ability to handle high-voltage DC power efficiently and safely, essential for rapid charging of EV batteries. Moreover, it supports bidirectional power flow and communication, enabling functionalities like vehicle-to-grid (V2G) and vehicle-to-vehicle (V2V) power transfer. <br> <br>DC GB/T Charging Connector Features <br> <br>AUPINS GB/T plug conforms to GB/T 20234.2 standard. <br> <br>The bottom of the GB/T charging connector is designed with safety insulation to protect direct human contact. <br> <br>Our GB/T DC charging connector applies double color coating technology. GB/T DC charger customization is accepted. <br> <br>Prevent overheating safety hazards effectively, and the protection level IP55 (working condition) meeting different situation. <br> <br>DC GB/T Connector Details <br>The DC GB/T plug connector is an essential component in electrical systems and devices, offering a standardized and reliable means of connecting power sources to equipment. Here are the DC GB/T connector details and specifications: <br>Product code AP-GBTDC <br>Rated current 80A, 125A, 200A, 250A <br>Rated voltage 750V, 1000V <br>Insulation resistance &gt;2000MΩ <br>Withstand Voltage 4500V <br>Contact resistance 0.5mΩMax <br>Pins temperature rise: &lt;50K <br> <br>DC GB/T Plug Connector FAQs <br>How long does it take to charge an electric vehicle with a DC GB/T connector? <br> <br>Generally, DC fast chargers equipped with GB/T connectors can deliver high power levels to recharge EV batteries rapidly. On average, EVs can achieve around 80% battery capacity in approximately 30 minutes to an hour using a GB/T DC charger. However, actual charging times may vary based on the specific EV model, battery size, and charging station capabilities. <br> <br>What are the advantages in materials of GB/T DC charger? <br> <br>The DC GB/T DC plug boasts materials selected for durability, heat resistance, and efficient electrical conductivity. These chargers incorporate components designed to withstand high power levels, dissipate heat effectively, and ensure safe operation. Materials with excellent insulation and corrosion-resistant properties are utilized to enhance safety and longevity, while lightweight materials of the GB/T charger may also be employed to improve portability without compromising performance. <br> <br>Is the GB/T plug connector compatible with all electric vehicles? <br> <br>While the GB/T plug connector is widely adopted, its compatibility with specific electric vehicles depends on whether those vehicles are designed to accept GB/T charging. Some EV manufacturers may use different charging standards or connectors. <br> <br>If you want to know more types of pins and connectors, please visit our website. <br> <br>As an ev battery connectors manufacturer, we will do our best to meet all the needs of customers.

#ac #charging #pin <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fdc-charging-connector%2F[/a] <br> <br> <br>DC Charging Connector <br>AP DC charging connector meets international standards. It is equipped with third-generation technology, ergonomic design, and excellent protection performance. It is able to meet IP 55 waterproof level in working condition. <br> <br>DC Charging Connector Types <br>The dc charging socket connector play a pivotal role in the world of electric vehicles, providing efficient and rapid charging solutions. As a leading high-quality interconnect pins manufacturer, we take pride in offering various DC charger connector types, specifically engineered to cater to various standards. Explore our cutting-edge solutions and find the perfect DC EV charging connector for sale that aligns with your electric vehicle charging needs. <br> <br>DC GB/T Charging Connector <br>Conform to the regulations and requirements of GB/T 20234.2 standards. It owns high-efficiency performance and reliable compatibility. <br> <br>CCS IEC 62196-3 Combo 2 Charging Connector <br>Comply with the regulations and requirements of DC 62196-3 IEC standards. It has an excellent IP55 protection level and ensures stable charging. <br> <br>CCS Combo 1 Sae J1772 DC Charging Connector <br>Comply with the regulations and requirements of DC SAE J1772 standards. It owns a safety insulation design to prevent direct human contact. <br> <br>Different between AC and DC Charger <br>DC charging has 120kw maximum power and can be quick charging in a public area. <br> <br>AC charging with a maximum of 22kw is normally working in household daily use. <br> <br>DC charging has 120kw maximum power and can be quick charging in a public area. <br> <br>AC charging with a maximum of 22kw is normally working in household daily use. <br> <br>The Importance of DC Charging Pin For Electric Vehicles Charging <br>Fast Charging Capability: DC charger pins enable fast charging, significantly reducing the time required to recharge EV batteries compared to conventional alternating current (AC) charging methods. This is crucial for enhancing the convenience and practicality of EVs, making them more appealing to consumers. <br> <br>Long-Distance Travel: DC charging infrastructure, often equipped with the DC charging plug and new energy connector, facilitates long-distance travel for EV owners by providing rapid charging along highways and major travel routes. This infrastructure expansion is essential for addressing range anxiety and promoting EV adoption on a broader scale. <br> <br>Public Charging Networks: Public charging networks, comprising DC fast charging stations with compatible charging pins, play a vital role in supporting EV drivers who may not have access to private charging facilities. These networks increase the accessibility and convenience of EV charging, particularly in urban areas and densely populated regions. <br> <br>Charging Compatibility: Many modern EV models come equipped with onboard DC charging capability, allowing them to utilize DC fast charging stations with compatible pins. This compatibility ensures seamless integration between EVs and public charging infrastructure, enabling widespread adoption and usage. <br> <br>Why Choose Aupins DC Charging Connector <br>Choosing Aupins DC charging connectors offers unparalleled reliability and performance, making them the preferred choice for a wide range of applications. Aupins, a renowned industry leader, has garnered trust and recognition for its innovative solutions in the realm of DC charging technology. <br> <br>Exceptional Quality: Aupins DC charging pin is synonymous with superior craftsmanship and durability. Crafted with precision engineering and using top-grade materials, including robust metals and high-quality plastics, these connectors ensure long-lasting performance in any environment. <br> <br>Versatility and Compatibility: Aupins DC charging plug is designed to seamlessly integrate with various devices and systems, including DC charging pins, plugs, sockets, and other connectors. Their universal compatibility makes them suitable for a diverse range of applications, from electric vehicles to renewable energy systems. <br> <br>Innovative Design: The Aupins DC charging connector features innovative designs that prioritize user convenience and safety. With ergonomic shapes, intuitive interfaces, and secure locking mechanisms, these connectors offer hassle-free operation and peace of mind during charging sessions. <br> <br>Reliable Performance: Aupins DC charging pin delivers consistent and efficient power transfer, ensuring rapid charging for devices equipped with DC charging pins or plugs. Their robust construction and advanced electrical components guarantee reliable performance, even under demanding conditions.

#brass #electrical #pins <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fcrown-spring-pins%2F[/a] <br> <br> <br>Crown Spring Pins <br>The high-performance contact system of crown spring pins is able to maintain the reliability of the electrical contact in the intense vibration environment. The manufacturing process is simple, and each plate in the elastic ring is independent. The crown spring design has low contact resistance and mild pulling force. <br> <br>Features of Crown Spring Contact Pins <br> <br>Mechanical life: ≧10000 times <br> <br>High mechanical durability <br> <br>Stable mating force and low contact resistance <br> <br>High reliability and vibration resistance <br> <br>Application: Clean energy electric vehicle、Energy storage and so on <br> <br>Specifications of Crown Spring Connector Pins <br>Product Dimension(Ø) Rated contact Pulling <br>code (mm) Current ≦(A) Resistance ≦(mΩ) force≤ (N) <br>AP-CS-30 3 30 0.2 9-Mar <br>AP-CS-60 6 60 0.15 21-Jul <br>AP-CS-150 8 150 0.1 30-Oct <br>AP-CS-200 10 200 0.8 15-45 <br>AP-CS-250 12 250 0.8 15-45 <br> <br>If you want to buy high current waterproof connector, please contact us.

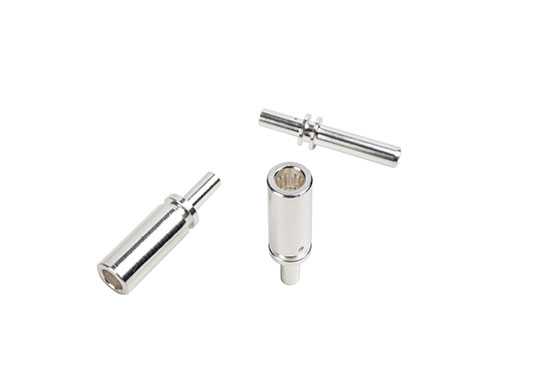

#pins #and #connectors <br> <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fcharging-pin-connector-for-gb-t-ev-charging-plug%2F[/a] <br> <br> <br>Charging Pin Connector For GB/T EV Charging Plug <br>AP GB/T AC terminals are suitable for GB/T standard charging plugs and sockets to the GB/T 20234.2-2015 requirements. It owns soft and stable mating forces and the material of contact parts mainly adopts beryllium bronze with silver or gold coating for plating technology. <br> <br>Features of AC/DC Terminal Pins and Connectors <br> <br>Mechanical life ≧10000 times <br> <br>Flexible custom design to realize high current and special structure <br> <br>High ampacity, low-temperature rise <br> <br>Safe installation and connecting <br> <br>Anti-shock and durability design <br> <br>Material of AC/DC Charging Pin Connector Terminal Pins <br>（1）Material: Brass, Copper <br> <br>（2）Contact Material: Beryllium bronze <br> <br>（3）Plating Material: Gold, Silver <br> <br>Tips: Customized according to customer requirements <br> <br>Specifications of Charging Pin Connector AC/DC Terminal Pins <br>DC GB/T Terminal <br>Item dimension（mm） Rated current and function <br> <br>LN terminal 12 250A/200A/125A/80A <br> <br>PE terminal 6 earthing <br>cc1 terminal 3 signal <br>cc2 terminal 3 signal <br> <br>AC GB/T Terminal <br>Item dimension（mm） Rated current and function <br> <br>LN terminal 6 200A/32A/16A <br>PE terminal 6 63A/32A/16A <br>CC terminal 3 signal <br> <br>AUPINS TECHNOLOGY is an independent innovative enterprise specializing in the development and production of electric connector products. We focus on the lecticonecton demand for electric vehicles, photovoltaic industry energy storage, and other related industries in the field of lean energy by supplying global customers with customized tulio contact pins high-flexible pins, machining components, energy storage connectors, and battery pack connector.

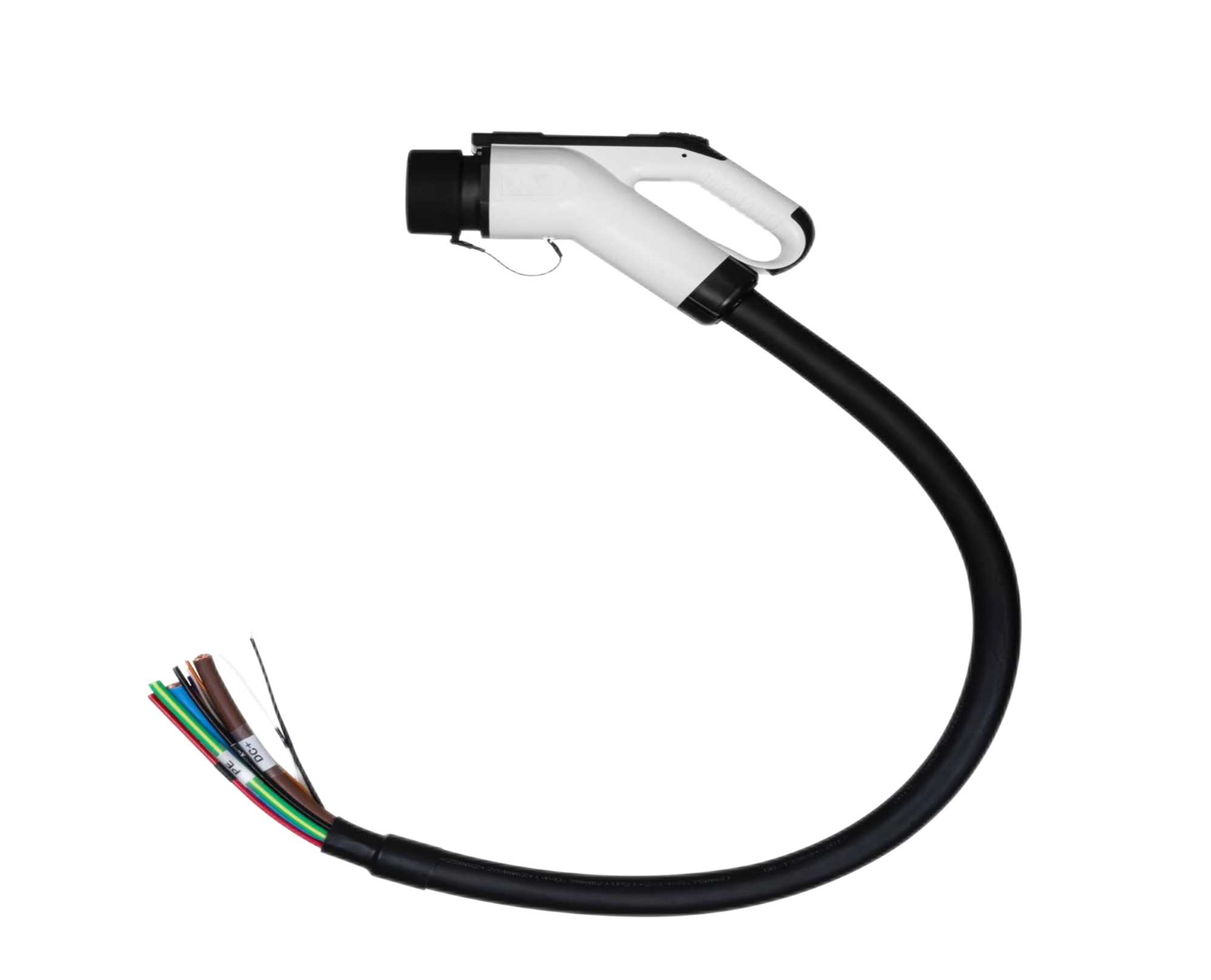

#contact #pins <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fccs-combo-1-sae-j1772-dc-charging-connector%2F[/a] <br> <br> <br>CCS Combo 1 Sae J1772 DC Charging Connector <br>AP DC charging connector conform to SAE J1772 DC combo connector provisions and requirements. It&#039;s compatible with multi-type brand vehicles and ensure safety during charging time. <br> <br>Feature of Sae CCS Combo Plug J1772 DC Charging Connector <br> <br>Conform to requirement of SAE J1772. <br> <br>The end of the J1772 DC terminal is designed with safety insulation to prevent direct human contact <br> <br>The Sae J1772 CCS combo connector adopts bi-color coating technology, customized color accepted. <br> <br>Prevent overheating safety dangers effectively, and the protection level IP55 (working condition) meeting different situation. <br> <br>Specifications of CCS Combo 1 Sae J1772 DC Charging Connector <br>Product code AP-SAEDC <br>Rated current 70A,125A,150A,200A <br>Rated voltage 600V <br>Insulation resistance &gt;2000MΩ(DC1000V) <br>Withstand Voltage 3200V <br>Contact resistance 0.5mΩMax <br>Pins temperature rise: &lt;50K <br> <br>Application of CCS Combo 1 Sae J1772 DC Charging Connector <br>Versatile EV Charging: The CCS1 combo connector serves as a versatile solution for electric vehicle (EV) charging, catering to a range of EV makes and models. <br> <br>Standardized Compatibility: This connector adheres to the SAE J1772 standards, ensuring a standardized approach to DC charging. This standardization promotes compatibility and interoperability in the EV charging ecosystem. <br> <br>Fast and Efficient Charging: Designed for DC charging, the CCS SAE j1772 DC charging connector supports high-power charging, significantly reducing the time required to recharge electric vehicles compared to traditional charging methods. <br> <br>Interoperable Charging Network: Its integration into charging stations contributes to the development of an interoperable charging network. This is crucial for the seamless experience of EV owners, allowing them to charge their vehicles at various locations. <br> <br>Contribution to Electric Mobility: The SAE J1772 combo connector is a key component driving the widespread adoption of electric mobility by providing a standardized, efficient, and fast-charging solution for electric vehicles across different manufacturers. <br> <br>Why Choose Sae J1772 Combo DC Charging Connector from Aupins <br>Cutting-edge Technology: Aupins&#039; Sae J1772 combo DC charging connector integrates state-of-the-art technology for efficient and rapid charging, ensuring a seamless experience for electric vehicle owners. <br> <br>Reliability and Durability: This type of CCS1 connector is built with high-quality materials to guarantee reliability and durability, withstanding frequent use and various environmental conditions. This robust construction contributes to a long service life. <br> <br>After-Sale Service: Aupins is committed to providing excellent after-sale service. This includes prompt customer support, technical assistance, and warranty coverage, ensuring customer satisfaction throughout the lifespan of the charging connector. <br> <br>User-Friendly Design: The Sae J1772 CCS DC charging connector from Aupins features a user-friendly design, making it easy to handle and connect. This design consideration enhances the overall user experience. <br> <br>FAQs about CCS Combo 1 Sae J1772 DC Charging Connector <br>What is the difference between AC and DC charger? <br> <br>For household 22kw is ac charger and DC charger can reach to 120kw. AC charger is AC power needs to be converted inside or outside the car, and the DC charger can converter inside the charger itself. <br> <br>Are all DC chargers the same? <br> <br>No, there are three most common types of DC chargers in the world, they are IEC CCS2, SAE CCS1, and GBT DC. They are different in interface design and national standard. <br> <br>How do I know what types DC plug I need? <br> <br>First, you have to check on your vehicle socket inlet. There are sample pictures below. <br> <br>Do all CCS-equipped EVs use CCS Combo 1 <br> <br>No, there are two main types of CCS connectors: <br> <br>CCS Combo 1 (CCS1): This is the most common type in North America. <br> <br>CCS Combo 2 (CCS2): This is the standard in Europe and some other regions. CCS1 and CCS2 have different shapes at the top (AC charging) section due to regional variations in standard AC plugs. <br> <br>Make sure your car&#039;s CCS port matches the CCS connector type used in your area. <br> <br>AUPINS TECHNOLOGY is an independent innovative enterprise specializing in the development and production of electric connector products. We focus on the lecticonecton demand for electric vehicles, photovoltaic industry energy storage, and other related industries in the field of lean energy by supplying global customers with customized tulio contact pins high-flexible pins, machining components, energy storage electric connectors, and ev battery connector.

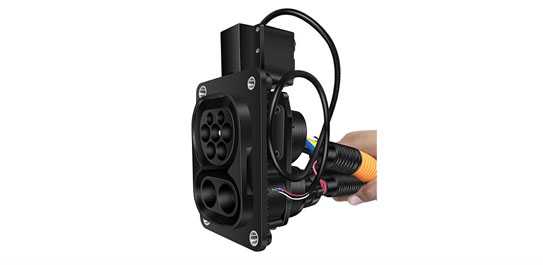

#new #energy #connector <br> <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fccs2-vehicle-charging-socket%2F[/a] <br> <br> <br>CCS2 Vehicle Charging Socket <br>The SCZ series CCS2 socket can be installed on electric vehicles. The socket meets IEC 62196.3-2022 and RoHS requirements. On the appearance of the CCS 2 socket, the tail cover adopts a high-voltage warning color, which is convenient for operators to identify and improves safety. <br> <br>Features of the SCZ Series CCS 2 Socket for Vehicle Charging <br>1. The CCS2 socket meets IEC 62196.3-2014 <br> <br>2. Meet TUV/CE certification requirements <br> <br>3. Anti-straight-insert dust cover <br> <br>4. 10000 times of pulling force and stable temperature rise. <br> <br>5. Integrated plastic shell, small gap between inserting plug and high reliability of locking charger <br> <br>6. Dust cover of the CCS type 2 plug socket combines hardness and toughness <br> <br>7. The CCS 2 socket has higher charging efficiency <br> <br>Highlights of CCS2 Socket for Vehicle Charging <br>Dual Charging Capability <br>The CCS2 (Combined Charging System Type 2) vehicle charging socket supports both AC and DC charging through a single interface. This versatility allows for seamless Level 2 AC charging and high-speed DC fast charging, providing flexibility and convenience for EV owners. <br> <br>High Charging Speeds <br>The CCS2 socket supports high charging speeds, with DC fast charging capabilities reaching up to 350 kW. This enables rapid recharging of electric vehicles, significantly reducing downtime and enhancing the practicality of EVs for long-distance travel. <br> <br>Universal Compatibility <br>The CCS2 socket is designed to be compatible with a wide range of electric vehicles and charging stations, particularly in Europe. This standardization ensures broad accessibility and ease of use, making it a preferred choice for manufacturers and charging infrastructure providers. <br> <br>Enhanced Safety Features <br>The CCS 2 socket incorporates multiple safety features, including temperature monitoring, interlock mechanisms to prevent accidental disconnection, and robust communication protocols between the vehicle and charger. These features ensure safe and reliable charging operations under various conditions. <br> <br>Robust Design <br>Engineered for durability, the type 2 ccs socket is built to withstand frequent usage and harsh environmental conditions. Its robust construction ensures longevity and reliable performance, making it suitable for both residential and commercial charging applications. <br> <br>Application of CCS2 Vehicle Charging Socket <br>The CCS2 socket is installed on electric vehicles for charging and by cooperating with the CCS2 Charger, the DC charging function can be realized. <br> <br>Specifications of CCS2 Vehicle Charging Socket <br>Type AP-SCZ <br>Rated current DC + / DC -: 200A, suit with 70mm2 conductors; 250A suit with 95mm2 conductor <br> PE: suitable for 25mm2 conductors <br> CP / PP: 2A, suitable for 0.75mm2 conductor <br>Rated voltage DC + \ DC - \ PE hole position 1000V, other 30V <br>Withstand voltage 3000V AC / 1min （DC+\DC-\PE） <br>Insulation resistance insulation resistance ≥ 100m Ω 1000V DC (DC + / DC - / PE) <br>working - 30 ℃ ~ 50 ℃ <br>temperature <br>Degree of IP55(When not mated) IP44(After mated) <br>protection <br>Mechanical life 10000 times <br>Surface treatment silver plating <br> <br>AUPINS TECHNOLOGY is an independent innovative enterprise specializing in the development and production of new energy connector products. We focus on the lecticonecton demand for electric vehicles, photovoltaic industry energy storage, and other related industries in the field of lean energy by supplying global customers with customized tulio electrical contact pins high-flexible pins, machining components, energy storage electric connectors, and battery pack connector.

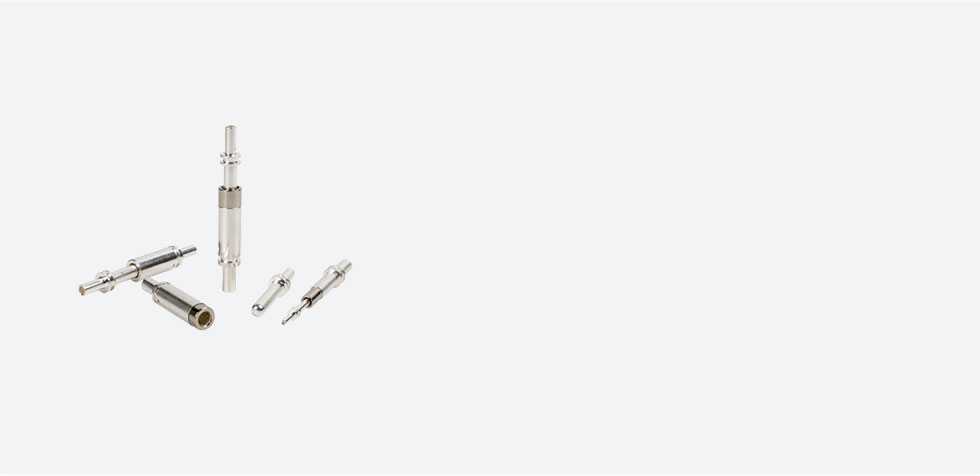

#electrical <br>[a]https%3A%2F%2Fwww.aupins.com%2Fproducts%2Fbrass-connector-pin-for-iec-ev-charging-plug%2F[/a] <br>Brass Connector Pin For IEC EV Charging Plug <br>As an professional brass electrical plug pin manufacturer, AUPINS brass connector pins for IEC conforms to global standards. Our brass electrical pins adopt brass in the main body material and uses hard sliver plating technology to maintain excellent performance of brass connector pin. <br> <br>Types of Brass Contact Pin For IEC EV Charging Plug <br>The brass contact pin for IEC EV charging plugs come in various types, such as CCS type 2 contact Pins and AC IEC brass connector pin. Each type is designed to provide secure and efficient electrical connections, catering to the diverse needs of electric vehicle charging applications. The following products are different types of brass connector pin for sale: <br> <br>CCS Type 2 Contact Pins <br>Comply with the regulations and requirements of DC IEC standards. It owns high efficiency and reliable compatibility. <br> <br>AC IEC Brass Connector Pin <br>Conform to the regulations and requirements of AC IEC standards. Brass connector pin is featured with high ampacity and low-temperature rise. <br> <br>Brass Contact Pins Features <br>High ampacity and low-temperature rise: With high-performance materials, the brass connector pin system has a mechanical life of up to 10,000 mating cycles. Our brass plug pins are able to withstand high current loads and high temperatures. AP ensures a stable connection even in high current pinholes. <br> <br>Durable reliability: Durable and reliable transmission can be achieved, and a high degree of reliability and vibration resistance is guaranteed. Special materials of brass connector pin combined with the manufacturing technology can exert the best performance in a limited space. <br> <br>Brass Contact Pin Applications <br>The brass contact pin, or brass electrical pin finds applications in various industries due to their excellent electrical conductivity, corrosion resistance, and affordability. <br> <br>Electronics: Brass connector pins are widely used in electronic connectors, sockets, and switches. They provide a reliable electrical connection in devices such as computers, smartphones, TVs, and other consumer electronics. <br> <br>Automotive: In the automotive industry, the brass contact pin is used in connectors for wiring harnesses, sensors, switches, and other electrical components. They offer durability and resistance to vibration and harsh environmental conditions. <br> <br>Telecommunications: Brass contact pins are essential components in telecommunications equipment such as routers, modems, and networking devices. They ensure efficient signal transmission in cables and connectors. <br> <br>Medical Devices: Medical devices often utilize brass electrical pins for electrical connections in equipment like patient monitoring systems, diagnostic devices, and medical imaging machines. <br> <br>Industrial Equipment: Brass connector pins are found in various industrial applications, including control panels, machinery, and instrumentation. They provide a stable electrical connection in harsh environments like factories and manufacturing plants. <br> <br>AUPINS: Your Trusted Brass Electrical Plug Pin Manufacturer in China <br>AUPINS proudly stands as your trusted brass electrical plug pin manufacturer in China, delivering unparalleled quality and reliability in the realm of electrical components. <br> <br>Expertise in Manufacturing: As a leading brass electrical plug pin manufacturer, AUPINS specializes in crafting premium brass connector pins. Our expertise lies in producing top-notch brass electrical plug pins that meet rigorous industry standards. <br> <br>Precision in Design: AUPINS takes pride in the precision of our designs. Our brass electrical plug pins are meticulously engineered to provide optimal performance, durability, and secure electrical connections. <br> <br>Innovation in Brass Contact Pins: A key focus area is the development of brass contact pins. AUPINS leverages innovative techniques to manufacture brass contact pins that guarantee efficient electrical conductivity, contributing to the reliability of electrical systems. <br> <br>Quality Assurance: At AUPINS, quality is paramount. Our brass plug pin and all these types of plug pins undergo stringent quality control measures to ensure consistency and reliability, making them ideal for diverse applications in the electrical industry. <br> <br>Customization Options: Recognizing the unique requirements of our clients, AUPINS offers customization options. Tailor our brass electrical pins to suit specific dimensions, features, or performance criteria, providing flexibility for various projects. <br> <br>Brass Connector Pin FAQs <br> <br>Why is brass used in plug pins? <br> <br>Because brass has features such as good mechanical properties and good plasticity in hot (cold) states. Besides, brass is a type of valuable connector pin material. This is why brass contact pins are durable and wearproof. <br> <br> <br>What type of brass is used in plug pins? <br> <br>Normally, brass type H62 is often use in brass electrical pins. H62 is one kind of copper alloy and it contains 62% bronze and adds zinc elements. <br> <br>What are the advantages of Aupins brass connector pins? <br> <br>Flexible custom design to realizes high current and special structure for brass connector pin; <br> <br>High ampacity, low temperature rise. For more infromation about brass connector pins, you can find in AUPINS products brouche. <br> <br>If you want to know more kinds of ev battery connector, please visit our website.
