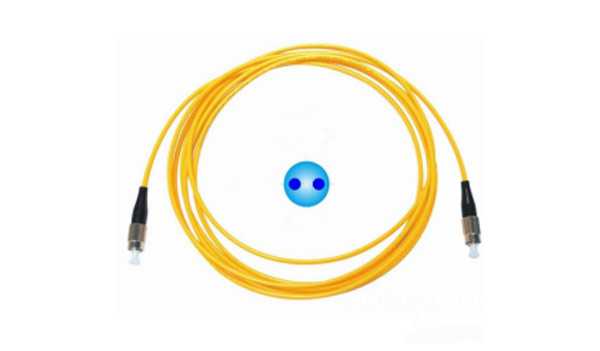

#PM #Patch <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2Fpm-patch-cord%2F[/a] <br>PM fiber patch cord is an important connection device to transmit polarization-maintaining optical signal and meanwhile, keep its polarization state unchanged. <br> <br>PM Patch Cord Features <br>IL&lt;0.3dB <br> <br>ER&gt;23dB <br> <br>Key orientation: Any <br> <br>Multiple options for connector type <br> <br>How pm fiber patch cord Works <br>Normally, fiber optic patch cord can transmit line polarized light. Capable of realizing the high-precision measurement of physical quantity, PM patch cord can effectively ensure the direction of linear polarization and greatly improve the coherent signal-to-noise ratio. <br> <br>At present, MEISU&#039;s pm patchcord are all offered in PANDA fiber with custom key orientation. As for the types of fiber patch cord provided by MEI SU, they are currently available in FC termination in either UPC or APC polishing with customized length options. <br> <br>MEISU&#039;s optical fiber components are being used in more and more fields far beyond traditional optical communication. We will never stop developing new optical devices to meet and lead the market trend, and we strive to come up with more solutions for our customers. From originally standard common SM fiber array unit for PLC Splitter to 2-dimensional fiber array with customized design for Astronomical Optics, from simply packed items to hermetia sealing and high-temperature survivable ones. Check out the listed five main applications, reach us with your needs. There are more solutions than you know here.

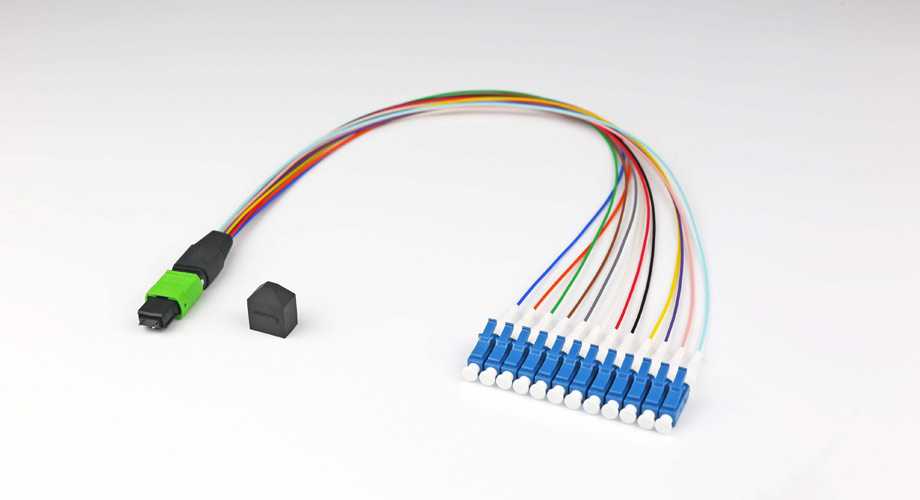

#MPO #patch #cord <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2Fpm-mpo-jumper%2F[/a] <br>PM MPO Jumper <br>PM MPO patch cord is a kind of multi-core PM fiber that is fanned out and connected to MPO connector. Normally, this kind of MPO jumper can transmit multiple polarization-maintaining optical signals and keep their polarization orientation unchanged at the same time. <br> <br>PM MPO Fiber Jumper Features <br>Fiber count: 8, 12, 16, 24 <br> <br>IL&lt;0.35dB <br>ER&gt;20dB <br>Key orientation: Any <br>Multiple options for connector type <br> <br>Benefits of MPO Patch Cord <br>Benefit Description <br>High Density Multiple fibers in one connector, reducing cable volume and saving space. <br>Scalability &amp; Efficiency Faster deployment, easier expansion for future needs. <br>Performance &amp; Reliability Lower insertion loss, durable design, pre-terminated for reliability. <br>Cost-Effectiveness Can be cost-effective for high-density applications due to space savings and faster deployment. <br>Improved Cable Management Fewer cables simplify management and improve airflow. <br> <br>Now the price of pm fiber connector is reasonable, anything you need, please contact us. <br> <br>MEISU&#039;s optical fiber components are being used in more and more fields far beyond traditional optical communication. We will never stop developing new optical devices to meet and lead the market trend, and we strive to come up with more solutions for our customers. From originally standard common SM fiber array for PLC Splitter to 2d fiber array with customized design for Astronomical Optics, from simply packed items to hermetia sealing and high-temperature survivable ones. Check out the listed five main applications, reach us with your needs. There are more solutions than you know here.

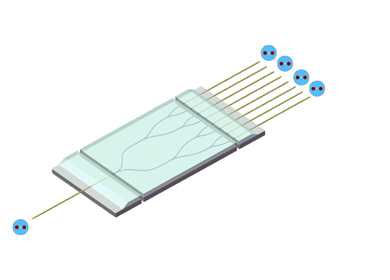

#Optical #Fiber <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2Fpm-fiber-array%2F%0APolarization[/a] Maintaining Optical Fiber Array Features <br>Fiber count: Up to 64 <br> <br>Core Pitch: 127μm, 250μm or Customer specified <br> <br>Pitch Tolerance:&lt;0.5μm <br> <br>Stress rod orientation: Any <br> <br>Stress rod orientation error: &lt; 3° <br> <br>PER: &gt;18dB <br> <br>How Polarization Maintaining Fiber Alignment Works <br>Polarization-maintaining fiber, or the so-called pm fiber array and PMF fiber, can normally ensure the direction of linear polarization and effectively improve the coherent signal-to-noise ratio. Capable of realizing the high-precision measurement of physical quantity, PMF fiber is widely used in interferometric fiber optic sensor, which is theoretically based on optical coherent detection, fiber optic gyro and fiber optic hydrophone. Thus, in order to expand the use of polarization maintaining fiber and increase the dosage of products, it is better to integrate PM fiber into fiber array alignment. <br> <br>If you want to know more kinds of custom optical assemblies, please visit our website.

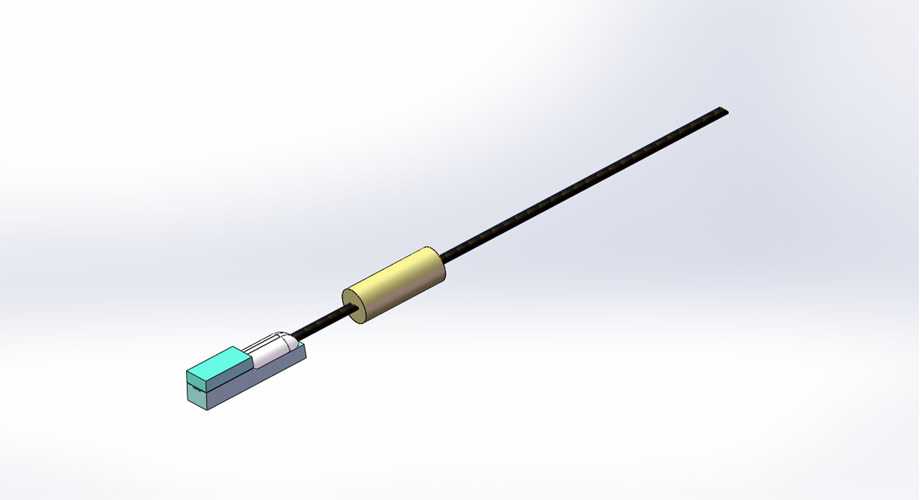

#v #groove# bending <br>MEISU&#039;s hermetic sealing fiber array is realized by gold-coating the fiber cladding before inserting them into a metal (KOVAR) tube. Gap between fibers and tube is fully filled with sodering tin. The metal (KOVAR) tube of MEISU&#039;s hermetic fiber optic feedthrough fiber is gold-coated as well to prevent it from oxidization. Such linear fiber array is commonly used in optical devices and modules that require air-tight packaging. The gold-coated Kover tube is easy to be fixed in optical devices using soldering tin and achieve air-tightness. <br> <br>Hermetic Sealing FA Features <br> <br>Fiber count: 1, 2, 4, 8, 16 <br> <br>Core Pitch: 127μm, 250μm <br> <br>Pitch Tolerance:&lt;0.5μm <br> <br>Fiber Type: PM, SM, MM fiber <br> <br>Gold-coated KOVAR case <br> <br>High reliability <br> <br>How It Works <br>To guarantee the stability and reliability of the optical devices, hermetic sealing fiber array uses a sealable ribbon fiber. This kind of ribbon fiber can pass through a gold-coated KOVAR casing assembly and constitute a sealing system. And the gap between the ribbon fiber and the metal casing assembly is filled with solder and sealed, thus the fiber array can withstand the secondary welding temperature. <br> <br>As one of fiber optic switches manufacturers, we will do our best to meet all the needs of customers. <br> <br> <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2Fhermetic-sealing-fa-fiber-array%2F[/a]

#fiber #collimator <br>Fiber Optical Switches for Sale <br>Products <br>Multimode fiber optic switch is an ideal component for OADM, OXC, system monitoring and protection. With the compact package, fiber optical switches can be easily integrated into a high density optical communication system. <br> <br>Designed by professional engineers, MEISU&#039;s fiber optic cable/network connect switches can provide a wide range of channels, including 1×2, 2x2, 1×3, 1×4, 1×8, 1×12, and etc. With the features of low loss and compact sizes, the single mode fiber optic switch and multimode fiber optic switches produced by MEISU can all be well integrated into optical network for switching optical transmission paths or monitoring a large-scale optical transmission. As one of the top fiber optic switches manufacturers, MEISU aims to develop the smallest yet the most reliable industrial fiber optic switch of different package forms. Our goal is to make every customer find the right switching solution for their specific needs. <br> <br>Fiber Optical Switch <br>Magneto Optical Switch <br>Magneto-optic switch has been widely used due to its capabilities of handling large beam cross-sections, operating at low voltages and low insertion los. The Mageto-optical switch is realized by connecting or blocking the optical signal, it has non-mechanical configurations and activated via an electrical control signal, it also has build-in circulator and isolator functions, making it very popular in aerospace and military equipment. <br> <br>MEMS Switch <br>MEISU MEMS optical line protection switch is based on micro-electro-mechanical system (MEMS) technology, which achieved low insertion loss and highly repeatability by rotating the mirror of MEMS chip. Its compact size makes it flexible to be used in channel Blocking, instrumentation and fiber sensing system. <br> <br>Mechanical Optical Switch <br>Mechanical Optical Switch is realized by moving optical elements to change the optical path, different from traditional T-shape switch, MEISU&#039;s I-shape optical optical switch takes up smaller space and makes it easier to be integrated into the optical communication system. <br> <br>Micro Optical Switch <br>MEISU micro optical switch is the upgraded version of the regular mechanical optical switch with an even smaller package size (L)20×(W)10.5×(H)8.0mm. <br> <br>High Power Optical Switch <br>High power opitcal switch can be used in medical equipments, such as laser beauty equipment, laser surgery which usually require higher optical power and more frequent interruption of the laser output, besides, it can also be used in Industrial laser system. <br> <br>Variable Time-Delay Module <br>The optical time-delay module consists of several optical fibers of different lengths as delay lines, selecting different paths by optical switches can achieve different delays. <br> <br>If you want to know more kinds of custom optical assemblies, please visit our website. <br> <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2Ffiber-optical-switch%2F[/a]

#optical #collimator <br>Complementary to a single mode fiber bundle, a 2-D tapered fiber optic cable bundle uses a flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement. <br> <br>Features of Tapered Fiber Bundle <br>Arbitrary pattern <br> <br>Customer determined core pitch <br> <br>Pitch accuracy&lt;5um <br> <br>Fiber type: SM/MM/PM <br> <br>Compact Design <br> <br>Customized solutions <br> <br>How Single Mode Fiber Optic Bundle Works <br>2-D fiber optic bundle, or fiber bundle optics, uses flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement. In bundled fibers, the core distance of the fiber is usually determined by the fiber diameter, so once the type of the bundled fiber is determined, the core distance of the fiber is fixed as well. To achieve smaller core pitch, MEI SU has its own corroding technique to reduce the existing fiber diameter to any size. <br> <br>If you want to know more about pm fiber array, please visit our website. <br> <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2Ffiber-bundle%2F[/a]

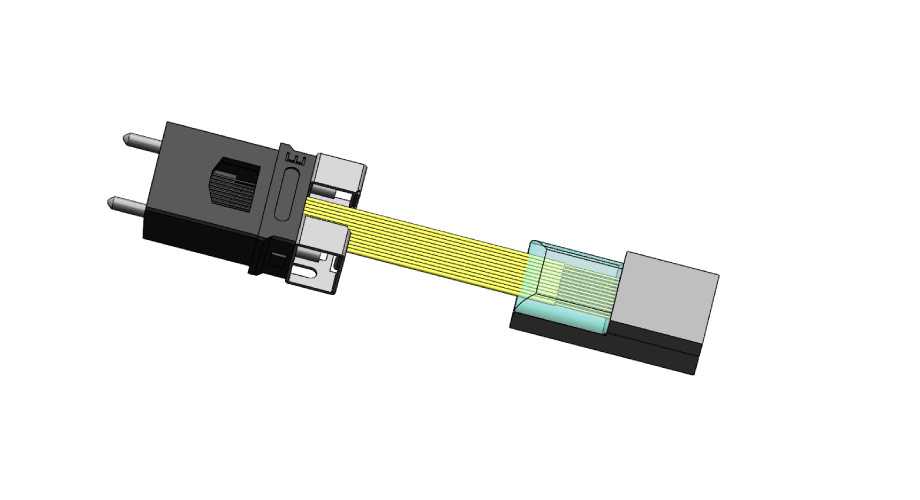

#optical #fiber #collimator <br>MEISU&#039;s 90 degree Bending Fiber Arrays are fabricated with ultra small V-Groove substrate and special fibers of small bending radius. The compact dimensions with height less than 8mm makes it suitable for passive packaging in the board and ideal for connection on high speed silicon photonics transceiver modules. <br> <br>It ensures high-coupling-efficiency optical interconnection when using a fiber optic 90 degree bend connector to deflect beams between surface-emitting lasers or surface-receiving photodiodes and optical layers embedded in a board. <br> <br>90° FA-MT Features <br> <br>Flat and compact design <br> <br>High coupling efficiency <br> <br>Fiber counts: 4, 8, 12 <br> <br>High precision of Core pitch: +/-0.5um <br> <br>Operating Temperature: -40℃~110℃ <br> <br>Fiber Type: SM / PM <br> <br>How It Works <br>Inside of 90 degree v groove bending Fiber Arrays, fibers are literally 90 degree bended to make it be able to couple into the PD/VCSEL or silicon chip that its transmitting and receiving optical signals is perpendicular to the substrate. This kind of design guarantees higher production and coupling efficiency. It is often used for grating coupling in silicon photonics. <br> <br>MEISU&#039;s optical fiber components are being used in more and more fields far beyond traditional optical communication. We will never stop developing new custom optical assemblies to meet and lead the market trend, and we strive to come up with more solutions for our customers. From originally standard common SM fiber array for PLC Splitter to 2-dimensional fiber array with customized design for Astronomical Optics, from simply packed items to hermetia sealing and high-temperature survivable ones. Check out the listed five main applications, reach us with your needs. There are more solutions than you know here. <br> <br>More kinds of v-groove assembly, please visit our website. <br> <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2F90-bending-fa-mt-v-groove-linear-fiber-array%2F[/a]

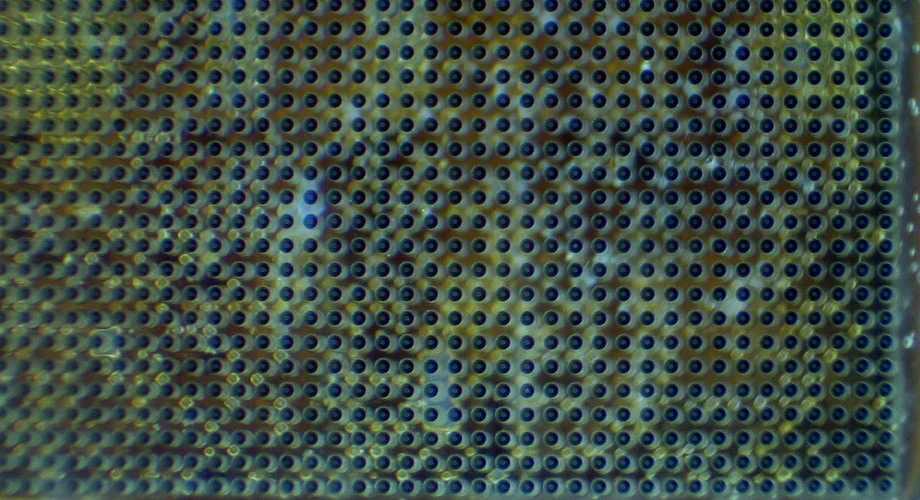

#collimator #array <br>Two-dimensional M * N fiber array is a kind of fiber component that has many fibers arranged orderly and accurately in two-dimensional form, with arbitrary fiber core pitch. The pitch accuracy of 2D fiber array can be as small as 1um. <br> <br>2D Fiber Array Features <br> <br>Arbitrary pattern <br> <br>Customer determined core pitch <br> <br>Pitch accuracy&lt;2um <br> <br>Fiber type: SM/MM/PM <br> <br>Compact Design <br> <br>Customized solutions <br> <br>Various materials (Glass / Ceramic) <br> <br>How It Works <br>A 2D fiber array normally includes: a two-dimensional microwell glass/ceramic plate, metal housing, and M * N optical fibers. And it is described in the two-dimensional micro porous glass block for fixed fiber. The two-dimensional porous glass/ceramic plate is usually equipped with a number of a two-dimensional fiber array of tiny holes. M * N optical fiber goes through the small hole and fixed with adhesive. The metal case works as a support and protective cover to the fibers. <br> <br>Two-dimensional fiber array is widely used in optical waveguide devices, integrated optics, optical imaging, etc. It is also a key component of two-dimensional optical collimator array. These array fiber collimators can be glued into a 2D array with high precision and all light channels are thus parallel. <br> <br>MEI SU&#039;s optical fiber components are being used in more and more fields far beyond traditional optical communication. We will never stop developing new optical devices to meet and lead the market trend, and we strive to come up with more solutions for our customers. From originally standard common SM fiber array for PLC Splitter to 2-dimensional linear fiber array with customized design for Astronomical Optics, from simply packed items to hermetia sealing and high-temperature survivable ones. Check out the listed five main applications, reach us with your needs. There are more solutions than you know here. <br> <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2F2d-fiber-array%2F[/a]

#array #fiber #collimators <br>Traditional optical fiber collimator is the basic component of optical fiber communication device. However, with the development trend of integration and miniaturization, fiber optical switch, optical cross connection such as N * M equipment, and wavelength selection switch are now all needed to start using densely arranged collimator arrays; whereas, the existing single fiber collimator is too big to be applied. Therefore, 2D optical fiber collimator arrays with precise pitch have now gradually become the necessary choices for numerous optical integrated devices. <br> <br>The Features of 2D Array Fiber Collimators <br> <br>Arbitrary arrangement <br> <br>Customer determined core pitch <br> <br>Pitch accuracy&lt;2um <br> <br>Customized working distance and spot size <br> <br>Fiber type: SM/MM/PM <br> <br>Customized solutions <br> <br>Various materials (Glass / Ceramic) <br> <br>How It Works <br>A 2-D fiber collimator array normally includes a housing that fixes the distance between the optical fiber array and the lens array, a 2D fiber array holding multiple optical fibers arranged in M*N, and an M*N lens array that is used to receive the incident beam transmitted by the fiber array. And each lens in the lens array is arranged at the optical path position of each fiber head in the fiber array unit in a one-to-one correspondence. Glue will be applied between the end face of the shell and the lens array once the positions are all set well. <br> <br>MEISU&#039;s optical fiber components are being used in more and more fields far beyond traditional optical communication. We will never stop developing new optical devices to meet and lead the market trend, and we strive to come up with more solutions for our customers. From originally standard common SM fiber array for PLC Splitter to 2-dimensional fiber array with customized design for Astronomical Optics, from simply packed items to hermetia sealing and high-temperature survivable ones. Check out the listed five main applications, reach us with your needs. There are more solutions than you know here. <br> <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2F2d-collimator-array%2F[/a]

#optical #array <br>Connecting Integrated <br>Micro-optical System with Fibers <br>Custom Fiber Array Units of High precision and tailored PM fiber optical assemblies for your <br>optical transimission &amp; integration needs of any system. <br> <br>Custom Fiber Array and PM Fiber Optical ComponentsProducts <br>MEISU specializes in precise custom fiber array sub-assemblies and PM fiber optical components and assemblies for different areas like integrated optics, sensoring, healthcare, spectroscopy, etc. <br> <br>With a team have more than 20 years of experience in R&amp;D and production of optical components, MEISU owns many patent techniques. All the experience and know-how in ultra-precise assembles have enabled us to effectively support our customers from designing their own fiber custom optical assemblies and sub-assembly to the final prototyping and realizing mass production. <br> <br>MEISU&#039;s original fiber optical array assembling platform offers multiple benefits over the conventional fabrication process. It allows the products with higher fiber counts, better tolerance, more variations, and lower cost to meet the needs of different clients. It simplifies the manufacturing to provide flexible solutions for not only lab R&amp;D samples but also high volume manufacture. If you want to know more about the available application of optical communication with our products, welcome to find out more information in the &quot;Solution&quot; section. <br> <br>2D Fiber Arrays <br>While the industry is asking for a higher density of optical signal transmission, 2-dimensional fiber array assembly and sub-assembly are becoming more and more vital not only for optical communication but also for other fields like astronomy. MEISU provides various types of 2D arrays with high positioning accuracy. <br> <br>Linear Fiber Array <br>The linear fiber arrays provided by MEISU allows for up to hundreds of fibers to be connected at one time. With fiber spacing as small as 62um as per the fiber diameter, the linear fiber arrays produced by MEISU can achieve good light coupling. Moreover, MEISU can also guarantee ± 0.5µm tolerance on fiber positioning. <br> <br>PM Fiber Components <br>PM optical components are to maintain the beam&#039;s original state of polarization or to transform its polarization state when connecting or coupling PM fibers. The PM fiber optical components normally play an important role in coherent optical communication and interferometric sensors. <br> <br>HT Fiber Device <br>More and more high temperature resistant optical devices are needed in silicon photonics, sensing and other high temperature harsh environment. <br> <br>Fiber Optical Switch <br>Optical switch is a key device in all-optical network, it can be widely used in optical network protection, optical signal multiplexing/de-multiplexing, optical cross connection (OXC), optical monitoring and testing etc. It is increasingly becoming the basic element of information exchange in optical network. <br> <br>Special Fibre Components <br>MEISU never stop developing&amp;manufacuring competitive fiber optical components for our clients to fullfill their needs, more is coming. <br> <br>Over the years, MEISU has supplied cost-effective precision optical solutions for numerous fields covering from optical communication to autonomous vehicles, from healthcare to aerospace, from what we are working on to some other areas we still don&#039;t know yet. <br> <br>No matter what your project is about, whether it is for the production of fiber array units or the perfect design of multi-core and lensed fiber, please reach us via email or call us at office time. We believe that with our experience and know-how, we can provide you with the most economical solutions that meet your needs. <br> <br>[a]https%3A%2F%2Fwww.meisuoptics.com%2Fproducts%2F[/a]
