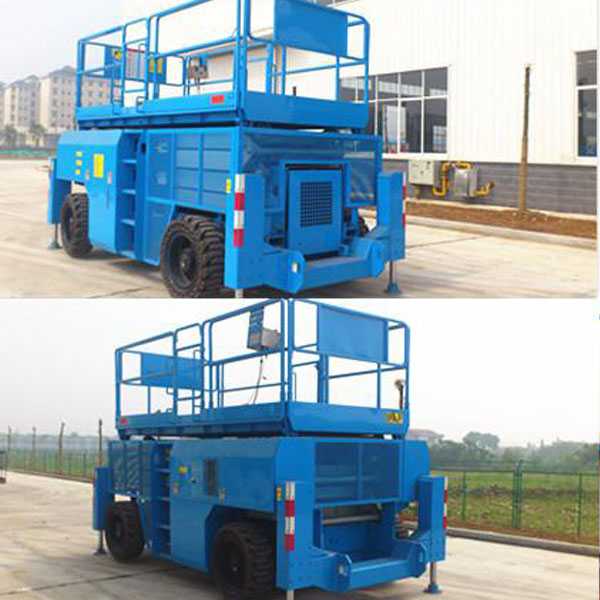

We are professional diesel engine scissor lift supplier and factory in China. We can produce the product according to your requirements. <br> <br>Product Features <br>Diesel scissor lift <br>1. Strong power: The diesel scissor lift has powerful power, and the four- wheel drive has strong climbing capacity. The scissors lift can shift high and low speeds. <br> <br>2. Draggable engine tray: The engine is installed on the tray that can be dragged out, which facilitates maintenance and repair. <br> <br>3. Active Oscillation Axle: Active oscillation axle can perceive the terrain, and can guarantee that the machine can land on four wheel even on uneven road without reducing the driving force. <br> <br>4. Large working space: The maximum size of platform extended by cylinder forward double direction can reach 6.65*1.83m. <br> <br>5. Outrigger: The hydraulic outriggers can be used to level vehicles in case of operation on uneven ground. <br> <br>Techenical feature <br>1. Controlling System <br>Both ground control and platform control panel. <br>The ground control provides the lifting feature and the platform control panel provides all functions of lifting and/or descending, turning and travelling. <br>The one handed proportional joystick made by SAUER(USA) provides flexibility, and can be satisfactory for the operators in many different situations. <br>2. Platform and platform Loading Capacity <br>The loading capacity of the platform is up to 680kg-1180kg. <br>Platform extension part highly extends the working area. <br>3. Safety Performance <br>A safety bar has attached on the 2 nearby scissors, to guarantee the safety of the serviceman while repairing. <br>For the purpose of having a more stabilized working condition, the gravity of the entire machine is located on the under-part. <br>Double acting lift cylinders with lock valves and manual emergency lowering facility. <br>The downward movement shall be automatically stopped by a safety device, Further downward movement shall only be possible after 5s delay and the speed is lower(50%). <br> <br>Configration sandard <br>1. Engine: Perkins from UK <br>2. Pump: SAUER from USA <br>Motor: SAUER from USA <br>Engine Engine <br>3. Travel reducer:PMP from Italy <br>4. Valve: Sant from Italy <br>Travel reducer Valve <br>5. Joystick: Danfoss from USA <br>6. Sensor: Meas from USA <br> <br>Specifications <br>NO Item GTJZ10B GTJZ13 GTJZ16 <br>MEASURMENTS <br>1 Working height maximum 11.78m 14.82m 17.86m <br>2 Platform height maximum 10.08m 13.12m 16.16m <br>3 A1 Platform Length (stowed) 3.95m <br>4 A2 Platform extended Length LEFT1.22m/RIGHT1.52m <br>5 B Platform Width 1.83m <br>6 C Widths 2.28 <br>7 D Height-stowed 2.74m 2.95m 3.16m <br>8 E Length-stowed 4.03m/4.9mwith outriggers 4.03m/4.9mwith outriggers 4.9m with outriggers <br>9 F Wheel base 2.84m <br>10 G Ground clearance center 0.23m <br>PRODUCTIVITY <br>11 Gradeability 50% <br>12 Lift capacity 1180kg 680kg 680kg <br>13 Lift capacity(extension deck) 230kg <br>14 Turning radius (outside) 5.2 m <br>15 Tire 33*12-20 solid tire <br>16 Travel speed Stowed 6.3km/h <br>17 Raised or extended 1.1km/h <br>Power <br>18 Power 38KW <br>19 Fuel tank capacity 115L <br>20 Hydraulic tank capacity 170L <br>21 Drive and turn mode 4WS 4WD <br>Weight <br>21 Weight 5850kg 6350kg 7850kg <br>22 STANDARDS COMPLIANCE EN280.JG/T5101.Q/ADZV001-2008 <br> <br>We can provide types of articulated forklift for sale, if you are interested, please leave us a message. <br>#engine#scissor#lift <br>[a]http%3A%2F%2Fwww.assistant-forklift.com%2Fproducts%2Fdiesel-engine-self-propelled-scissor-lift.html[/a]

Narrow Aisle Reach Forklift CQDH15C (double scissors) Detailed Specifications <br>Model CQDH15C (double scissors) <br>Drive type battery battery <br>Load capacity/Rated load Q(kg) 1000 1000 <br>Load centre distance c(mm) 500 500 <br>Load distance, centre of drive axle fork x(mm) 159 135 <br>Tyre size, front mm 280×82+160×60 280×82+160×60 <br>Tyre size, rear mm 125×82(4) 125×82(4) <br>Wheels, number front rear(x=driven wheels) 1+2 1+2 <br>Tilt of mast/fork carriage forward/backward) Grad 2/5 2/5 <br>Height, mast lowered h1(mm) 2375 2125 2625 2675 2345 2185 2505 <br>Free lift h2(mm) ~ ~ ~ 2000 1700 1575 1825 <br>Max. lift height h3(mm) 3500 3000 4000 4500 5000 5500 6000 <br>Height, mast extended h4(mm) 4535 4035 5035 7035 6035 5535 6535 <br>Height of overhead guard h6(mm) 2246 2246 <br>Overall width b1/b2(mm) 1308 /1040 1370/1040 1308/1040 <br>Overall length l1(mm) 2585 2609 <br>Length to face of forks l2(mm) 1515 1539 <br>Fork Dimension s/e/l(mm) 35/100/1070 35/100/1070 <br>Reach distance l4(mm) 1200 1200 <br>Fork height, lowered h8(mm) 130 130 <br>Distance of “X”(see below diagram) mm 350 350 <br>Overall length (excluding the fork) mm 1868 1868 <br>Ground clearance, centre of wheelbase m2(mm) 65 65 <br>Aisle width for pallets 1000×1200 crossways Ast(mm) 2951 2971 <br>Aisle width for pallets 800×1200 lengthways Ast(mm) 3034 3056 <br>Turning radius Wa(mm) 1718 1718 <br>Travel speed, laden/unladen Km/h 6.5/7 6.5/7 <br>Lift speed, laden/unladen m/s 0.135/0.16 0.135/0.16 <br>Lowering speed, laden/unladen m/s 0.15/0.12 0.15/0.12 <br>Battery voltage, nominal capacity K5 V/Ah 24/420(560) 24/420(560) <br>Battery weight kg 450 450 <br>Battery dimension l/w/h mm 770x336X610 770x336X610 <br>Service weight (with battery) kg 2530 2480 2590 3030 2830 2730 2930 <br> <br>Now the price of pallet stacker forklift is reasonable, if you have needs, please contact us. <br>#narrow#aisle#reach#forklift <br>[a]http%3A%2F%2Fwww.assistant-forklift.com%2Fproducts%2Fnarrow-aisle-lift-truck.html[/a]

We are professional Manual Stacker SDJAS500-SDJAS1000 supplier and factory in China.We can produce the product according to your requirements. <br> <br>Advantages <br>: <br>· Robust Steel profile construction. <br>· An economical lift to handle tasks from transporting dies and moulds skids and pallets. <br>· Sturdy and compact enough to fit through standard doors and to operate in congested areas. <br>· Precision engineered for smooth performance and exceptional durability. <br>· Lifting function operated by foot and hand controls. <br> <br>Manual Stacker SDJAS500-SDJAS1000 Specifications <br> <br>Sand Washing BOP Stack <br>Size:3&quot; <br>PN: 3000PSI-15000PSI <br>Type:Manual, Hydraulic <br>Ends:Top Thread, Bottom Flange <br> <br>Manual Stacker SDJAS500-SDJAS1000 Parameters <br>Model SDJAS500 SDJAS1000 <br>Load capacity/rated load Q(kg) 500 1000 <br>Load centre distance c(mm) 400/500 400/500 <br>Fork height,lowered h13(mm) 70 70 <br>Height, mast lowered h1(mm) 2000 2050 <br>Max. lift height h3(mm) 1600 1600 <br>Height, mast extended h4(mm) 2100 2155 <br>Overall length l1(mm) 1340/1600 1300/1560 <br>Overall width b1(mm) 1500 1450 <br>Fork dimensions s/e/l(mm) 48/100/800(1060) 30/100/800(1060) <br>Distance between fork-arms b5(mm) 745 950 <br>Round clearance, laden, below mast m1(mm) 25 25 <br>Aisle width for pallets 1000×1200 crossways Ast(mm) 1975 1975 <br>Aisle width for pallets 800×1200 lengthways Ast(mm) 1915 1915 <br>Turning radius Wa(mm) 1200 1200 <br>Lift speed, laden/unladen mm/s 25 25 <br>Lowering speed, laden/unladen mm/s Manual control <br>Service weight kg 217 336 <br> <br>Now the price of manual pallet stacker for sale is reasonable, anything you need, please contact us. <br> <br>As an articulated forklift manufacturer, we will do our best to meet all the needs of customers. <br>#manual#pallet#stacker#for#sale <br>[a]http%3A%2F%2Fwww.assistant-forklift.com%2Fproducts%2Fmanual-stacker-sdjas500-sdjas1000.html[/a]

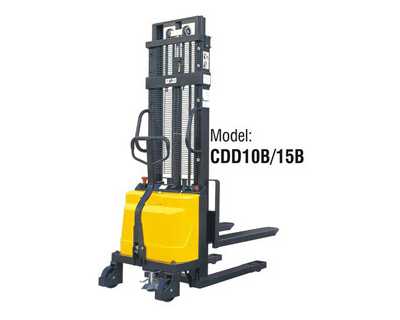

CDD-B SERIES WITH FIXED FORKS <br>Compact design with strong European steel construction. Simple and convenient lifting operating system. Light and easy manual steering system, equipped with a parking brake. Smooth control of precise lifting and lowering. Special design are available according to customers&#039; requirements. <br>Semi-electric Stacker CDD10B-CDD15BSemi-electric Stacker CDD1016BASemi-electric Stacker CDD1025BA/CDD1030BA <br> <br>CDD-B-III SERIES WITH FIXED LEGS AND ADJUSTABLE FORKS <br>Handle-castor chain assist steering system greatly reduces the labor intensity. Equipped with explosion-proof valve,ensure no sharp drop of platform and prevent operator from harm. With adjustable forks, which can be lowered to the same level of the legs. <br>Semi-electric stacker CDD10B-III/CDD15B-III/CTD15B-III <br> <br>CTD-B SERIES WITH STRADDLE LEGS AND ADJUSTABLE FORKS <br>Compact design with strong European steel construction. Simple and convenient lifting operating system. <br>Semi-electric stacker CTD10B-CTD15B <br> <br>Electric Stacker Forklift for Sale <br>Semi electric pallet stacker trucks are widely used in ground cargo, pallet movement, stacking and short distance transportation. In many places, such as factories, warehouses, logistics centers, it is safe and efficient to use all-electric stacking trucks to stack and transport pallets. Especially in some narrow corridors, elevators, assembly lines and other workplaces, it can fully reflect its excellent flexibility, tranquility and environmental protection performance. It is suitable for heavy-duty and long-term cargo transshipment. It can greatly improve the efficiency of cargo handling and reduce labor intensity. Electric stacker truck is super thin streamlined, and with small turning radius, strong body, light and flexible movement. It also has the advantages of no noise, no pollution, long working time for one charge, reliable performance. Semi electric stacker truck is also called electric loading and unloading truck, electric lifting truck and electric stacking truck. <br> <br>Characteristics of semi-electric stacker truck <br>1. Compact structure, small occupation, light self-sufficiency, convenient maintenance, flexible operation, economic and practical. Suitable for heap height and <br>handling operations. <br>2. Power lifting, the speed of lifting can be controlled. <br>3. Electric stacker truck adopts imported hydraulic power unit, which is integrated and low noise. <br>4. The door strength of this semi electric forklift truck is made of high-strength imported materials. <br> <br>Now the price of self loading forklift is reasonable, if you have needs, please contact us. <br>#semi#electric#stacker#truck <br>[a]http%3A%2F%2Fwww.assistant-forklift.com%2Fproducts%2Fsemi-electric-stacker%2F[/a]
