A cable assembly is a bunch of wires or cables grouped by a heavy-duty t <br>thermoplastic rubber, or vinyl material sheath. Every cable assembly is shielded by a sheath material such as PVC, fluorocarbons, and elastomers to protect the operating environment. lt also makes it more organized when in use. Cable assemblies typically have connectors at each end of the cable. [a]https%3A%2F%2Fwww.hitechpcba.com%2Fpcb-assembly[/a]

Hitech Circuits is a trusted pcba supplier in China. Why choose Hitech Circuits? Because we value our product quality more than our customers – We do value our customers as well! The product will not be sent out until it has passed through multiple quality inspection processes. And customers can come to our factory to visit at any time to ensure the quality of service. [a]https%3A%2F%2Fwww.hitechpcba.com%2F[/a]

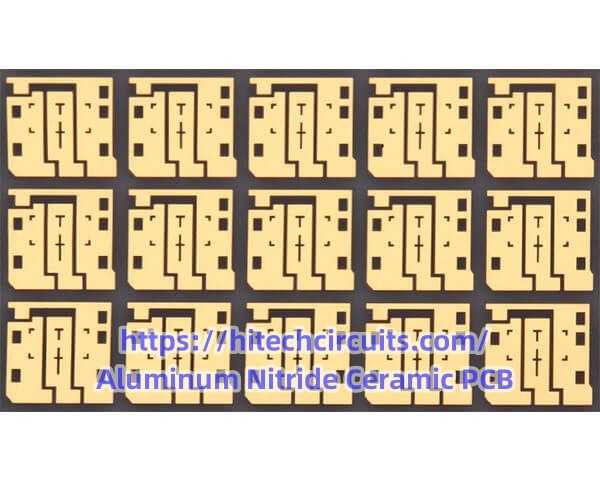

Aluminum Nitride (AlN) is currently the best ceramic substrate material accessible. Its properties of high thermal conductivity (170 W/mK) combined with being a strong dielectric and a low expansion rate (CTE) make it the material of choice today as a substrate or package for high-power LEDs, ICs, sensors and many other components and circuits. [a]https%3A%2F%2Fwww.hitechpcba.com%2Fceramic-pcb[/a]

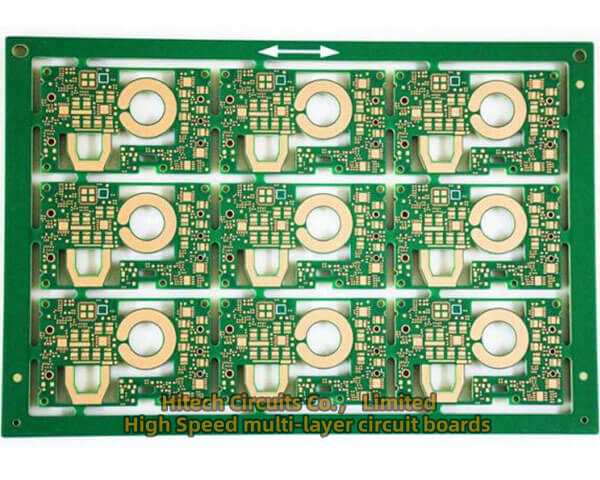

High-Speed multi-layer circuit boards for electronic digital which are composed of FR4 S1000-2 with surface treatment of immersion gold. The minimum hole diameter only 0.2mm. The high speed pcb is widely used in electronic digital. Hitech is a reliable pcb manufacturer in China, any item you need, feel free to contact us. You can email [email protected] <br> <br>Technical Parameters <br>Product type: Mutilayer circuit boards <br>Material: FR4 S1000-2 <br>Application field: Security <br>Layer/thickness: 12L/1.0mm <br>Surface treatment: Immersion gold <br>Line space/Width: 4/4mil <br>Minimum hole diameter: 0.2mm <br>Technical feature: Fine line impedance control <br> <br>For knowing more information about our products, please visit [a]https%3A%2F%2Fhitechcircuits.com%2F[/a]

A first article inspection (FAI) is an inspection process that verifies that a product meets all the engineering and design requirements specified in the blueprint. During a first article inspection, a trained inspector will go over the product with a fine-tooth comb and compare it with the blueprint to ensure that all specifications such as dimensions, tolerances, and materials are met. <br> <br>There are many benefits to choosing an experienced first article inspection service provider like Hitech Inspection. Our team has years of experience in performing First article inspections across Asia, Europe, and Africa. With our fast and reliable service, we can ensure that your first article will be inspected accurately and the inspection report will be available to you in 24 hours or less.  <br>  <br>Contact us today to learn more about our first article inspection services! [a]https%3A%2F%2Fwww.hitechpcba.com%2Fpcb-assembly[/a]

Hitechpcba can transfer your excellent concept into product quickly as long as you send us requirements (such as functions, shape, drawings etc.). We can complete PCB design and make prototype accordingly. Design job includes schematics, layout, components selection, circuit simulation and software etc. In order to shorten your timeline, we comply with strict standards to handle PCB design phases, such as from requirement draft, alpha &amp; beta review to volume production. In this case, your PCB design tasks go smoothly under our project management team. <br> <br>Hitechpcba has the full selection of design software, such as Cadence Allegro\ORCAD, Mentor WG\PADS, Protel99\ Altium Designer (AD)..etc. Please let us know which EDA tools you want use in your project, our most frequently used software are Eagle, Altium Designer, Protel( protel pcb design), PADS. <br> <br>When you are the wiring, the first time needs to finish some important, several signal lines, such as DDR, HDMI, Network Port, TUNER, Panel, CA, USB, Audio and Video and so on. you can fine-tune the layout then get traces are as smooth as possible.

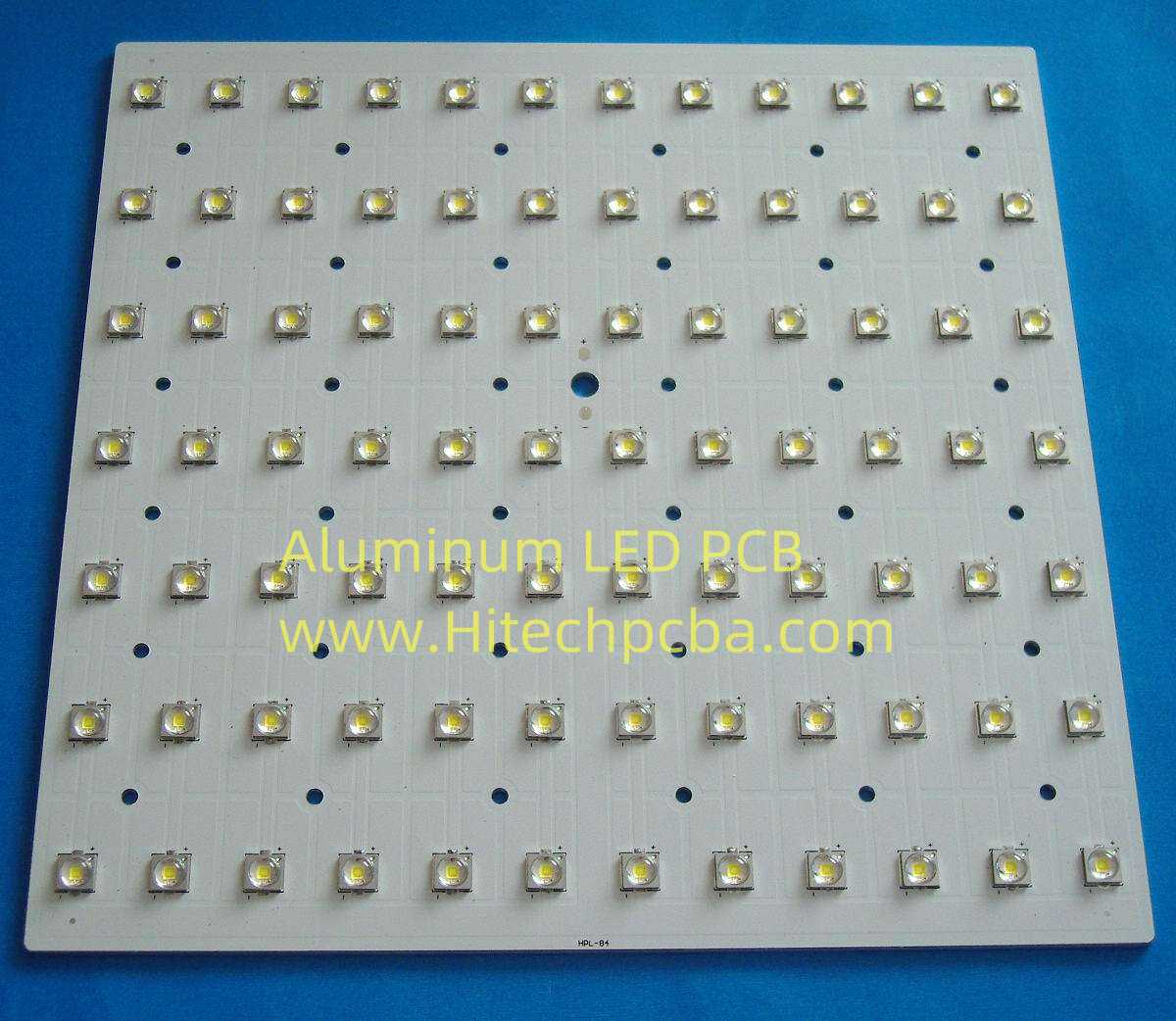

Aluminum LED PCB substrate is a metal - based copper-clad sheet with good heat dissipation. A single panel is generally composed of three layers of structure, namely the circuit layer (copper foil), insulation layer and metal base layer. It is commonly found in LED lighting products. There are two sides, the white side is used to weld the LED pins, and the other side is the natural color of aluminum, which is usually coated with heat-conducting gel and then in contact with the heat-conducting part. Among all metal core PCBS, Aluminum LED PCB is the most common type. The base material consists of an aluminum core and standard FR4. It features a thermal cladding that dissipates heat in an efficient manner while cooling components and improving the overall performance of the product. Currently, aluminum-backed PCBS are considered solutions for high power and tight tolerance applications.

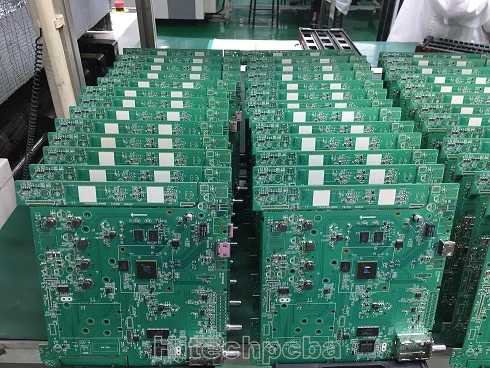

As leading one-stop PCB Assembly services provider in China, Hitech Group offers high quality, cost effective, express PCB board products and provides PCB manufacturing, electronics assembly manufacturing, components sourcing, Box build assembly and PCBA testing services for our customers. <br> <br>For low volume PCB assembly projects, our quick turn PCB assembly delivery time goes from 8 hours to 48 hours when components are ready. <br> <br>No matter you are an electrical engineer, a product designer, a system integrator or a maker looking for PCB fabrication and PCB assembly, or PCB manufacturing and assembly, or electronic assembly services (electronic PCB assembly) ,or a low cost PCB assembly house, Hitech Circuits PCB assembly team will be your perfect PCB assembly house in China. <br> <br>[a]https%3A%2F%2Fwww.hitechpcba.com%2F[/a]
