#constant #acceleration #tester <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fsrs-shock-response-spectrum-testing-equipment%2F[/a] <br> <br>WHAT IS SHOCK RESPONSE SPECTRUM? <br>The traditional shock test (also known as the classic shock test) mainly simulates the actual shock environment by the shock effect produced by a simple pulse. This method has great limitations, there is a trend to be replaced by shock response spectrum (SRS) standard srs test. <br> <br>The shock response spectrum refers to a series of single-degree-of-freedom mass damping systems. When the public foundation is subjected to shock excitation, the response peak of each single-degree-of-freedom system is drawn as a function of the natural frequency of the single-degree-of-freedom system. Simply put, it is a curve drawn by taking the natural frequency of a single degree of freedom system as the abscissa and the response peak value as the ordinate under the Cartesian coordinate system. <br> <br>An actual physical system can be decomposed into a number of different single-degree-of-freedom systems. For each SDOF system, the srs shock analysis and calculation are performed, and the maximum value of the system response is taken, and then a data point is formed with its natural frequency. In this way, how many sets of data points can be obtained as many SDOF systems can be decomposed into. Finally, these points are combined to get the shock response spectrum of the entire system.  <br> <br>CME provides series of SRS test equipment/shock response spectrum testing equipment at good price. Contact us now! <br>WHAT IS SHOCK RESPONSE SPECTRUM? <br>The traditional shock test (also known as the classic shock test) mainly simulates the actual shock environment by the shock effect produced by a simple pulse. This method has great limitations, there is a trend to be replaced by shock response spectrum (SRS) standard srs test. <br> <br>The shock response spectrum refers to a series of single-degree-of-freedom mass damping systems. When the public foundation is subjected to shock excitation, the response peak of each single-degree-of-freedom system is drawn as a function of the natural frequency of the single-degree-of-freedom system. Simply put, it is a curve drawn by taking the natural frequency of a single degree of freedom system as the abscissa and the response peak value as the ordinate under the Cartesian coordinate system. <br> <br>An actual physical system can be decomposed into a number of different single-degree-of-freedom systems. For each SDOF system, the srs shock analysis and calculation are performed, and the maximum value of the system response is taken, and then a data point is formed with its natural frequency. In this way, how many sets of data points can be obtained as many SDOF systems can be decomposed into. Finally, these points are combined to get the shock response spectrum of the entire system.  <br> <br>CME provides series of SRS test equipment/shock response spectrum testing equipment at good price. Contact us now! <br>Applications of Shock Response Spectrum <br>1) Used as a measure of the impact effect. Because most systems and structures can be characterized by SDOF systems, even complex equipment or structures can also use dominant frequency (that is, the frequency corresponding to the maximum value on the spectral density curve) or analog frequency (that is, how many cycles per second, unit Hz), so the shock response spectrum can be used to easily determine the response peak of the structure under shock, and draw a conclusion whether it will be damaged; <br> <br>2) For statistical analysis of shock events, a reliable specification spectrum representing the shock environment can be obtained; <br> <br>3) Used for equivalent conversion of different shock waveforms, such as converting actual complex shocks into half-sine pulses with equivalent damage potential; <br> <br>4) Used for test validity and repeatability check; <br> <br>5) It is used to guide the design of shock-bearing systems. <br> <br>For more information about reliability test equipment, please feel free to contact us!

#srs #test #equipment <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fmulti-axial-simulation-table%2F[/a] <br> <br>WHAT IS MULTI-AXIAL SIMULATION TABLE? <br>Multi-Axial Simulation Table (MAST) simulates the vibration of real-world environments in the laboratory. Element provides multi-axial vibration testing for a full range of vehicle components and assemblies, delivering the data that automotive engineers need to develop safer, more reliable, and dependable vehicles and their associated components.  <br>A multi axis simulation table is an automotive test system specifically designed for the high-frequency testing of vehicle components. It is sometimes also called a Multi-Axis Shaker Table or MAST table. <br>Multi axis simulation table can simulate acceleration and displacement outputs and reproduce key data collected on proving grounds, by providing a full six degrees of freedom (6 DOF). <br>These test systems consist of a hexapod platform with a low resonance table on top. The test system can be used to simulate any kind of vibration in all six degrees of freedom. <br>The movements of the test system are tightly controlled by a digital test controller. <br> <br>WHAT APPLICATIONS FOR MULTI-AXIAL SIMULATION TEST? <br>The Multi-Axial Simulation Table (MAST Table) is applicable for: <br>Seismic: earthquake testing <br>Aircraft, vessel, helicopters taking off and landing <br>Docking of spacecraft <br>Refueling of aerial tankers. <br>Automotive vibration <br>Simulation of ground, ship or floor movements <br>Imbalance in loading and unloading and wind <br>Long-term swaying of the ship <br>Modal analysis <br> <br>WHAT’S THE MAIN APPLICATION OF 3-DOF SIMULATION TABLE? <br>KRD60 3-DOF simulation table is the key equipment for dynamic performance test of shipboard equipment, which is used to simulate the motion attitude of submarine and ship in the sea environment. It can also be used to test the adaptability of the main parts of the automobile to the tilting and swing environment, so as to determine the ability of the product to withstand the tilting and swing of the specified severity level and the integrity of the structure. It is widely used in the performance test of shipborne photoelectric equipment, navigation equipment, gyroscope and platform compass.  <br> <br>Multi axial simulation tables can save a lot of manpower, material and financial resources, and shorten the development cycle of products. Using this technology to develop different simulators can be applied to aviation, aerospace, weapons and other industries. Tilt and sway is a basic environment for machinery, electrical and electronic products placed on water equipment (including ships, seaplanes, and offshore oil exploration platforms). All types of machinery, electrical and electronic products placed on water equipment must withstand the effects of the environment. <br> <br>For more information about reliability test equipment, please feel free to contact us!

#mast #table <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fkrd70-hydraulic-vibration-shaker%2F[/a] <br> <br>KRD70 series hydraulic vibration shaker is an electronic hydraulic servo vibration test machine with the advantages of fast response speed, high anti-load rigidity, flexible control mode, high performance, and high reliability. <br>The hydraulic vibration shaker is a device that converts and amplifies the energy of the electro-hydraulic servo valve and converts the energy of the high-pressure liquid into a dynamic test system for the reciprocating motion of the simple actuator. Similar to the function of the electric hydraulic vibration table, it can complete the functions of sinusoidal vibration, random vibration, transient shock, and road spectrum simulation. KRD70 series hydraulic vibration shaker is widely utilized for all kinds of products in aviation, marine, automotive, earthquake, packaging, transportation, and other industries. The vibration shaker system complies with the standard MIL STD-810, ASTM D4728, IEC 60068-2, and ISTA relevant standards. <br> <br>FEATURES OF KRD70 HYDRAULIC VIBRATION SHAKER <br> <br>Vertical, horizontal, bi-directional, or multi-axis vibration forms are available <br> <br>It is especially suitable for vibration tests requiring low frequency and high force <br> <br>Multiple functions: can complete sine, random, and road spectrum simulation <br> <br>Windows-based stable control system, with a variety of test control functions <br> <br>Equipped with a data interface, it is convenient to expand remote control and has remote real-time display system data and protection functions <br> <br>With over displacement, over current, overload, overheating, cooling system protection circuit, leakage protection, drive power supply protection

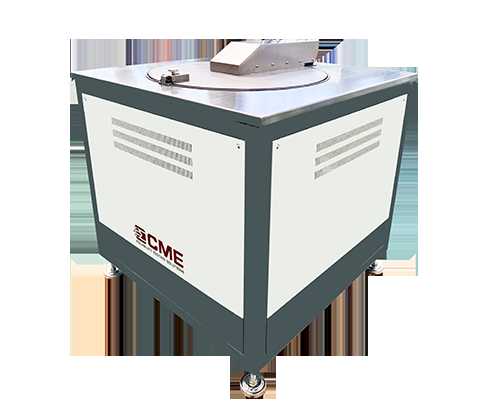

#hydraulic #vibration #table <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fkrd30-constant-acceleration-tester-box-type%2F[/a] <br> <br>RD30 Constant Acceleration Tester (Box Type) <br>KRD30 series constant acceleration tester is a box-type structure centrifugal constant acceleration test machine with the characteristics of reliable operation, convenient maintenance, multiple functions, and easy control and adjustment. This constant acceleration test equipment is applicable to provide a test of structural integrity for electronic components, small components, and other electrical and electronic products whether the structure adaptability and performance are in good condition when subjected to forces produced and the satisfactory performance of components, products, by steady-state acceleration environments (other than gravity), such as occur in moving vehicles, especially flying vehicles, rotating machine and projectiles. KRD30 series centrifugal constant acceleration testing machine can also be used to determine the effect of constant acceleration on electronic devices and also be used as a high-stress test to determine the structural strength limit values. <br> <br>For more information about mechanical test equipment, please feel free to contact us!

#hydraulic #vibration #shaker <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fkrd200-center-of-gravity-measurement-system%2F[/a] <br> <br>The center of gravity (CG) (or center of mass) of an object is the average location of the weight (or mass). It&#039;s a crucial mass property in the fields of aerospace, defense, automotive and related industries for the performance and safety of products. An object suspended from its center of gravity in space will be perfectly balanced. The center of mass is a useful reference point for calculations in mechanics that involve masses distributed in space, such as the linear and angular momentum of planetary bodies and rigid body dynamics. <br>The mass and center of gravity measurement system adopts the multi-point support method, so the specimen’s mass and center of gravity can be simultaneously measured in the same measurement system. Different fixtures are installed to measure various irregular objects (such as missile launchers, aircraft black boxes, electronic components, etc.); the V-shaped support is installed on the measuring platform to measure various rotations (such as missiles). <br>Catalogue Download Get A Quote <br>FEATURES OF KRD200 CENTER OF GRAVITY MEASUREMENT SYSTEM <br> <br>The multi-point support method is applied in the measurement system where there is not a high requirement for leveling. It is necessary to conduct a leveling procedure when the equipment is first installed and not need to level again in the later measurement process, which is easy to operate. <br> <br>The linear guide rail is designed for the table, where the two brackets can move back and forth smoothly and have high positioning accuracy. It is flexible and easy to attach the specimen to anywhere in the bracket. <br> <br>It is convenient to fix the large-diameter and cone specimen to the installation bracket, which can be adjusted horizontally and vertically. Furthermore, the lead screw can adjust the position of the left and right brackets to easily level the conical specimen on the brackets. <br> <br> <br>High-precision calibration software for the measurement system can accurately calibrate and assess sensor location and system precision to implement self-calibration. <br> <br>The mass, center of gravity, and centroidal deviation can be measured as it is necessary to hoist the product once. The operator only needs to turn the specimen to 0°, 90°, 180°and 270° without any other operation in the course of measurement, which takes up a short time, offers efficiency, and requires little labor  <br> <br>For more information about vibrating shaker table, please feel free to contact us!

#constant #acceleration #tester <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fkrd11-pneumatic-vertical-shock-test-machine%2F[/a] <br> <br>KRD11 is a fully automatic pneumatic shock test machine. It is vertical shock test equipment with a novel design, high degree of automation, simple operation, and convenient maintenance. It is used to measure and determine the impact resistance of products or packaging and assess the functional reliability and structural integrity of the test product in a shock environment. KRD11 series pneumatic shock test system meets the requirements of both shock and bumps test, shock testing waveform including conventional half-sine wave, post-peak sawtooth wave, trapezoid wave, to realize the shock wave and shock energy that the product is subjected to in the actual environment, thereby improving the system or optimizing the structure of the product. This equipment meets standards of IEC68-2-27, MIL-STD-202, MIL-STD-750, MIL-STD-810, MIL-STD-883, etc. <br>Catalogue Download Get A Quote Watch The Video <br>FEATURES OF KRD11 PNEUMATIC VERTICAL SHOCK TEST MACHINE <br> <br> <br>Pneumatic drive, simple structure and high reliability, without hydraulic leak risk. <br> <br> <br>Pollution free, without hydraulic leak risk and keep the environment clean. <br> <br> <br>Pneumatic drive greatly improves the shock test efficiency, maximum shock rate up to 120 times / min. <br> <br> <br>Impact testing for small pulse lower to 0.3ms. <br> <br> <br>Shock testing machine with high acceleration is up to 3000g. <br> <br> <br>It can easily realize large shock pulse width and small overload test. <br> <br> <br>With a fast shock rate comparing to motor or hydraulic driven collision-bump table, it has higher reliability and better collision-bump waveform. <br> <br> <br>The speed and rate of shock can be easily controlled by adjusting the gas pressure. <br> <br> <br>IPS-2000 shock control and measurement system can perform manual shock, continuous shock (bump test), single shock, and interval shock. <br> <br>Built-in brake mechanism ensures the safety of operation in any situation. <br> <br>TABLE OF KRD11 PNEUMATIC VERTICAL SHOCK TEST MACHINE <br>The test sample is installed on the worktable, which is guided by two high-precision sliding guides and can move up and down. The two cylinders are connected to the worktable by sliding guides. When the cylinders are inflated, the piston rod rises to drive the worktable to lift. The workbench is lifted. When it is raised to the set height, the cylinder quickly deflates, and the bottom surface of the worktable hits the waveform generator to complete a shock process. <br> <br>By adjusting the rising height of the worktable, different initial shock speeds can be obtained, and thus different shock overload values can be obtained; while changing the stiffness of the waveform generator, different pulse width values can be obtained. The structure schematic diagram is shown in following figure:   <br> <br>For more information about multi axial simulation table, please feel free to contact us!

#krd30 <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fkrd10-hydraulic-vertical-shock-test-system%2F[/a] <br> <br>KRD10 series is a full-automatic hydraulic lifting vertical shock testing machine, with the state-of-the-art design, high degree of automation, simple operation and convenient maintenance. Engineers adopt it to test and measure the shock resistance of products or packaging, simulate the shock environment in laboratory to assess the functional reliability and structural integrity in a real impact environment. KRD10 series hydraulic test machine can perform various types shock waveforms to realize shock energy that the product is subjected to in the actual environment, thereby improving the system or optimizing the structure of the product. This shock test equipment meets standards of MIL-STD-810F and IEC68-2-27. Contact us for the hydraulic testing machine price! <br>FEATURES OF KRD10 HYDRAULIC VERTICAL SHOCK TEST SYSTEM <br> <br>CME is offering different types shock test equipment for mechanical shock testing: <br> <br>Windows OS: full-automatic remote-control interface, the operator only needs to input simple values, integrated IPS-2000 shock control &amp; measuring system can accurately execute the shock test <br> <br>Multi-track Guide Posts: combined with good lubricity and noise free hydraulic balance lifting system to achieve stable shifting <br> <br>Automatic Control of Lifting Height: with high accuracy and good repeatability <br> <br>Adopts the High Strength and Hardness Cast Aluminum Table: which has high first-order resonance frequency, featured with low noise and no clutter <br> <br>Inner Brake Mechanism: to avoid secondary rebound bumps and more stable positioning of the table <br> <br>Shock Waveforms: half-sine waves, post-peak sawtooth waves, or square waves <br> <br>Free-foundation: The shock testing machine comes with a high-performance buffer and vibration isolation device, just put it on the level floor, the installation is convenient <br> <br>One-stop for Measurement &amp; Analysis: various waveform tolerance bands for reference standards are built in the software, users just need to apply and start, customized test report will be generated after the test. <br> <br>TABLE OF KRD10 HYDRAULIC VERTICAL SHOCK TEST SYSTEM <br>The basic body of the shock tester table is KRD10 series hydraulic lifting vertical shock tester, which is a free-falling vertical shock tester with hydraulic lifting and hydraulic braking. It is composed of shock table body, hydraulic source, electrical control, etc. <br> <br>The table platform includes: working table, two guide rods, frame, air spring support system, lifting cylinder, displacement sensor, damper, hydraulic locking mechanism, etc. <br> <br>The shock table adopts hydraulic drive, lifting cylinder lifting, high-pressure oil brake positioning, free fall, high-pressure oil-liquid brake to prevent secondary impact. The structure schematic diagram and pictures are shown in following figure: <br> <br>DUAL MASS SHOCK AMPLIFIER OF KRD10 HYDRAULIC VERTICAL SHOCK TEST SYSTEM <br>The shock amplifier is a device that uses the rebound energy of the ordinary impact shock table to realize the opposite impact between the servo table and the seat on the amplifier, so that the impact acceleration is multiplied. <br>WAVEFORM GENERATORS FOR KRD10 HYDRAULIC VERTICAL SHOCK TEST SYSTEM <br>KRD10 hydraulic shock test system is equipped with a half sine wave generator. The half-sine wave generator is mainly made of engineering rubber (considering the stiffness and cohesive force of rubber) and felt pads of various thicknesses. Different thicknesses are connected in series to form multiple stiffnesses to achieve different shock pulse widths. Optional for post-peak sawtooth wave generator which is lead cone; trapezoidal wave generator air source is high-pressure nitrogen, the pressure range is 1-10MPa, and the overload value can be adjusted between 10-100g, as shown in the following figure: <br> <br>For more information about multi axial simulation table, please feel free to contact us!

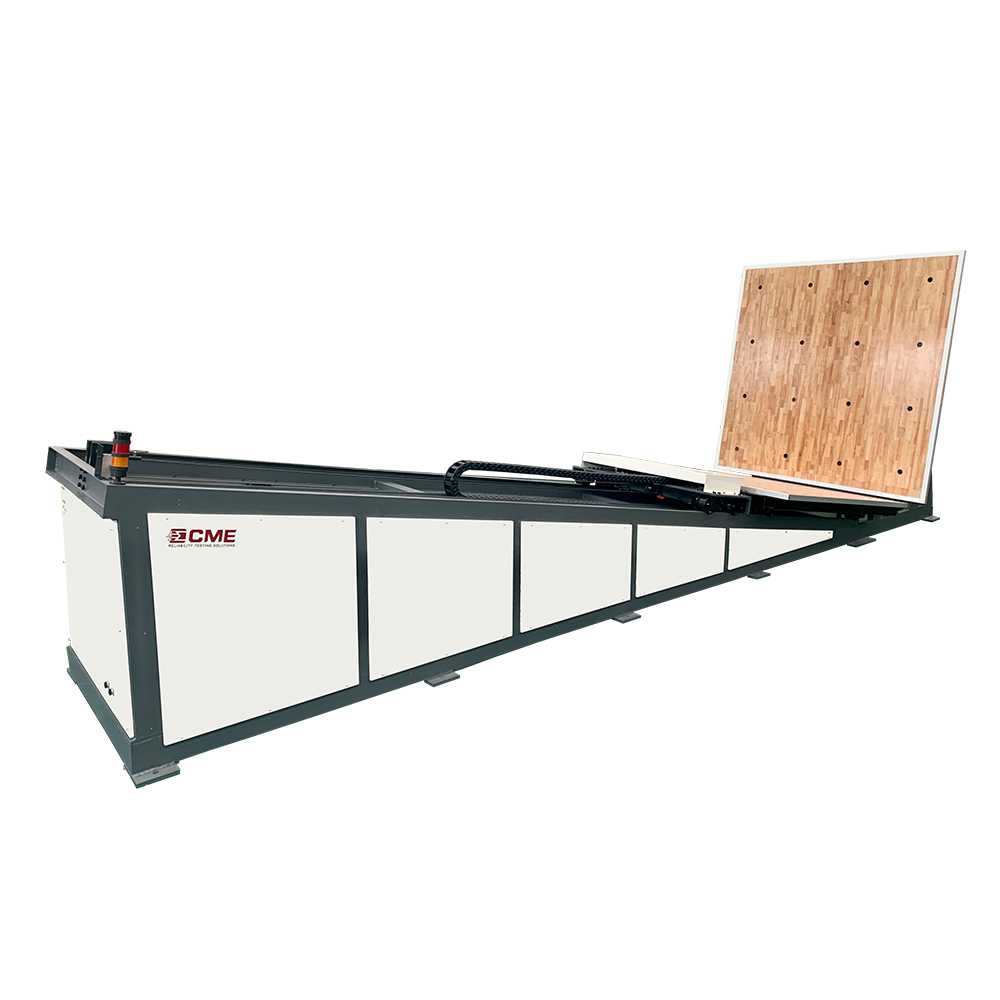

#krd10 <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fkrd100-incline-impact-tester%2F[/a] <br> <br>KRD100 series incline impact tester is a testing machine that evaluates the ability of loads to withstand inclined impacts or crushing forces due to the force of gravity. These impacts and forces can affect the stability and safety of the packaging products. KRD100 series inclined impact tester can prevent these problems from affecting the goods being transported and loaded, thereby avoiding shock damages. <br>It can simulate packaging and packaging containers, horizontal shock and bump environment in the process of transportation, handling, stacking of shelves, sliding of motors, loading, and unloading of locomotives. This inclined impact test machine is suitable for incline impact test in the industries like packaging technology centers, manufactory of packages, transportation, scientific research institutions, etc. It complies with the international standard ISO 2248 and ISTA relevant standards. <br>FEATURES OF KRD100 INCLINE IMPACT TESTERPLC-based stable control system: fully automatic remote-control interface, easy operationColor touches screen operation, which can display the end impact speedHigh-performance steel welded frame and solid wood shock panel, high strength and hardness and high impact resistance, low noiseHard wooden or iron sliding table, effectively protect the surface of the test pieceFlexible positioning scroll wheel, easy to fix the position easily and realize the required speed change valueDriven by a motor, with simple structure and high reliability, no pollutionComplete control and measurement system, simple and convenient operation, integrated control and measurementThe customer only needs to fix the machine on the ground during installation, without other complicated operations or installation <br> <br>TABLE OF KRD100 INCLINE IMPACT TESTER <br>KRD101 series packaging compression tester is the ideal equipment for the compression strength test of various packaging containers with the features of advanced technology, complete functions, reliable performance, easy control and operation. It is designed to assess the performance of a package in terms of its strength or of the protective ability it offers to its contents when it is subjected to compressive forces. KRD101 compression tester is suitable for determining the resistance to compression on materials such as boxes, paper, cardboard and corrugated fiberboard, bulk containers, pallets, components and load units. This compression tester is essential testing equipment for packaging industry, manufacturing enterprises, construction units, product quality supervision and inspection institutes, and building materials product testing departments. <br> <br>There are many vibration shaker manufacturers, but we are one of the best choices for you.

#krd100 <br> <br>[a]https%3A%2F%2Fwww.cmetechnology.com%2Fproducts%2Fconstant-acceleration-tester%2F[/a] <br> <br>WHAT IS CONSTANT ACCELERATION TEST? <br>Centrifugal constant acceleration test is performed to evaluate when components, equipment, and other electrical and electronic products are subjected to a steady acceleration environment (except gravity) such as occurs in moving vehicles, especially flying vehicles, rotating parts, and projectiles, whether the structure adaptability and integrity are good, and obtain the units&#039; electrical parameters.   <br>The constant acceleration test equipment we provide can be used for avionics and military hardware testing, satellite component testing, R&amp;D laboratory and system identification testing, product development, reliability, stress screening, etc. <br> <br>WHAT IS THE PURPOSE OF DOING CONSTANT ACCELERATION TEST? <br>01It may be used as a high-stress test to determine the mechanical limits of the package <br>Internal metallization and lead system, die or substrate attachment, and other elements of the microelectronic device. By establishing proper stress levels, it may also be employed as an in-line 100 percent screen to detect and eliminate devices with lower than nominal mechanical strengths in any of the structural elements. <br>02Constant acceleration test is performed for the purpose of determining the effects of acceleration stress on component parts <br>Semiconductor devices and microelectronic devices, have the ability to operate properly during exposure to acceleration stress such as would be experienced in aircraft, missiles, etc. <br> <br>There are many vibration shaker manufacturers, but we are one of the best choices for you.
