2 layer Rigid-flex printed circuit board composed with the material of FR4 Kapton with immersion gold finishing. Hitech can offer one stop solutions from pcb design to pcb fabrication and assembly. Rigid-flex pcb 2 layer mainly uses in mobile, power supply, lighting and telecommunications etc. Hitech is your best supplier for Rigid-flexible pcb in China, please don’t hesitate to email: [email protected] <br>Technical Parameters <br>Type: 2L Rigid-Flex Printed circuit board <br>Laminate: FR4 + Kapton <br>Board thickness: 1.6mm (0.062-inch) <br>Copper thickness: 35um (1oz) copper for all layers after finish <br>Solder resist: Black color <br>Finish: Immersion gold <br>Trace width/width: 0.13/0.13mm <br>For mobile

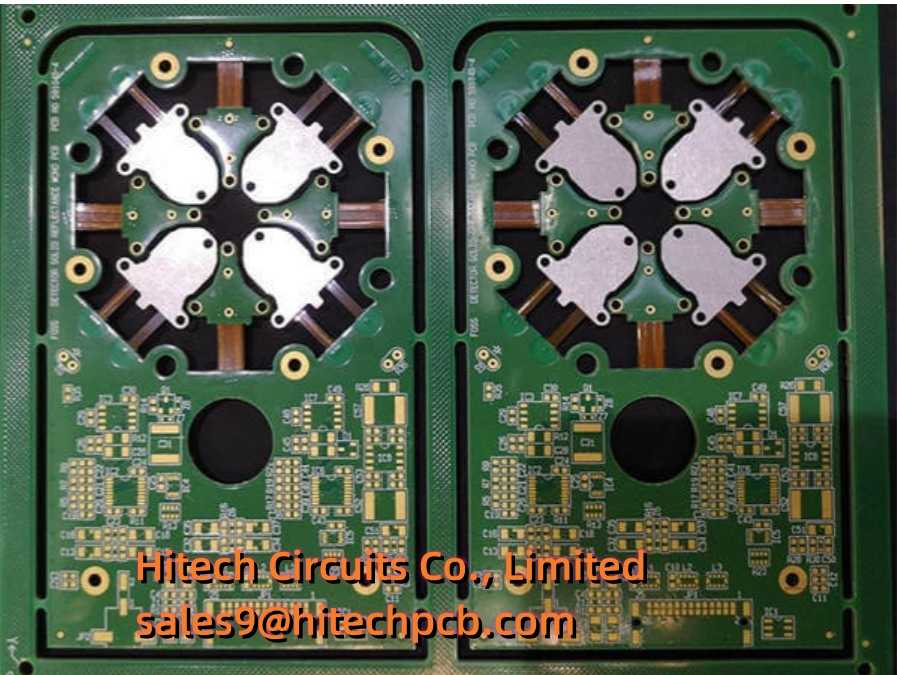

Rigid-flex PCB board, it is a circuit board that combines flexible and rigid circuit board technology in the application. Most rigid-flex boards are composed of multiple layers of flexible circuit boards, which are attached to one or more rigid boards from the outside and/or from the inside, depending on the design of the application. <br> <br>Technical Parameters <br>Product type: Rigid-flex PCB 4 layers <br>Material: PI + FR4 <br>Application filed: Electronics Equipment <br>Layer/thickness: 8L/0.127mm <br>Surface treatment: Immersion gold(ENIG) <br>Line space/width: 0.15/0.15mm <br>Minimum hole size: 0.35mm <br>Technical Feature: Special materials, <br>Rigid flex PCB technology <br>If you’re interested in our products, pls kindly email to Sandy: [email protected]

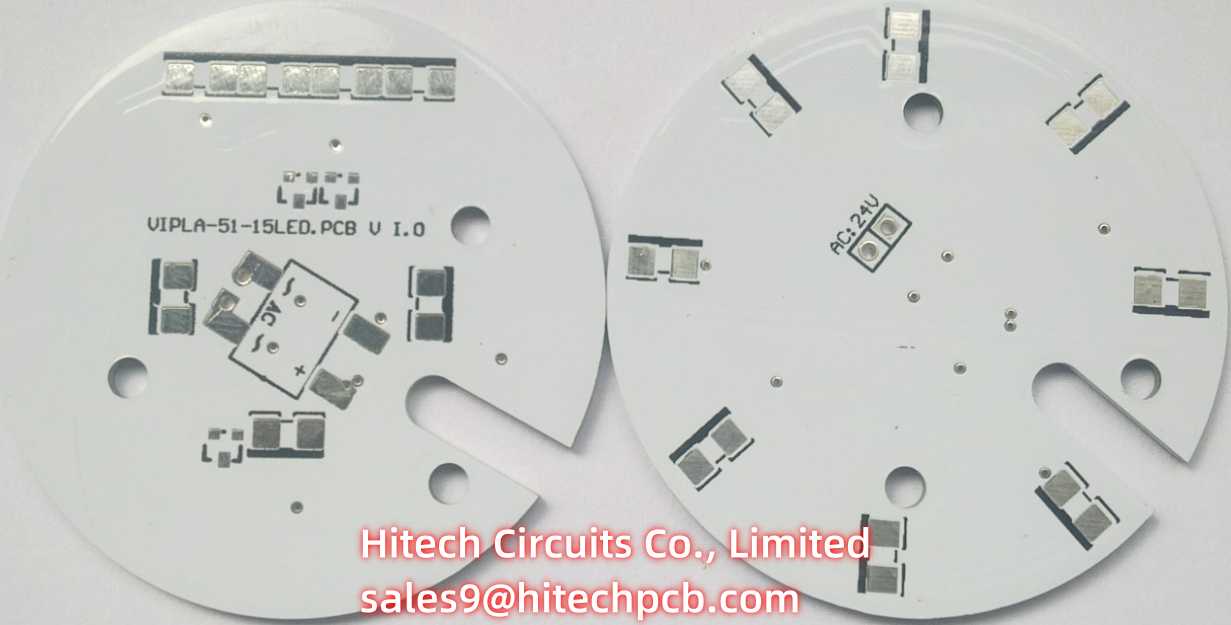

Bergquist Aluminum pcb board manufactured by Hitech, the Thermal Clad circuit board materials are available from The Bergquist Company in four different thermal conductivities, High Power Lighting (HPL), High Temperature (HT), Low Modulus (LM) and Multi-Purpose (MP). If you are looking are Bergquist Aluminum based pcb manufacturer in China, please contact [email protected] <br> <br>Technical Parameters <br>Bergquist aluminum pcb <br>Base Material: Bergquist material Aluminum pcb <br>Layers: 1 <br>Thickness: 1.5mm <br>Copper thickness: 1Oz <br>plating process: Immersion gold <br>Description: LED MPCB

Bergquist Aluminum pcb board manufactured by Hitech, the Thermal Clad circuit board materials are available from The Bergquist Company in four different thermal conductivities, High Power Lighting (HPL), High Temperature (HT), Low Modulus (LM) and Multi-Purpose (MP). If you are looking are Bergquist Aluminum based pcb manufacturer in China, please contact [email protected] <br>Technical Parameters <br>Bergquist aluminum pcb <br>Base Material: Bergquist material Aluminum pcb <br>Layers: 1 <br>Thickness: 1.5mm <br>Copper thickness: 1Oz <br>plating process: Immersion gold <br>Description: LED MPCB

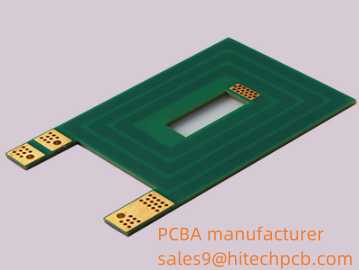

6L heavy copper core pcb consist of FR-4 Tg170℃ S1000-2, board thickness is 2.40mm. Besides that the large amount of copper plating forms high-current circuits and control circuits, and a very thick and straightforward whisker structure can be observed. The large amount of copper in the pcb promotes the association with standard circuits. Brings higher current to the circuit board and transfers heat to the external radiator. <br>Technical Parameters <br>6L Heavy copper core PCB <br>Layer: 6L <br>Material: FR-4 Tg170℃ S1000-2 <br>Size: 206.78*111.70mm <br>Board thickness: 2.40mm <br>Surface finished: HASL <br>Copper thickness: Inner layer 3 Oz, out layer, 3Oz <br>Min through hole: 0.50mm <br>If you’re interested in our products, pls kindly email to Sandy: [email protected]

Hitech high reflectivity and high power 5730 LED square mirror COB aluminum pcb with driver integrated surface light source, design the light-emitting area and shape size of the light source according to the product shape and structure. <br>Technical Parameters <br>Product type: COB Aluminum PCB <br>Material: Aluminum plate +high thermal insulation material <br>Layer/Thickness: 1L/1.6 mm <br>Outer Copper:/ 1.5 OZ <br>Surface treatment: HASL LF <br>Min Line Width: ≥ 0.3mm <br>Min Line Space: ≥0.25mm <br>Min Hole: ≥3 mm <br>Solder Mask: White X 1 side <br>Technical featuer: special materials <br>Application: Lamps and lanterns <br> <br>LED COB Aluminum PCB features a square mirror design with integrated driver surface light sources for maximum power and energy output without producing excess heat or damaging other components. Email [email protected] if you are looking for reliable LED COB Aluminum PCB.

Power pcb board, 6 layers heavy copper pcb with immersion gold surface finishing, due to their heavy copper design, the pcb is good than other circuit boards. Lightweight structure, excellent electrical performance, improve the durability of pcb, these are particularly beneficial for power devices. <br>Technical Parameters <br>6L Heavy copper PCB <br>Layer: 6L <br>Material: FR-4 Tg150 <br>Size: 70.8*76.2mm <br>Board thickness: 2.0mm <br>Surface finished: Immersion gold <br>Copper thickness: Inner layer 3 Oz, out layer, 3Oz <br>Min through hole: 0.6mm <br>Position control systems <br>If you’re interested in our products, pls kindly email to Sandy: [email protected]

6L heavy copper core pcb consist of FR-4 Tg170℃ S1000-2, board thickness is 2.40mm. Besides that the large amount of copper plating forms high-current circuits and control circuits, and a very thick and straightforward whisker structure can be observed. The large amount of copper in the pcb promotes the association with standard circuits. Brings higher current to the circuit board and transfers heat to the external radiator. <br>Technical Parameters <br>6L Heavy copper core PCB <br>Layer: 6L <br>Material: FR-4 Tg170℃ S1000-2 <br>Size: 206.78*111.70mm <br>Board thickness: 2.40mm <br>Surface finished: HASL <br>Copper thickness: Inner layer 3 Oz, out layer, 3Oz <br>Min through hole: 0.50mm <br>If you’re interested in our products, pls kindly email to Sandy: [email protected]

Rogers RO4350B or RO4450 is the normal raw materials for high frequency PCB ( Rogers PCB ) <br>Basically, Rogers Corporation is the company that manufactures the laminate materials to be used in high-frequency circuit boards for high functioning gadgets. Usually, Rogers pcb finishing in immersion sliver. <br> <br>Rogers PCB Ro4350B high frequency PCB <br>Nearly all the circuit boards are made of Flame Retardant level 4 or FR4 materials which is a glass fiber and mix of epoxy composite laminated with copper foil on one or both sides. <br>Rogers sells the FR-4 core with copper laminates for the PCB, most importantly for the cores to have better frequency properties. <br>In some cases, they are even expensive than the fiberglass but less glossy at high frequencies which makes it ordinary for the RF circuit boards. <br>The Rogers PCBs are quite different from the general standard PCB and the reason is they have no glass fiber in the middle and mostly are ceramic-based. <br>If you’re interested in our products, pls kindly email to Sandy: [email protected]
