China Segmental Ball Valve <br>The adjustment performance of segmented ball control valve is the best among different types of ball valves, the flow characteristics are equal percentages, and the adjustable ratio is up to 100:1. The fisher segmented ball valve has a shearing effect between the V-shaped incision and the metal valve seat, which is especially suitable for media containing fibers, small solid particles, slurry and other media. For more more fisher segmented ball valve specifications request, please contact with Utmost control valve manufacturers in china. <br> <br>Segmental Ball Valve Technical Specification <br>Size: 1/2&quot;~16&quot; <br> <br>Pressure: Class ANSI #150~300, PN10~PN64 <br> <br>Ball segment valves body material: Carbon steel, Stainless steel, or others <br> <br>Standard compliance: B16.34, DIN3202 or equivalents <br> <br>End connections: Flanged Ends <br> <br>Direct mounting with pneumatic or electric actuators <br> <br>Full port or regular bore; double block and bleed <br> <br>Segmental Ball Valve Datas <br>Performance Parameter of V Type Ball Valve <br>Size range DN 25~250mm NPS 1”-10” (Wafer type) <br> DN 25~500mm NPS 1”-20” (flange type) <br>Pressure rating PN 10/16/25/40/63 <br>ANSI 150/300/600 <br>Operating temperature Hard seal -29...+450 degrees Celsius <br>Sealing class Hard seal Class IV seal <br>Soft seal Class VI seal <br>Body material cast steel, stainless steel, special material <br>Valve core/stem material stainless steel, special material <br>Seat material: stainless steel surfacing hard alloy, PEEK, PCTFE, Deweilong (flange type) <br> Stainless steel surfacing hard alloy (wafer type) <br> Structure length ISA S75.04, IEC/DIN 534-3-2 (flange type) <br> Haidun Factory Standard (Wafer Type) <br>Flange standard GB/T 9113.1, JB/T 79.1, HG 20592,ASME B 16.34, ISO 7005 (other connection sizes can be customized on demand) <br>Application range Pulp and paper, sewage treatment, food and beverage, chemical industry, energy industry, steel industry, etc. <br> <br>If you want to buy pneumatic segment ball valve, please contact us. <br>#fisher#segmented#ball#valve <br>[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Fsegmental-ball-valve%2F[/a]

China Pneumatic Actuator <br>UTMOST, as a professional pneumatic actuator supplier, pneumatic actuator manufacturer, pneumatic actuator factory in China, sticks to providing high performance different types of pneumatic actuators at a very attractive price. UTMOST China pneumatic actuator has a compact valve design without external gas line, pipe, simple and firm structure, with small size and lightweight, unique pneumatic actuator designd spindle prevents the environmental corrosions and also enhance the sealing effect, extend the life span, small-diaphragm house volume, high sensitive response, unique diaphragm clamping structures ensure reasonable diaphragm compression, easy to maintenance, various spring ranges, widely use, and Carbon steel yoke with high performance and more robust structure. Pneumatic actuator has a compact design without external gas line, pipe, simple and firm structure. Welcome to contact our China pneumatic actuator valve manufacturers for more information on valve control systems. <br> <br>Pneumatic Actuator Design Datas <br>Series UT <br>Diaphragm effective area 320/720cmV1510cm2 <br>Stroke 20-120mm <br>Control signal 6 bar max <br>Materials Yoke： Carbon Steel <br> Spindle： 1.4122/1.4571 <br> Spring： 55CrSi (standard other material on request) <br> Diaphragm： NBR <br>Operating temperature -20 to +80 °C {Option -40 to + 80lC ) <br>No. of springs 3-12 <br>Control force spring max. 63-40 kN <br>Control force air max. 14.4- 59 kN <br> <br>As a china valve supplier, we will do our best to meet all the needs of customers. <br>#pneumatic#actuator#factory <br>[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Fpneumatic-actuator%2F[/a]

China Pneumatic Actuated Ball Valve <br>The pneumatic 3 way ball valve from UTMOST pneumatic ball valve factory can be used under extremely harsh application conditions, such as high temperature, high pressure, high frequency, abrasion, corrosive medium, and crystalline medium. The stainless steel pneumatic ball valve has its own characteristics and advantages, such as short opening and closing time, stable torque, long service life and reliable sealing which can ensure free opening and closing. UTMOST pneumatic ball valve factory is one of professional pneumatic ball valve manufacturers. If you want to know the pneumatic ball valve price and get oem ball valve, please contact us. <br> <br>Pneumatic Actuated Ball Valve Technical Specification <br>Size: From 2&quot; up to 24” <br> <br>Body material: Carbon Steel, Alloy Steel, Stainless steel, <br> <br>Nickel-based High-temperature Alloys, Titanium Alloys, etc. <br> <br>End connections: Flanged(FF, RF, RTJ) <br> <br>Pneumatic ball valve working pressure: From Class150LB to Class2500LB <br> <br>Standard compliance: ASMEB16. 10, ASMEB16. 34, ASMEB16.5, API 6D, API 608 <br> <br>For more other valve control system specifications request, please contact with Utmost china valve factory. <br> <br>What is the Difference between Pneumatic Ball Valve and Other Valves? <br>UTMOST pneumatic ball china valve factory&#039;s actuator operated ball valve compared with gate valves, stop valves, and our wholesale butterfly valve, the medium flow resistance is extremely low. The valve can be driven by pneumatic, electric, hydraulic, gas-liquid linkage, electric-liquid linkage, manual, etc. Utmost has its own brand of pneumatic actuator, and can also select the brand and structure of actuator according to the customers&#039; requirements. <br> <br>Pneumatic Actuated Ball Valve Datas <br>Technical Performance of Pneumatic Control valve Ball Valve <br>Structural Style BA・F, BA-S, BA-P <br>Nominal Size DN/NPS NPSl/4 (DN6&gt; — NPS24(DN600) <br>Nominal Pressure PN/ANSI Classl50 (PN20) — Class2500 (PN420) <br>Applicable Temperature -196°C — 816°C <br>Valve Housing Material Carbon Steel, Alloy Steel, Stainless steel, <br> Nickel-based High-temperature Alloys, Titanium Alloys <br>Valve Structure 2/3 Piece Type, Cast/Forged <br>Suitable Media Oxygen, Hydrogen, Slag Water, Cinder <br>Actuator Type Pneumatic Rack and Pinion Type, Pneumatic Fork Type, Electric, Electro-hydraulic, Gas-hydraulic <br>Seal Test Standards API 598, MSSSP-61, ISO 5208, ANSI/FCI 70-2 <br>Reference Standards ASMEB16. 10, ASMEB16. 34, ASMEB16.5, API 6D, API 608 <br>#pneumatic#ball#valve#factory <br>[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Fpneumatic-actuated-ball-valve%2F[/a]

China Oxygen Control Valve <br>The main difference between the oxygen flow control valve and the ordinary control valve is: one more production process requires oil-free treatment. Generally, carbon tetrachloride cleaning can achieve the purpose of degreasing and oil-free. The flow control valve for oxygen adopts a top-oriented structure and is equipped with a multi-spring actuator. As a control valve china factory, UTMOST oxygen flow control valve has the advantages during the use such as compact structure, lightweight, sensitive action, S streamline flow channel, small pressure drop loss, large valve capacity, accurate flow characteristics, and convenient disassembly and assembly. Please feel free to contact our control valve manufacturers in china for more information. <br> <br>FAQs of Oxygen Control Valves <br>QHow does an oxygen control valve work? <br>An oxygen control valve operates by adjusting the size of the opening through which oxygen passes, thereby controlling the flow rate. This adjustment can be done manually or automatically, depending on the valve&#039;s design. <br> <br>QWhat are the different types of oxygen control valves? <br>Manual valves: Operated by hand, typically using a knob or lever. <br> <br>Automatic valves: Controlled electronically or pneumatically, often integrated with sensors and control systems for precise regulation. <br> <br>Proportional valves: Adjust the flow rate based on input signals, providing a continuous range of control. <br> <br>QWhere are oxygen control valves used? <br>Medical facilities: For supplying oxygen to patients through ventilators and oxygen therapy systems. <br> <br>Industrial applications: In processes such as metal cutting and welding. <br> <br>Laboratories: For various experimental and research purposes. <br> <br>QWhat factors should be considered when selecting an oxygen control valve? <br>Flow rate requirements: Ensure the valve can handle the maximum and minimum flow rates needed. <br> <br>Pressure rating: Match the valve&#039;s pressure rating with the system&#039;s requirements. <br> <br>Material compatibility: The valve material should be compatible with oxygen to prevent reactions and ensure safety. <br> <br>Type of control: Decide between manual, automatic, or proportional control based on the application needs. <br> <br>QHow do you maintain an oxygen control valve? <br>Regular inspection: Check for wear and tear, and ensure all parts are functioning properly. <br> <br>Cleaning: Keep the valve clean to prevent contamination and blockages. <br> <br>Calibration: Periodically calibrate automatic and proportional valves to ensure accurate control. <br> <br>QWhat safety precautions should be taken with oxygen control valves? <br>Avoid oil and grease: These can react with oxygen and pose a fire hazard. <br> <br>Proper installation: Ensure the valve is installed correctly according to the manufacturer&#039;s instructions. <br> <br>Pressure regulation: Use appropriate pressure regulators to avoid over-pressurization. <br> <br>QWhat are common problems with oxygen control valves and how can they be resolved? <br>Leakage: Check and replace seals or gaskets as needed. <br> <br>Blockages: Clean the valve to remove any debris or contaminants. <br> <br>Inaccurate flow: Recalibrate or repair the valve to restore proper function. <br> <br>QHow can I tell if my oxygen control valve needs to be replaced? <br>Consistent leakage: Indicates wear that cannot be repaired. <br> <br>Inconsistent flow control: Suggests internal damage or malfunction. <br> <br>Physical damage: Cracks or corrosion that compromise the valve&#039;s integrity. <br>#flow#control#valve#for#oxygen <br>[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Foxygen-control-valve%2F[/a]

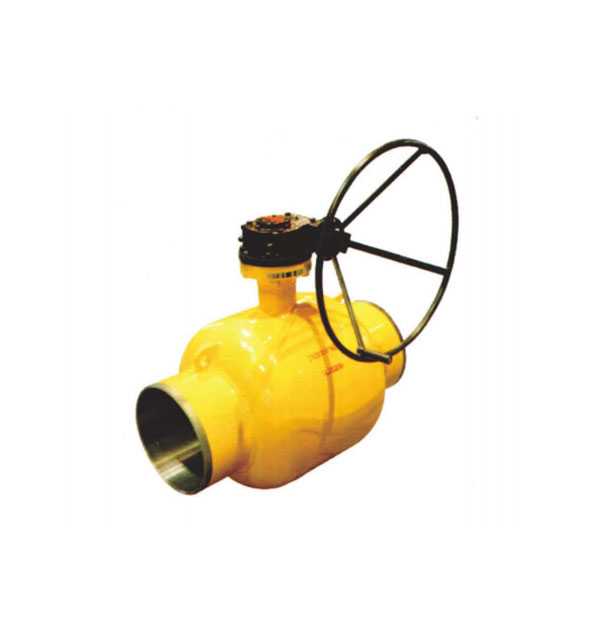

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Ffull-welded-ball-valve%2F[/a] <br>#fully #welded #ball #valve <br>China Full Welded Ball Valve <br>Since the full welded ball valve seat is composed of a carbonized Teflon seal ring and a disc spring, it has strong adaptability to pressure and temperature changes, and will not cause any slippage within the marked pressure and temperature range. The processing of the sphere is tracked and detected by an advanced computer detector, so the processing accuracy of the sphere is high. <br> <br>Due to the high quality ball valve body material is the same as the pipe material, there will be no uneven stress, and no deformation due to earthquakes and vehicles passing the ground, and the pipe is resistant to aging. The metal ball valve body of the sealing ring is made of RPTFE with a content of 25% Carbon, which guarantees no leakage (0%). <br> <br>The direct-buried fully welded ball valves can be directly buried in the ground, instead of building high and large valve wells, only small shallow wells are set on the ground, which greatly saves construction costs and engineering time. <br> <br>Full Welded Ball Valve Technical Specification <br>Size: 1/2&quot;~16&quot;(DN15~DN400) <br> <br>Pressure: Class ANSI #150~900, PN10~PN150 <br> <br>Fully welded ball valves body material: Carbon steel, Stainless steel, Alloy steel, or others <br> <br>Standard compliance: EN12516, DIN3357-1 or equivalents <br> <br>End connections: Flanged Ends OR BW, SW <br> <br>Direct mounting with pneumatic or electric actuators <br> <br>Full port or regular bore; double block and bleed <br> <br> <br> <br> <br> <br>Full Welded Ball Valve Structure Features <br>The high quality ball valve is composed of a full welding body together with the RPTFE sealing which ensures the full welded ball valve can work well in there are countries or chemical substances. <br> <br>The floating ball structure and the flexible seat will ensure the ball and the sealing connects each other tightly. Even when the pressure is not stable, the fully welded ball valves can also have good sealing. <br> <br>The stem can be extended which is good for keeping the temperatures table. <br> <br>Full Welded Ball Valve Datas <br> <br>Main Connection Dimensions of Full Welded Ball Valve <br>DN PN L D D1 D2 H B H1 Weight (KG) (N.M) <br>15 40 210 15 21.7 42.7 103 129 22 - 3-4 <br>20 40 230 20 27.2 48 118 159 23 - 5-7 <br>25 40 260 25 34 60 121 159 34 - 8-11 <br>32 40 260 32 42.7 76 120 230 34 - 12-18 <br>40 40 300 40 48.6 89 127 230 43 - 25-32 <br>50 40 300 50 60.5 114 170 300 44 - 38-45 <br>65 25 300 65 76.3 140 185 300 71 - 55-65 <br>80 25 300 80 89.1 165 210 400 77 - 110-120 <br>100 25 325 103 114.3 216 253 400 102 - 200-250 <br>125 25 350 125 1393 219 273 450 102 - 300-340 <br>150 25 490 150 1652 355 300 450 107 - 450-480 <br>200 25 580 200 216.3 356 345 252 123 - 750-800 <br>250 25 550 250 267.4 457 572 236 122 - 900-950 <br>300 25 630 300 318.5 5C8 697 331 155 - 1200-1300 <br>350 25 762 337 355.6 559 764 331 187 - 1900-2000 <br>400 25 840 387 406.4 660 810 360 221 - - <br>500 25 1010 489 508 812 973 413 221 - - <br> <br>Materials of Fully Welded Ball Valve Main Parts <br>Part Name Materials <br>Handle Carbon steel <br>Retaining ring SS304 <br>O- ring Viton <br>Spindle SS420 <br>Gasket RPTFE <br>Ball SS304 <br>Ball seat RPTFE <br>Back-up ring SS304 <br>Spring washer SS304 <br>Valve casing St.37.0 <br> <br>Main Performance Specification of Full Welded Ball Valve <br>Design and Manufacture API 6D, ASME B16.34, API 608, MSS-SP-72 <br>Face-to-Face Manufacturer&#039;s specification <br>*Connection End Flanged ASME B16.5 <br> Butt-Welding ASME B16.25 <br>Test and Inspection API 598, API 6D <br>Fire Test API 607, API 6FA <br> <br>Guaranteed by a high precision machining level and strict quality control system, a high-quality UTMOST control valve design can be adopted under any tough operating conditions. UTMOST valve OEM, a leading China valve manufacturer and China valve supplier with China valve factory, is providing high-performance types of industrial valves for our customers. We offer a variety of valves for sale to meet your industrial valves needs. Welcome to contact us. <br> <br>If you want to know more kinds of globe valve, please viit our website.

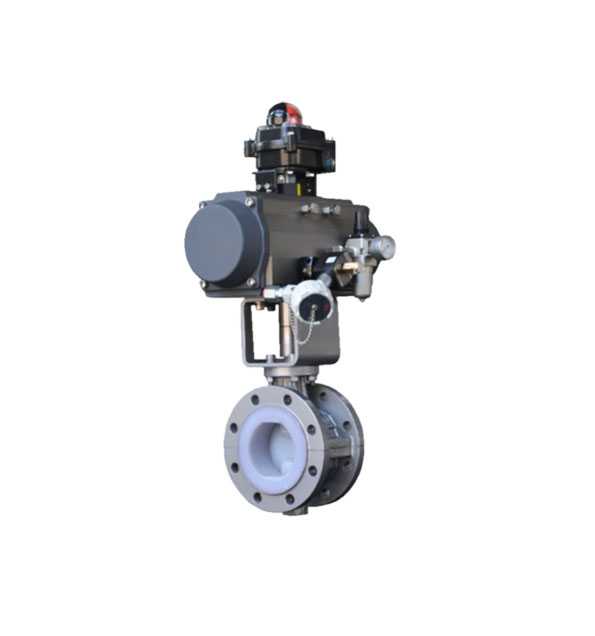

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Ffluorine-lined-butterfly-valve%2F[/a] <br>#fluorine #lined #butterfly #valve <br>China Fluorine Lined Butterfly Valve <br>In the well-known butterfly valve technology, fluorine lined butterfly valve sealing form mostly adopts a sealing structure, and the sealing material is rubber, polytetrafluoroethylene, etc. Due to the limitation of butterfly valve structural characteristics of the fluorine lined butterfly valve, it is not suitable for industries such as high-temperature resistance, high-pressure resistance, corrosion resistance, and wear resistance. Contact our butterfly valve china manufacturer for more information now! <br> <br>Fluorine Lined Butterfly Valve vs. Triple Eccentric Butterfly Valve <br>An existing more advanced butterfly valve is a triple eccentric metal hard-sealed butterfly valve, the fluorine lined butterfly valve body, and the valve seat are connected components, and the sealing surface layer of the valve seat is welded with temperature-resistant and corrosion-resistant alloy materials. The multi-layer soft laminated sealing ring is fixed on the fluorine lined butterfly valve plate. Compared with the traditional butterfly valve, fluorine lined butterfly valve has high-temperature resistance, is easy to operate, and has no friction when opening and closing. When closing, the torque of the transmission mechanism increases to compensate for the sealing, which improves the butterfly valve. The advantages of sealing performance and extended service life. This type of valve should generally be installed horizontally in the pipeline. <br> <br>Fluorine Lined Butterfly Valve Datas <br>Fluorine Lined Butterfly Valve Technical Parameter <br>Wafer type <br>dn l d d 1 d 2 f z-φd h 2 h 1 d d1 z-φd kg <br>40 33 145 110 85 3 4-φ18 270 80 145 110 4-φ18 4 <br>50 43 160 125 100 3 4-φ18 280 85 160 125 4-φ18 5 <br>65 46 180 145 120 3 4-φ18 290 93 180 145 4-φ18 7 <br>80 46 195 160 140 3 4-φ18 310 100 195 160 8-φ18 9 <br>100 52 215 180 155 3 8-φ18 340 110 215 180 8-φ18 13 <br>125 56 245 210 185 3 8-φ18 355 120 245 210 8-φ18 15 <br>150 56 280 240 210 3.5 8-φ23 380 160 280 240 8-φ23 24 <br>200 60 335 295 265 3.5 8-φ23 430 245 335 295 12-φ23 38 <br>250 68 390 350 320 4 12-φ23 450 260 405 355 12-φ26 60 <br>300 78 440 400 370 4 12-φ23 480 300 460 410 12-φ26 70 <br>350 78 500 460 420 4 16-φ23 600 320 520 470 16-φ26 80 <br>400 102 565 515 475 4.5 16-φ25 630 330 580 525 16-φ30 120 <br>450 114 615 565 525 4.5 20-φ25 655 380 640 585 20-φ30 165 <br>500 127 670 620 580 5 20-φ25 680 390 715 650 20-φ33 205 <br>600 154 780 725 690 5 20-φ30 730 450 840 770 20-φ36 250 <br>700 165 895 840 800 5 24-φ30 790 480 910 840 24-φ36 320 <br>800 190 1010 950 905 5 24-φ34 880 580 1020 950 24-φ39 395 <br>900 203 1110 1050 1005 5 28-φ34 930 625 1120 1050 28-φ39 450 <br>1000 216 1220 1160 1115 6 28-φ34 1000 660 1255 1170 28-φ42 600 <br>1200 254 1450 1380 1325 6 32-φ41 1300 780 1485 1390 32-φ48 825 <br> <br>Flange type <br>dn（mm） nps（inch） l d d1 d2 f b z-φd w do h wt（kg） <br> pn1.0mpa <br>40 11-2 106 145 110 85 3 18 4-φ18 160 140 10 <br>50 2 108 160 125 100 3 20 4-φ18 200 160 12 <br>65 11-2 112 180 145 120 3 20 4-φ18 250 165 14 <br>80 3 114 195 160 135 3 22 4-φ18 250 170 16 <br>100 4 127 215 180 155 3 22 8-φ18 300 180 18 <br>125 5 140 245 210 185 3 24 8-φ18 300 275 20 <br>150 6 140 280 240 210 3 24 8-φ23 200 295 38 <br>200 8 152 335 295 265 3 26 8-φ23 200 320 74 <br>250 10 250 390 350 320 3 28 12-φ23 240 385 105 <br>300 12 270 440 400 368 3 28 12-φ23 240 390 142 <br>350 14 290 500 460 428 4 30 16-φ23 240 460 179 <br>400 16 310 565 515 482 4 32 16-φ25 280 510 220 <br>450 18 330 615 565 532 4 32 20-φ25 280 540 268 <br>500 20 350 380 620 585 4 34 20-φ25 320 570 378 <br>600 24 390 780 725 685 4 36 20-φ30 320 660 608 <br>700 28 430 895 840 800 5 40 24-φ30 360 710 1050 <br>800 32 470 1010 950 905 5 44 24-φ34 360 780 1320 <br>900 36 510 1110 1050 1005 5 46 28-φ34 380 885 1795 <br>1000 40 550 1220 1160 1115 5 50 28-φ34 400 990 1900 <br>pn1.6mpa <br>40 11-2 106 145 110 85 3 18 4-φ18 200 140 10 <br>50 2 108 160 125 100 3 20 4-φ48 200 160 12 <br>65 11-2 112 180 145 120 3 20 4-φ18 250 165 13 <br>80 3 114 195 160 135 3 22 8-φ18 250 170 14 <br>100 4 127 215 180 155 3 24 8-φ18 300 180 16 <br>125 5 140 245 210 185 3 26 8-φ18 300 275 18 <br>150 6 140 280 240 210 3 28 8-φ23 200 295 42 <br>200 8 152 335 295 265 3 30 12-φ23 200 320 78 <br>250 10 250 405 355 320 3 32 12-φ25 240 385 120 <br>300 12 270 460 410 375 4 34 12-φ25 240 390 145 <br>350 14 290 520 470 435 4 38 16-φ25 240 460 202 <br>400 16 310 580 525 485 4 40 16-φ30 280 510 235 <br>450 18 330 640 585 545 4 44 20-φ30 280 540 368 <br>500 20 350 705 650 608 4 46 20-φ34 320 570 420 <br>600 24 390 840 770 718 5 54 24-φ41 320 660 750 <br>700 28 430 910 840 788 5 54 24-φ41 360 710 1028 <br>800 32 470 1020 950 898 5 54 24-φ41 380 780 1690 <br>900 36 510 1120 1050 998 5 54 28-φ41 400 885 1815 <br>1000 40 550 1255 1170 1110 5 60 28-φ48 500 990 2050 <br>pn2.5mpa <br>40 11-2 106 145 85 3 18 4-φ18 200 140 11 <br>50 2 108 160 100 3 20 4-φ18 200 160 13 <br>65 11-2 112 180 120 3 22 8-φ18 250 165 14 <br> ,, <br>80 3 114 195 135 3 22 8-φ18 250 170 16 <br>100 4 127 230 160 3 24 8-φ23 300 180 18 <br>125 5 140 270 188 3 28 8-φ25 300 275 20 <br>150 6 140 300 218 3 30 8-φ25 240 295 48 <br>200 8 152 360 278 3 34 12-φ25 240 320 88 <br>250 10 250 425 332 3 36 12-φ30 280 385 145 <br>300 12 270 485 390 4 40 16-φ30 280 390 157 <br>350 14 290 550 448 4 44 16-φ34 320 460 222 <br>400 16 310 610 505 4 48 16-φ34 320 510 353 <br>450 18 330 660 555 4 50 20-φ34 360 540 405 <br>500 20 350 730 610 4 52 20-φ41 360 570 448 <br>600 24 390 840 718 5 56 20-φ41 380 660 795 <br> <br>Guaranteed by a high precision machining level and strict quality control system, a high-quality UTMOST control valve china design can be adopted under any tough operating conditions. UTMOST valve OEM, a leading China valve manufacturer and China valve supplier with China valve factory, is providing high-performance types of industrial valves for our customers. We offer a variety of valves for sale to meet your industrial valves needs. Welcome to contact us. <br> <br>If you want to know more kinds of pneumatic eccentric rotary valve, please visit our website.

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Ffloating-ball-valve%2F[/a] <br>#floating #ball #valve #factory <br>China Floating Ball Valve <br>UTMOST, a floating ball valve factory, floating ball valve supplier, floating ball valve manufacturer, offers different floating ball valve types at a good float ball price. The floating ball valve has a simple structure and good sealing performance, but the load of the working medium on the sphere is all transmitted to the outlet sealing ring. Therefore, it is necessary to consider whether the sealing ring material can withstand the working load of the sphere medium. When subjected to higher pressure impact, the sphere may shift. This valves and controls structure is generally used for medium and low-pressure ball valve and float. <br> <br>Floating Ball Valve Application of Norms <br>Flange dimensions to ANSI B 16.5 <br> <br>Face to face dimensions to ANSI B 16.10 <br> <br>Floating ball valve design and Manufacture in accordance with API 6D <br> <br>Valve tested to API 598 <br> <br>Floating Ball Valve Datas <br> <br>Materials of Water Tank Ball Float Main Parts <br>No. Parts Name Material <br> Stainless Steel Cast Steel <br>1 Body A351 CF8 A216WCB <br>2 Stud A193 B8 A193 B7 <br>3 nut A1942H A1942H <br>4 Gasket PTFE PTFE <br>5 Valve cover A351 CF8 A216WCB <br>6 Ball A182 F304 A182 F304 <br>7 Seat PTFE PTFE <br>8 Stem A182 F6 A182 F6a <br>9 packing PTFE PTFE <br>10 Gland A182 F304 WCB <br>11 Handle A351 CF8 A216WCB <br> <br>Main Performance Specification of SS Ball Float Valve <br>Performance Specification Pressure Grade (class) <br> 150 300 400 600 <br>Testing Pressure (Mpa) Shell test 2.93 7.58 10 15 <br> Seal test 2.07 5.52 7.31 11.03 <br> Air test 0.6Mpa <br>Applicable Temperature - 196Ps550°c (Different Materials for Different Operating Temperatures) <br>Applicable Medium Ordinary type Water, Steam, Petroleum, LPG, Natural gas, etc. <br> Antisulphur type Natural gas containing H2S and CO, petroleum, etc <br> <br>Now the floating ball valve price is reasonable, anything you need, please contact us. <br> <br>As a valve factory, we will do our best to meet all the needs of customers.

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Feccentric-rotary-plug-control-valve%2F[/a] <br>#eccentric #rotary #plug <br>UTMOST eccentric rotary disc valve has the outstanding advantages of simple structure, small volume, lightweight, strong flow capacity, wide adjustable range, wide service temperature range, small leakage, good stability, low cost, and long service life. <br> <br>As a professional control valve factory, the sealing form of UTMOST eccentric rotary control valve is hard-seal, which is connected with a pneumatic actuator, matching positioner, solenoid valve, and other accessories to realize proportional adjustment.

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Feccentric-butterfly-valve%2F[/a] <br>#butterfly #valve #eccentric #type <br>China Eccentric Butterfly Valve <br>In contrast with the concentric butterfly valve, a butterfly valve whose stem axis deviates from the center of the disc and the center of the body at the same time, and the sealing pair is an oblique vertebra, is called an eccentric butterfly valve. As one of the professional eccentric butterfly valve manufacturers, our single eccentric butterfly valve designed with durability in focus has achieved great success in the butterfly valve eccentric type wholesale market characterized by high quality and affordable prices. <br> <br>Single Eccentric Butterfly Valve Design Datas <br>Eccentric Disc Butterfly Valve Technical Specification <br>Size 2&quot;~48&quot;(DN50~DN1200) larger sizes upon request <br>Pressure Class ANSI #150~900, PN10, PN100 <br>Body material Carbon steel, stainless steel, alloy steel, duplex steel, etc. <br>Standard compliance ISO 5752, BS5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN3202. <br>End connections Flanged Ends OR WAFER, LUG, BW <br>Operation manual, pneumatic, electric, or others <br>Seals NBR, EPDM, VITON, PTFE or metal seat, etc. <br> <br>As a china valve supplier, we can provide kinds of pneumatic ball valve for sale, anything you need, please contact us.

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Fdouble-eccentric-butterfly-valve.html[/a] <br>#china #double #offset #butterfly #valve <br>China Double Eccentric Butterfly Valve <br>As one of the best double eccentric butterfly valve manufacturers and double eccentric butterfly valve suppliers in China, UTMOST provides types of superior China double eccentric butterfly valve. The double eccentric butterfly valve China structure enables the spherical surface of the China double offset butterfly valve plate and the sealing element surface to be quickly separated and contacted when switching, reducing the friction torque between the valve plate and the sealing element, reducing wear and improving the wholesale butterfly valve life. <br> <br>China Double Eccentric Butterfly Valve Design Manufacturer &amp; Supplier <br>As a China valve factory, we specialize in creating high-quality valves for a variety of industries and applications. UTMOST double eccentric butterfly valves are designed to provide reliable performance and efficient operation in even the most demanding conditions. <br> <br>Our china double eccentric butterfly valves are crafted using the latest technology and highest quality materials, ensuring they are durable and long-lasting. Our team of experienced engineers and technicians work tirelessly to ensure that our valves meet or exceed industry standards for quality and performance. <br> <br>Whether you need a valve for water treatment, chemical processing, or any other industrial application, our double eccentric butterfly valves are up to the task. Our valves are built to withstand extreme temperatures and pressures, and our commitment to quality means that you can rely on our valves to operate smoothly and efficiently for years to come. <br> <br>So if you&#039;re looking for a reliable and high-quality double eccentric butterfly valve manufacturer in China, look no further than our double eccentric butterfly valve supplier. Contact us today to learn more about our products and services, and let us help you find the perfect valve for your needs. <br> <br>Double Eccentric Butterfly Valve Features <br>The double offset butterfly valve plate cannot be separated from the sealing surface near the upper and lower ends of the valve plate in the range of 0-10°, and it is still in a sliding friction state. At this time, the torque is large, which may easily cause scratches and bites in this area. This can cause seal leakage. From the structural analysis, the double eccentric is a unidirectional butterfly valve. This double eccentric butterfly valve from china is mainly suitable for the drainage of water plants, power plants, steel smelting, chemical engineering, water source engineering, environmental facility construction, and other systems, especially suitable for water pipelines, as regulating and intercepting equipment. Compared with the centerline butterfly valve, the double eccentric butterfly valve is more resistant to high pressure, has a longer life, and has good stability. Compared with other valves such as 2 way globe valve, the larger the caliber, the lighter the material, and the lower the cost. <br> <br>Performance Parameter of Double Eccentric Butterfly Valve <br>Pressure rating: CLASS 150~CLASS300 (PN10~PN50) <br> <br>Nominal diameter: 2 &quot;~160&quot; (DN50~DN4000) <br> <br>Temperature range: -196℃～300℃ <br> <br>Main body material: carbon steel, stainless steel, duplex, Hastelloy, Inconel, Monel, Alloy20, Incoloy, Ti, etc. <br> <br>Disc material: carbon steel, stainless steel, duplex, Hastelloy, Inconel, Monel, Alloy20, Incoloy, Ti, etc. <br> <br>Double offset butterfly valve seat material: PTFE, stainless steel, Stellite alloy, etc. <br> <br>Operation mode: manual, pneumatic, electric, hydraulic, etc. <br> <br>Please contact with Utmost china valve factory for more other valve control system specifications request. <br> <br>We can also provide kinds of pneumatic butterfly valve for sale, if you have needs, please contact us.

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Fcryogenic-control-valve%2F[/a] <br>#cryogenic #flow #control #valve <br>G115/G155 Series <br>China Cryogenic Control Valve <br>Cryogenic flow control valve is suitable for the adjustment of the medium (such as liquid oxygen, liquid nitrogen, etc.) under the low temperature and strong state of -60～-250℃. To ensure the accuracy of adjustment, a positioner must be used. Pneumatic low temperature is composed of a pneumatic membrane actuator and low temperature resistant single and double seat valve. The signal pressure from the regulator is input into the air chamber of the pneumatic membrane actuator to generate thrust, and the cryogenic flow control valve core is driven by the connecting rod. The change of the valve core position in valve control systems changes the flow cross-sectional area of the cryogenic control valve to realize the adjustment of the medium flow. <br> <br>Technical Data Sheet of G115 and G155 Series Cryogenic Control Valve <br>Weights and Dimensions of G115 Series Cryogenic Control Valve <br>Weights and Dimensions <br>G115 series dn ANSI NPS 150 6&quot; 200 250 300 350 400 <br> 8M 10&quot; 12&quot; 14&quot; 16&quot; <br> GL PN10-PN40 480 600 730 850 980 1100 <br> GL Class 150 RF 451 543 673 737 889 1016 <br> GL Class 150 RTJ 463.5 556 - - <br> GL Class 300 RF 473 568 708 775 927 1057 <br> GL Class 300 RTJ 489 584 <br> DEK5 On request <br> GD 190 240 305 335 395 445 <br>Actuator Type Ul/UTA 0U UTIII 400 <br> UTA 598 <br> UH UTIII 618 <br> UTA 1100 1363 1580 <br> UHV UTIII 888 <br> Weight* ca. kg UTIII 200 260 <br> UTA 340 400 460 760 850 1500 <br> <br>As one of control valve manufacturers china in china, we will do our best to meet all the needs of customers.

[a]https%3A%2F%2Fwww.utmostvalve.com%2Fproducts%2Fcryogenic-butterfly-valve.html[/a] <br>#cryogenic #butterfly #valve #manufacturers <br>China Cryogenic Butterfly Valve <br>UTMOST is one of the professional cryogenic butterfly valve manufacturers that provides cryogenic butterfly valve for sale. The cryogenic butterfly valve has outstanding advantages such as reliable sealing, small opening, and closing torque, high low-temperature stability, and long service life. The actuator of this butterfly valve adopts worm gear, pneumatic, electric, hydraulic, and other driving methods. The cryogenic butterfly valve is widely used in liquefied natural gas, air separation, and other low-temperature industries. We also provide fluorine lined butterfly valve, soft seal butterfly valve and more products for sale. Contact us now! <br> <br>Cryogenic Butterfly Valve Technical Specification <br>Size: 6&quot;~48&quot;(DN150~DN1200) larger sizes upon request <br> <br>Pressure: Class ANSI #150~600, PN20~PN110 <br> <br>Temp.: -196℃~80℃ <br> <br>Standard compliance: ISO 5752, BS5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN3202. <br> <br>End connections: Flanged Ends <br> <br>Operation: manual, pneumatic, electric, or other <br> <br>Cryogenic butterfly valve body material: low temp. carbon steel, stainless steel, and alloy steel, etc. <br> <br>For more other specifications request, please contact with Utmost china valve factory. <br> <br>Cryogenic Butterfly Valve Performance Parameter <br>Nominal pressure: CL150lb~CL900lb <br> <br>Medium temperature: -196~120℃ <br> <br>Connection: Flanged RF <br> <br>Body material: CF8, CF8M, CF3M, etc. <br> <br>Trim material: 304, 316, 316L, etc. <br> <br>Leakage level: IV <br> <br>As one of control valve manufacturers in china, we will do our best to meet all the needs of customers.
