#automatic #recloser <br> <br>Recloser Control Box-Feeder Terminal Unit <br>The feeder terminal unit(FTU) is a new HV switch control device of control cabinet enclosures equipped with both the imported DSP high-speed sampling chips and the high-performance ARM chips, and can fast and stably finish the monitoring on the switch. <br> <br>Industrial feeder remote terminal unit by our electric power equipment company has such functions as the protection, measuring, controlling, monitoring, communication, remote control, and so on and features high integration level, flexible configuration, and user-friendly interface. Electrical control cabinet are widely applied to the radiant and ring network power supply systems. <br> <br>FTU outdoor control electrical control box can help the electrical distribution cabinet systems identify transient and permanent line faults. Outdoor control box eliminate the impact of transient line faults automatically, isolate the permanent fault segments to avoid prolonged power failure in a large area, and automatically recover the power supply in fault-free areas, so as to realize the automation of power distribution network in an economical and practical way. <br> <br>Recloser Control Box-feeder Remote Terminal Unit Key Functions <br>S/N Functions Remarks <br>1 Three section protection Each protection can be vote back independently <br>2 Over-current count protection Failure time count, output after meeting the number of <br> times, output mode is optional <br>3 Zero-sequence protection Output options: exit, alarm and tripping <br>4 Pre - voltage fault protection Protection can be accelerated when combined at fault <br> point <br>5 Post-reclosing acceleration Vote back independently <br>6 Constant time-lag The protection time is fixed <br>7 Inverse time limit Multiple protection curves optional <br>8 Ring network protection Hardware needs to configure double PT <br>9 Event Log The recording time is exactly millisecond <br>10 Status enquiry The main content is remote recloser controller and remote <br> metering <br>11 Remote programmable Remote input support programmable <br> <br>Recloser Control Box-Feeder Terminal Unit Communication Protocols <br>S/N Protocols Remarks <br>1 IEC60870-5-101 balanced <br>2 IEC60870-5-101 unbalanced <br>3 IEC60870-5-104 <br>4 DNP3.0 Now support level 3 <br>5 Modbus <br> <br>Recloser Control Box-feeder Remote Terminal Unit Technical Parameters <br>No. Items Rated value Remarks <br>1 Operating ambient temperature -40 ~ +85℃ <br>2 Environmental relative humidity 10 ~ 100% <br>3 Maximum absolute humidity 35g/m3 <br>4 Atmospheric pressure 66~ 108kPa <br>5 Working voltage AC220V±20% <br>6 Working voltage frequency 50HZ±5HZ <br>7 Power consumption ≤15W <br>8 Protective exit time &lt;35ms Protect inherent action time at 1.5 times fixed value <br>9 Insulation impedance &gt;100MΩ/ DC500V 1. External terminal to ground <br> 2. Power circuit to ground <br> 3. On-off input circuit to ground <br> 4. Output circuit to ground <br> 5. AC circuit to ground <br> 6. AC circuit and power circuit <br> 7. Between on-off input circuit and output circuit <br>10 Power frequency withstand voltage 2k Power circuit to ground <br> 500 On-off input circuit to ground <br> 500 Output circuit to ground <br> 2k AC circuit to ground <br> 2k AC circuit and power circuit <br> 1500 Between on-off input circuit and output circuit <br>11 Impulse withstand voltage 5k Power circuit to ground <br> 1k On-off input circuit to ground <br> 1k Output circuit to ground <br> 5k AC circuit to ground <br> 5k AC circuit and power circuit <br> 1k Between on-off input circuit and output circuit <br> <br>Recloser Control Box-feeder Remote Terminal Unit Characteristic Functions <br>Feeder terminal unit is small in size and large in quantity. FTU electrical control cabinet is equipped with a transmitter for direct AC sampling. It is resistant to high temperature and cold and is suitable for outdoor harsh environments. <br> <br>Unlike the scada remote terminal unit, the amount of data collected by FTU electronic recloser controller box is small, the requirement of communication rate is low, and the requirement of reliability is high. <br> <br>FTU outdoor recloser controller box can be manufactured by a high-performance single-chip microcomputer. In order to adapt to the harsh environment, industrial chips that can work at 75 ℃ shall be selected, and they shall be protected against lightning, rain and moisture through appropriate structural design. <br> <br>Recloser Control Box-feeder Remote Terminal Unit Application <br>At present, feeder terminal units power recloser controller box as one popular type of distribution electrical box have been widely deployed in column switches, ring network cabinets, switching stations, power recloser controller boxes, and other places on the distribution network line to realize the &quot;three remote&quot; automation functions of remote signaling, telemetry and remote control of remote primary equipment. <br> <br>As an information and data communication tool, a computer network provides a powerful communication means for industrial electrical cabinet and provides a reliable basis for realizing the networked control of distribution automation system devices. Fieldbus technology and GPRS wireless communication technology inject new vitality into the implementation of feed automation. Driven by network, communication and other information technologies, distribution automation is developing from spontaneous Island automation to unified and systematic comprehensive automation. <br> <br>As an electric power equipment ltd, we will do our best to provide more related products for sale, anything you need, please contact us. <br> <br> <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2Fcontrol-box-feeder-terminal-unit.html[/a]

#electrical #control #cabinet <br>Centralized Type DTU <br>The centralized DTU adopts high-performance MCU processor, high-speed industrial network communication technology, multi-CPU integration technology and Linux operating system. The product has strong stability, high reliability, good real-time performance, and strong environmental adaptability. Mainly used in the ring network cabinets, switching stations, box-type substations, etc. in the distribution network, combined with the main distribution station, it can quickly and reliably realize the fault location and isolation of the electrical distribution cabinet and the restoration of the power supply in the non-faulty section. It is a kind of new generation of scada remote master terminal units for distribution automation that integrates telemetry, remote control, protection and communication functions. <br> <br>Description and Functions of Centralized Type DTU <br>With &quot;communication&quot;, it has &quot;remote maintenance&quot; function. <br> <br>Flexible configuration, all protection functions have separate retreat. <br> <br>The device has a complete self-checking function to detect the working conditions of each part online. <br> <br>The closing and closing circuit adopts anti-misoperation design and has anti-missing function. <br> <br>Applicable to analog acquisition, state quantity acquisition, local and remote control switch closing of 4-12 switch <br> <br>24 channels can be controlled by expansion <br> <br>By selecting different configurations, it can meet the needs of “Three Remote” and “Two Remote” of State Grid and South Grid. <br> <br>Meet the special requirements of all parts of the country (such as Shandong, Beijing, Guangdong, etc.) <br> <br>Zero-sequence current setting adaptive function, no manual setting required <br> <br>Meet the specific requirements of “one or two integration” <br> <br>The core unit can be flexibly configured to shade vertical, shaded horizontal, outdoor vertical and group screen. <br> <br>Technical Parameters of Centralized Type DTU <br>Ac sampling Electromagnetic transformer Measuring voltage range 0~200V(Un=100V) <br> ratio （10KV/）/（0.1KV/） <br> Measuring zero-sequence voltage range 0~200V(Un=100V/3) <br> ratio （10KV/）/（0.1KV/） <br> Measuring current range 0.01~1.2A(In=1A)或0.01~6A(In=5A) <br> Precision grade of measuring voltage and current Class 0.5 <br> Protective current range 0~100A( In=5A)/0~20A( In=1A) <br> Protective current accuracy ±3% <br> Active power precision class Class 0.5 <br> Reactive power accuracy class Class 1 <br> Power factor resolution 0.001 <br> Frequency measurement range 45~55Hz <br> Frequency measurement error &lt;0.01Hz <br> Electronic transformer Measuring voltage range 0~6.5V(Un=3.25V/V) <br> ratio （10KV/）/（3.25V/） <br> Measuring zero-sequence voltage range 0~13V(Un=6.5V/3V) <br> ratio （10KV/）/（6.5V/3V） <br> Measuring current range 0~20V(In=1V) ratio 600A/1V <br> Measuring zero sequence current range 0~2V(In=0.2V) ratio 20A/0.2V <br> Precision class of measuring voltage and current Class 0.5 <br> Protective current range 0~20V(In=1V) ratio 600A/1V <br> Protective current accuracy ±3% <br> Zero sequence voltage / zero sequence current accuracy level Class 0.5 <br> Active power precision class Class 0.5 <br> Reactive power accuracy class Class 1 <br> Power factor resolution 0.001 <br> Frequency measurement range 45~55Hz <br> Frequency measurement error &lt;0.01Hz <br> <br>As an electric power equipment company, we will do our best to provide more related products for sale, anything you need, please contact us. <br> <br>If you want to know more kinds of scada remote terminal unit, please visit our website. <br> <br> <br> <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2Fcentralized-type-dtu.html[/a]

#electrical #control #cabinet <br>33KV SF6 Gas Load Break Switch <br>These load break switch 33kv are intended for outdoor applications. They can be mounted either horizontally or vertically, and are suitable for electrical operation and power distribution by power distribution cabinet. These 33kv load break switch are tested by our quality controllers on various parameters before delivering them to our valued customer ends. We manufacture these switches with the help of cutting edge technology, which allows us to deliver a flawless product that is sure to be flawless as well. The 33 kV live parts are not directly touchable and hence guarantee protection from hazards. <br> <br>33kv Load Break Switch Application <br>The 33kv pole mounted switch is made of a proven rugged, corrosion-resistant material (304L stainless steel plate for warships), ensuring a long service life (30 years) and a range of operations, with the characteristics ideal for on-column equipment. <br> <br>33kv Load Break SwitchTechnical Parameters <br>Products Type FWX-36 <br>Basic Ratings <br>Maximum System Voltage 36kV <br>Rated Continuous Current 630A <br>Rated Frequency 50/60Hz <br>Short Time Withstand Current 16kA/1sec <br>Making and Breaking Capacity <br>Mainly Active Load Current 630A <br>Number of Load-break Operations 400times <br>Short-circuit Making Current (peak) 40kA <br>Number of Making Operations 5 times <br>Cable Charging Current 25A <br>Line Charging Current 1.5A <br>Closed Loop Circuit Current 630A <br>Transformer Magnetizing Current 22A <br>Power Frequency Withstand Current Test <br>Wet Condition-10sec Ph- Ph-Eth, Across Interrupters 70kV <br>DryCondition-1min，Ph- Ph, Phase to Earth 95kV <br>Dry Condition - 1 min Across Interrupter 110kV <br>Impulse Withstand Current Test( 1.2 x 50 µs ) <br>Phase to Phase, Phase to Earth 195kV <br>Across Interrupter 215kV <br>Other Ratings &amp; Specifications <br>Internal Arc Test 20kA /0.1 sec <br>Arc Extinction Medium SF6 Gas <br>Insulation Medium SF6 Gas <br>Creepage Distance (Porcelain) 1055mm <br>Creepage Distance (Silicon) 1550mm <br>Dry arcing distance ≥ <br>IP Level 65 <br>Operation Performance <br>Closing/Opening Time ＜1sec <br>Mechanical Operations (Guaranteed) 10000times <br>Operating Temperature (*Manual Type) -25～+70℃ <br>Gas Pressure <br>Nominal Pressure (MPa, at 20°C) 0.07 <br>Bursting Pressure (MPa) 0.4～0.6 <br>Minimum Gas Pressure (MPa) 0.05 <br>Leakage Rate (cc/ sec) ≤0.5% <br>Voltage sensors <br>CT ABC 10P10 5VA 400:05:00 <br>Incoming side and outgoing side of the voltage sensor 6 Voltage sensor（built-in） <br> Phase voltage：（24（36）kV/√3）/（3.25V/√3） <br> Special attention should be paid to the voltage sensor, which must be directly fed by the 33KV load break interrupter switch. <br> No additional adjustment circuit can be added to the controller. The voltage signal of the 33kv load break switch into the test line needs to be tested separately. <br> <br>Zhuhai Gopower Smart Grid Co., Ltd. was founded in 1998. It is one of the earliest high-tech electric power equipment ltd engaged in R&amp;D and production of (12KV-40.5kV) medium-voltage transmission and distribution intelligent control equipment in China. It is one of the initiators and members of the Zhuhai Smart Grid Alliance. After 15 years of painstaking exploration and development. <br> <br>Now the price of remote t erminal unit is reasonable, if you have needs, please contact us. <br> <br> <br> <br> <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2F33kv-sf6-gas-load-break-switch.html[/a]

#electrical #control #box <br> <br>24KV Recloser Vacuum Circuit Breaker <br>The 24KV breaker switch unit is comprised of three poles, the operating mechanism, and the operating mechanism housing. The sequence of the poles is A -B – C or 1 – 2 - 3 (sequence left to right when viewed from the lower terminal side of the recloser switch unit. <br> <br>Each 24kv vacuum circuit breaker by GOPOWER is embedded in a solid-insulated pole made of weather-proof cyclo aliphatic epoxy resin. This enables a small design as well as resistance against environmental effects. <br> <br>Breaker principle and design of 24KV Vacuum Circuit Breaker <br>ZW32 series 24KV circuit recloser are used in distribution systems. 24kv vacuum circuit breakes are used to make and break normal and fault currents. Breakers are fully equipped with sensors and a controller to provide a means of protection and control. For more pole top switches at bulk price. <br> <br>In case of a line fault, breakers can break and make currents several times, thus avoiding longer network interruptions due to temporary faults. The manufacture, design, and testing of the vacuum recloser is based on current standards IEC 62271-111：2019 <br> <br>Technical Parameters of 24KV Vacuum Circuit Breaker <br>Products Type ZW32-24 <br>Maximum System Voltage 24kV <br>Rated Continuous Current 630A <br>Rated Frequency 50/60Hz <br>Short Time Withstand Current 20kA/1sec <br>Mainly Active Load Current 630A <br>Number of Load-break Operations 30 <br>Short-circuit Making Current (peak) 50kA <br>Number of Making Operations 5 times <br>Cable Charging Current 25A <br>Line Charging Current 1.5A <br>Closed Loop Circuit Current 630A <br>Transformer Magnetizing Current 22A <br>Wet Condition-10sec Ph- Ph-Eth, Across Interrupters 50kV <br>DryCondition-1min，Ph- Ph, Phase to Earth 65kV <br>Dry Condition - 1 min AcrossInterrupter 79kV <br>Phase to Phase, Phase to Earth 125kV <br>Across Interrupter 145kV <br>Internal Arc Test 20kA /0.1 sec <br>Arc Extinction Medium vacuum <br>Insulation Medium vacuum <br>Creepage Distance (Silicon) 960mm <br>Dry arcing distance 200mm≥ <br>IP Level 67 <br>Closing/Opening Time ＜1sec <br>Mechanical Operations (Guaranteed) 10000times <br>Operating Temperature (*Manual Type) -25～+70℃ <br> <br>As an electric power equipment ltd, we can provide kinds of electrical control cabinet for sale, if you have needs, please contact us. <br> <br> <br> <br> <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2F24kv-recloser-vacuum-circuit-breaker.html[/a]

#auto #recloser <br> <br>LBS 24KV 630a SF6 Gas Load Break Switch <br>24kV SF6 load break switch is a sf6 load break switch for medium voltage switchgear, using SF6 gas as arc extinguishing and insulating medium. Rate voltage was 24kV, rate current was630A <br> <br>LBS 24KV 630a SF6 Gas Load Break Switch Application <br> <br>The SF6 LBS 24kv 630A gas-insulated switch is a three-phase interoperable switching device designed for use in electrical distribution cabinet cabling and overhead power line segment applications. <br> <br>The 24KV pole mounted disconnect switch can be operated manually in the field or remotely from the control center. <br> <br>LBS 24KV 630a SF6 Gas Load Break Switch Technical Parameters <br>Products Type FWX-24 <br>Basic Ratings <br>Maximum System Voltage 24kV <br>Rated Continuous Current 630A <br>Rated Frequency 50/60Hz <br>Short Time Withstand Current 16kA/1sec <br>Making and Breaking Capacity <br>Mainly Active Load Current 630A <br>Number of Load-break Operations 400times <br>Short-circuit Making Current (peak) 40kA <br>Number of Making Operations 5 times <br>Cable Charging Current 25A <br>Line Charging Current 1.5A <br>Closed Loop Circuit Current 630A <br>Transformer Magnetizing Current 22A <br>Power Frequency Withstand Current Test <br>Wet Condition-10sec Ph- Ph-Eth, Across Interrupters 50kV <br>DryCondition-1min，Ph- Ph, Phase to Earth 64kV <br>Dry Condition - 1 min Across Interrupter 79kV <br>Impulse Withstand Current Test( 1.2 x 50 µs ) <br>Phase to Phase, Phase to Earth 125kV <br>Across Interrupter 145kV <br>Other Ratings &amp; Specifications <br>Internal Arc Test 20kA /0.1 sec <br>Arc Extinction Medium SF6 Gas <br>Insulation Medium SF6 Gas <br>Creepage Distance (Porcelain) 700mm <br>Creepage Distance (Silicon) 1200mm <br>Dry arcing distance ≥ <br>IP Level 65 <br>Operation Performance <br>Closing/Opening Time ＜1sec <br>Mechanical Operations (Guaranteed) 10000times <br>Operating Temperature (*Manual Type) -25～+70℃ <br>Gas Pressure <br>Nominal Pressure (MPa, at 20°C) 0.07 <br>Bursting Pressure (MPa) 0.4～0.6 <br>Minimum Gas Pressure (MPa) 0.05 <br>Leakage Rate (cc/ sec) ≤0.5% <br>Voltage sensors <br>CT ABC 10P10 5VA 400:05:00 <br>Incoming side and outgoing side of the voltage sensor 6 Voltage sensor（built-in） <br> Phase voltage：（24（36）kV/√3）/（3.25V/√3） <br> Special attention should be paid to the voltage sensor, which must be directly fed by the LBS load break switch. <br> No additional adjustment circuit can be added to the controller. The voltage signal of the switch into the test line needs to be tested separately. <br> <br>If you are looking for a reliable electric power equipment company, please choose us, and we will be your best partner. <br> <br> <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2F24kv-sf6-gas-load-break-switch.html[/a]

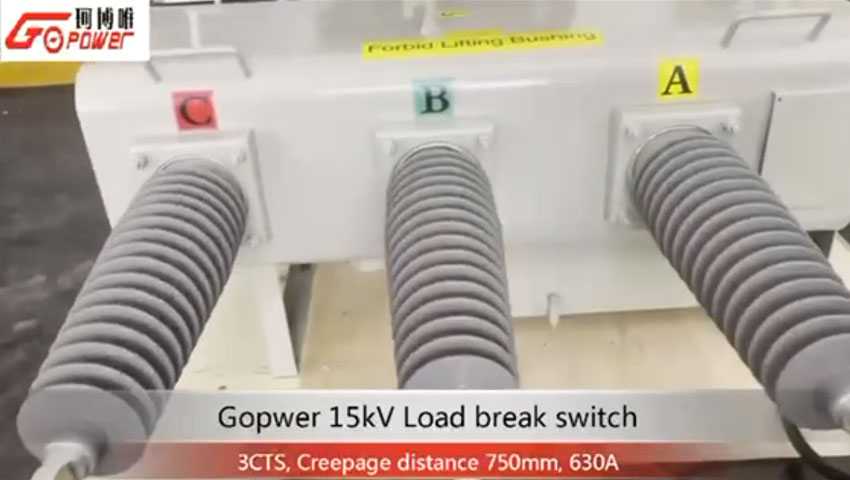

#automatic #recloser <br>15KV SF6 Gas Load Break Switch <br>15 kv pole mounted disconnect switch is suitable for rated voltage 15kV, rated current 630A, 50/60Hz distribution network breaking. The load current or overload current in a power system automatically isolates the faulty sections of the distribution line. <br> <br>With the latest technology electronic controller, this manual load break switch realizes manual operation, electric operation, and remote operation. The electronic controller is installed in the stainless steel box and can be used under various climatic conditions. In addition, 15kv load break switch cable and wireless modems can be installed in the box to realize remote monitoring and control. Simple installation and arrangement on the pole are convenient, quick, and low construction cost. <br> <br>Characteristics of 15KV SF6 Gas Load Breaker Switch <br>The 15KV pole mounted disconnect switch is made of proven durable, corrosion-resistant material. (304L stainless steel plate for warships), ensure a long service life (30years), our 15kv load break switch can carry out a series of operations, with the pole top equipment ideal characteristics. <br> <br>Each GOPOWER 15kv load break switch has been filled with sf6 gas before leaving the factory, sealed treatment. The 15 kv pole mounted disconnect switch test was carried out according to IEC60265-1 (1988) GB 3804-1990 standard. <br> <br>SF6 Gas 15KV Load Break Switch In Pole Mounted Switch Solution <br>15kv load break switch has a certain interrupting capacity because of the interrupting device, but 15 kv pole mounted disconnect switch is not as strong as the interrupting capacity of the circuit breaker, which can split the normal working current, and in the case of short circuit, he can only silently withstand the short circuit current, and if this time the manual or electric breaking may explode, so the load switch is generally used together with the current limiting fuse (load switch + fuse is not the standard configuration, and can also be used without fuse) In the event of an overload or short circuit, the circuit is broken by a fuse. In order to save costs, the load switch + fuse can replace the circuit breaker. Inquiry more pole top switches <br> <br>Specification of 15 KV Pole Mounted Disconnect Switch <br>Products Type FWX-15 <br>Basic Ratings <br>Maximum System Voltage 15KV <br>Rated Continuous Current 630A <br>Rated Frequency 50/60Hz <br>Short Time Withstand Current IKA/sec <br>Making and Breaking Capacity <br>Mainly Active LoadCurrent 630A <br>Number of Load-break Operations 400times <br>Short-circuit Making Current(peak) 50KA <br> <br>Number of Making Operations on 15 KV Pole Mounted Disconnect Switch <br>Number of Making Operations 5 times <br>Cable Charging Current lOA <br>Line Charging Current lOA <br>Closed Loop Circuit Current 630A <br>Transformer Magnetizing Current 22A <br>Power Frequency Withstand Current Test <br>Wet Condition- 10 sec (Ph- Ph-Eth, Across Interrupters) 50KV <br>DryCondition- I min ( Phase to Phase, Phase to Earth) 50KV <br>Dry Condition - 1 min (Across Interrupter ) 60KV <br>Impulse Withstand Current Test(1.2 x 50 µs) <br> <br>Internal Arc Test of 15 KV Pole Mounted Disconnect Switch <br>Internal Arc Test 20kA /0.1 sec <br>Arc Extinction Medium SF6 Gas <br>Insulation Medium SF6 Gas <br>Creepage Distance (Porcelain) 560mm <br>IP Level 54 <br>Operation Performance <br>Closing/Opening Tin &lt; O. l sec <br>Mechanica l Operations (Guaranteed) l OOOO times <br>Operating Temperature.1re(*Manual Type) -25～+70℃ <br>Gas Pressure <br>Nominal Pressure (kg/cm2 G, at 20°C) 0.07 <br>Bursting Pressure (kg/cm2 G) 4 ~ 6 <br>Minimum Gas Pressure (kg/cm2 G) 0 <br>Leakage Rate (cc/ sec) 1% <br> <br>Gopower Electrical Equipment &amp; Supplies: Directly related to the production of electrical energy and transmission and distribution equipment called primary equipment. The auxiliary equipment that monitors, measures, controls and protects the primary equipment is the secondary equipment. <br> <br> <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2F15kv-sf6-gas-load-break-switch%2F[/a]

#33kv #auto #recloser <br> <br> <br>11KV Auto Recloser Vacuum Circuit Breaker <br>ZW32 series 11 kv outdoor vacuum circuit breakers are used in distribution systems and pole mounted recloser. 11 kv outdoor vacuum circuit breakers are used to make and break normal and fault currents. 11kv outdoor circuit breakers are fully equipped with sensors and a controller to provide a means of protection and control. In case of a line fault, breakers can break and make currents several times, thus avoiding longer network interruptions due to temporary faults. <br> <br>The manufacture, design, and testing of the 11 kv breaker by our electric power equipment ltd China is based on current standards IEC 62271-100. We can give you the most competitive 11kv vacuum circuit breaker price . <br> <br>11 KV Outdoor Vacuum Circuit Breaker Application <br>The 11 kv outdoor vcb is equipped with one integrated current transformer per pole. The current transformer has a ratio of 600 A:5A. <br> <br>VCB rating for 11kv Recloser is for protection purposes and optimized for operation with the controller. For more pole top switches at bulk price. <br> <br>11KV Auto Recloser Technical Parameters <br>Products Type ZW32-12 <br>Maximum System Voltage 12kV <br>Rated Continuous Current 630A <br>Rated Frequency 50/60Hz <br>Short Time Withstand Current 20kA/1sec <br>Mainly Active Load Current 630A <br>Number of Load-break Operations 30 <br>Short-circuit Making Current (peak) 50kA <br>Number of Making Operations 5 times <br>Cable Charging Current 25A <br>Line Charging Current 1.5A <br>Closed Loop Circuit Current 630A <br>Transformer Magnetizing Current 22A <br>Wet Condition-10sec Ph- Ph-Eth, Across Interrupters 45kV <br>DryCondition-1min，Ph- Ph, Phase to Earth 42kV <br>Dry Condition - 1 min AcrossInterrupter 48kV <br>Phase to Phase, Phase to Earth 75kV <br>Across Interrupter 85kV <br>Internal Arc Test 20kA /0.1 sec <br>Arc Extinction Medium vacuum <br>Insulation Medium vacuum <br>Creepage Distance (Silicon) 780mm <br>Dry arcing distance ≥200mm <br>IP Level 67 <br>Closing/Opening Time ＜1sec <br>Mechanical Operations (Guaranteed) 10000times <br>Operating Temperature (*Manual Type) -25～+70℃ <br> <br>As an electric power equipment ltd, we will do our best to meet all the needs of customers. <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2F11kv-recloser-vacuum-circuit-breaker.html[/a]

#load #break #switch #11kv <br> <br> <br>SF6 Gas 11 KV Load Break Switch <br>The 11kv load break switch is suitable for the distribution network with the highest voltage 11kV, the rated current 630A, and the rated frequency 50/60Hz, which can break off and close the load current and overload current in the power system. The 11 KV LBS is equipped with an intelligent controller to realize the automation of the distribution system. Inquiry 11kv load break switch price. <br> <br>SF6 Gas 11 KV Load Break Switch Features <br>The operating mechanism with spring energy storage ensures fast closing and switching operation (&lt;1000ms). <br> <br>Operator place: Local/Remote. <br> <br>11KV LBS equipped with an electronic controller, this sf6 load break switch can be operated locally or with FTU/RTU interface for console operation. <br> <br>SF6 Gas 11 kv Load Break Switch In Pole Mounted Switch Solution <br>The type of high-voltage bypass type SF6 11KV LBS insulated load switch is divided into manual type and electric type, which is an engineering bypass type load switch used for the maintenance and construction of power distribution cabinet in order to make uninterrupted power supply to distribution lines. This 11kv load break switch utilizes SF6 gas, known for its outstanding insulation and arc extinguishing performance. Inquiry 11kv load break switch price. Check more pole top switches. <br> <br>SF6 Gas 11KV Load Break Switch PDF Specification <br>Parameter Name Unit Technical Requirement <br>Rated Maximum Voltage kV 12 <br>Rated continuous Current A 630 <br>Short Time Withstand Current kA 20 <br>Short-circuit Making Current (peak) kA 50 <br>Power Operating Time (Close/Open) sec &lt;2 <br>Mechanical Operations times 3000 <br>Rated full load operations times 400 <br>Breaking Capacity <br>Main Active (0.7pf) A 630 <br>Cable charging A 5 <br>Transformer magnetizing A 10 <br>Lightning Impulse Withstand Level <br>Phase to Earth kV 75 <br>Across interrupter kV 85 <br>Power Frequency withstand voltage <br>Phase to Earth kV 42 <br>Across interrupter kV 50 <br>Other Ratings &amp; Specifications <br>Creepage Distance (Silicon) mm 830 <br>IP Level 65 <br>Arc Extinction Medium SF6 Gas <br>Insulation Medium SF6 Gas <br>Leakage Rate cc/ sec ≤0.5% <br>Product size (max) <br>Width mm/in 1368/54 <br>Height mm/in 530/21 <br> <br>Environmental Conditions for Equipment Use of SF6 Gas 11KV Load Break Switch <br>Environmental conditions for equipment use <br>height above sea level：≤3000m <br>Air temperature： -40℃～+50℃ <br>Maximum diurnal temperature difference：≤25℃ <br>Relative humidity：Daily mean95% monthly average90% <br>Maximum wind speed：≤34m/ｓ <br>Earthquake intensity：＜8 degree <br>Icing thickness: ＜10mm <br>Thickness of snow: ＜35mm <br>irradiance: ＜0.1W/cm2 <br>Pollution grade: Ⅲ class, Ⅳ class Ⅲ, Ⅳ <br>Installation site: No fire disaster, explosion danger, chemical corrosion, and frequent strenuous vibration places <br> <br>11 KV Load Break Switch Working Procedure <br>The 11KV LBS load switch that uses SF6 gas as insulation and arc extinguishing medium is called the SF6 gas load break switch. It can be used to switch and switch load current and overload current, and it can also be used to switch and switch no-load circuits, no-load transformers, and capacitors and outdoor pole mounted load break switch groups, among others. All three-position load switches with the functions of connecting, disconnecting, and grounding have the characteristics of simple structure and low price. But the load switch cannot disconnect the short-circuit current. <br> <br>Intended Use of SF6 Gas 11KV Load Break Switch <br>The 11KV SF6 LBS load switch is an excellent load switch that many users have experienced in recent years. In addition to its long electrical life and strong braking force, it has the same advantages as the vacuum load switch. Its outstanding advantage is that it is easy to achieve three working positions (connected, disconnection and grounding), small current (inductance, capacitance) breaking, strong resistance to severe environmental conditions. It is suitable for popularization and application in urban and rural medium voltage distribution networks. <br> <br>As an electric power equipment company, we will do our best to meet all the needs of customers. <br> <br> <br>[a]https%3A%2F%2Fwww.zhgopower.com%2Fproducts%2F11kv-sf6-gas-load-break-switch%2F[/a]
