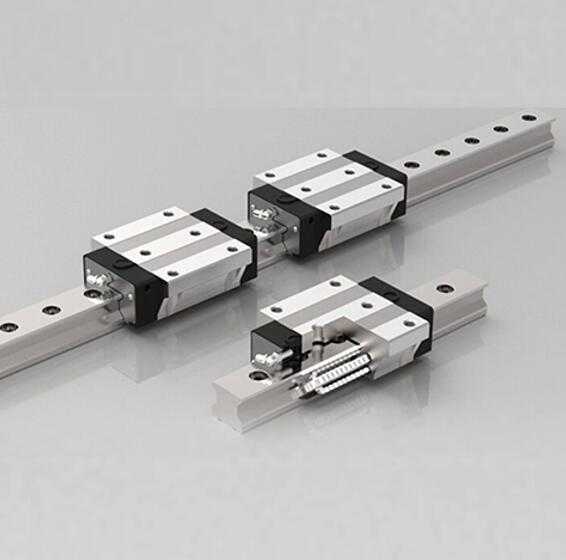

#guideways <br> <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Fstandard-roller-bearing-guides-lmr-series.html[/a] <br>Category： Linear roller lm guideways (LM Guideways) <br> <br>The LMR series roller-bearing linear guide from CSK linear guide manufacturer adopts a cylindrical roller-type rolling element to replace the traditional steel ball rolling element. The change from point contact to line contact significantly enhances its load-carrying capacity. When bearing high loads, the cylindrical roller rolling element exhibits minimal elastic deformation. The four rows of cylindrical rollers utilize a 45° contact angle DB design, resulting in high rigidity and load-bearing capabilities. <br> <br>Additionally, linear roller bearings can withstand equal loads in radial, reverse radial, and lateral directions. Moreover, it incorporates a specially designed cylindrical roller synchronizer that eliminates the gear effect caused by mutual friction during rolling. This greatly reduces walking resistance, enhances smooth operation, and effectively reduces noise levels. After years of verification, the China linear roller guideways plant produces the preloading setting and achieves a perfect balance between walking resistance, rigidity, and service life. The linear roller guide fully meets the high precision, high load-carrying capacity, high reliability, low noise, and smooth and stable linear motion requirements of high-end precision equipment Designed for linear guide consumers. <br> <br>Click on linear motion manufacturer to learn more. <br> <br>Characteristics of Standard Roller Bearing Linear Guide-LMR Series <br>-Ultra-high rigidity, super-heavy load-carrying capacity <br> <br>-Interchangeable linear roller-bearing slider <br> <br>-DB design for equal loads in four directions <br> <br>-Comprehensive lubrication design <br> <br>-Highly precise selectable grades: H, P, SP, UP <br> <br>-Fully sealed and available in various configurations <br> <br>-Smooth walking performance <br> <br>-Dust-proof steel belt design for the linear roller bearing slide rail <br> <br>-High-speed, low-noise operation <br> <br>-Linear roller bearing manufacturers follow international standards to produce, including dimensions and performance parameters <br> <br>Applications of Roller Standard Bearing Guides Rails-LMR Series <br>- Machine tools that require standard linear roller guide bearings(machining centers, large gantry, precision lathes, etc.) <br> <br>- Industrial automation (heavy-duty gantry robots, cantilever Cartesian robots, robot tracks) <br> <br>For more information about linear motion products, please feel free to contact us!

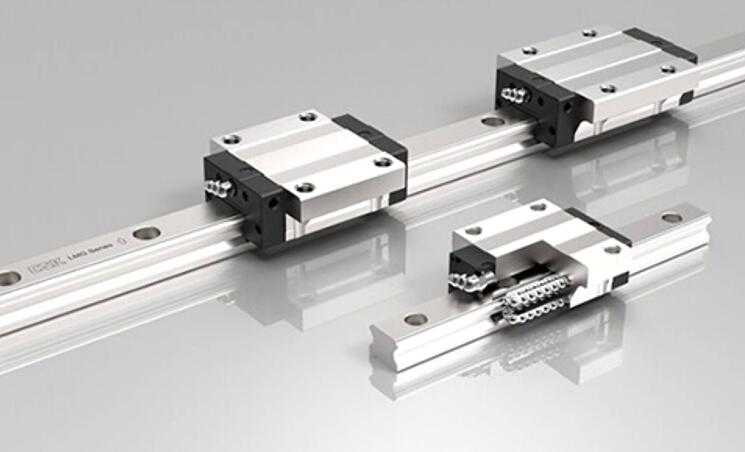

#bearing <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Fstandard-ball-bearing-guides-lmg-series.html[/a] <br>Category: Linear Guide Rails (LM Guideways) and Bearings <br>High rigidity, high ceiling <br>Four directions and other invoices <br>With automatic centering ability <br>Comprehensive sealing ball bearing guide rail system <br>High positioning accuracy and good regression <br>Excellent walking speed <br>High speed and low noise <br>Interchangeable <br>Common rail design in various places <br>Comply with international standards <br> <br>The LMG series linear guide bearing from CSK ball bearing guides manufacturer adopts four rows of steel balls and a 45-degree arc-shaped contact angle to bear the load. It is equipped with high-load and high-load performance. The ball bearing linear guide rails manufacture of CSK adopts the characteristics of the adjustment center can absorb the assembly tray on the installation surface during equipment, and the return movement of the steel ball rolling body provides the characteristics of low friction resistance, which fully realizes the high precision, high reliability, and smooth and stable straight line of precision equipment. exercise needs for manufacturing industries. <br> <br>Click on linear motion manufacturer to learn more. <br> <br>For more information about linear motion products, please feel free to contact us!

#Stainless <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Fstainless-steel-miniature-guide-rail-lmn-series.html[/a] <br>Category： Stainless Steel Linear Guide Rails (LM Guideways) <br> <br>The LMN series micro stainless steel guide rails from CSK miniature guide rails manufacturer adopts a two-row steel ball and Goethe-type four-point contact design, which can bear loads in all directions, making it highly rigid and precise. Suitable for spaces or parts that require small volume and lightweight, especially suitable for small automation equipment. There is a designed steel ball holder that can be interchangeable with precision. The metal parts of the stainless steel linear guide rail, slide block, steel ball, and accessories are made of stainless steel material, which has excellent rust-prevention characteristics. <br> <br>High rigidity and high load <br>Excellent rust prevention characteristics <br>High positioning accuracy and good reproducibility <br>Small volume and lightweight <br>Interchangeable type <br>Comply with international standards <br>Attractive in price and quality <br> <br>Click on linear motion manufacturer to learn more. <br> <br>For more information about linear motion control engineering, please feel free to contact us!

#motion <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Fsilent-ball-bearing-guides-lmgq-series.html[/a] <br> <br>Category：Linear Guide Rails (LM Guideways) <br>High rigidity and high load <br>Equal load in four directions <br>Equipped with automatic centering ability <br>Fully sealed dust prevention system <br>High positioning accuracy and good reproducibility <br>Low dust generation <br>Excellent walking smoothness <br>High speed and low noise <br>Interchangeability <br>Slider common rail design <br>Comply with international standards <br> <br>The LMGQ series low friction guide rail from CSK linear guide manufacturer is a high-performance precision linear guide rails developed based on the design of the LMG series linear motion guide rail actuator by China linear guide rail manufacturers, which has high rigidity and high load performance, while also being able to withstand equal load capacity in radial, radial, and left and right lateral directions. Its automatic centering feature can absorb assembly errors on the installation surface during equipment assembly. A special resin-made ball linkage is designed between the steel balls, which can effectively reduce the wear and collision between the steel balls during the operation of the slider, and provide lubricating oil storage space, thereby reducing the operating noise of the slider and extending its service life. <br> <br>Click on linear motion manufacturer to learn more.

#miniature <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Fminiature-linear-guide-rail-lmnw-series.html[/a] <br>Category： Ball Bearing Linear Guide Rail (LM Guideways) <br> <br>The LMNW series is designed with Gothic arch grooves in two rows, enabling it to bear an equal load in radial, reverse radial, and lateral directions due to its 45° contact angle. The LMNW mini linear motion guide way boasts high rigidity and excellent antirust resistance, thanks to the stainless steel construction of its metal components. With the miniature ball bearing and motorized linear slide&#039;s small size and lightweight, it is especially suitable for small automation equipment. Moreover, the manufacture of CSK produces LMNW miniature linear motion rail that offers interchangeability, high positioning accuracy, and complies with international standards. <br> <br>Click on linear motion manufacturer to learn more. <br> <br>The LMNW Mini Linear Slide Rail Is A Compact Powerful Device With A Multitude Of Features <br> <br>The LMNW mini linear slide rail has a static load capacity of up to 1350 lb, making it robust and reliable. It is available in five sizes, ranging from 7 mm to 20 mm base width, providing flexibility for various applications. <br> <br>The LMNW micro linear guide rail lengths can extend up to 3600 mm, accommodating different operational needs. One of its key features is its self-lubricating nature, reducing maintenance requirements. It has no rolling elements, eliminating the risk of catastrophic failure. <br> <br>The LMNW mini linear guide rails operate smoothly, quietly, and repeatably, ensuring consistent performance. It can withstand vibration and shock, enhancing its durability. It comes in two design configurations: Precision and Compensated, catering to specific precision needs. <br> <br>The LMNW small linear slide rail is ceramic-coated aluminum, while the carriage is anodized aluminum, ensuring long life and corrosion resistance. Despite its robust features, it has a compact design, making it space-efficient. It offers lead screw and stepper motor options and is interchangeable with comparable ball-style systems, providing versatility in its use. <br> <br>Applications of The LMNW Mini Linear Slide Rail <br>Miniature linear guideways are commonly used in machines and instruments requiring precise, low-friction guidance. The mini linear slide rails provide accurate guidance for loads and enable multi-axis movement in medical diagnostic equipment, laboratory automation systems, desktop robotic systems, and other compact devices. These miniature linear slides can be mounted on machines or equipment, allowing movement in horizontal, vertical, or other directions. <br> <br>Other hot products that interest you <br>CNC linear slide <br>industrial linear slides <br>ball bearing guide rail <br>precision linear guide rails <br>linear bearing with rollers <br>stainless steel guide rails <br> <br>For more information about linear motion guideway, please feel free to contact us!

#modules <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Flmk-series-single-axis-robot.html[/a] <br>The LMK series single axis linear modules are a series of versatile products driven by a motor, integrating ball screws and U-shaped tracks. The single axis linear motion provides high positioning accuracy and features quick selection, fast installation, compact size, and high rigidity. <br> <br>Small size and lightweight <br>High rigidity <br>Optimized design <br>Easy design and installation <br>High precision <br>Fully equipped. <br> <br>Click Here Linear Motion Guideway to learn more about linear motion modules. <br> <br>Single Axis Linear Modules, Motion, and Actuators <br>Single axis linear modules, single axis linear motion, and single axis linear actuators are interconnected components essential for achieving precise movement along a single linear axis. Single axis linear motion describes the straightforward movement that these systems aim to accomplish. The single axis linear actuator is the device that converts energy into this specific motion, acting as the driving force behind the system. Single axis linear modules package the actuator with other necessary elements like guide rails into a ready-to-use unit, simplifying the implementation of single axis linear motion in various applications. Together, these components form a cohesive system designed to facilitate controlled and accurate linear movement. <br> <br>For more information about linear motion guideway, please feel free to contact us!

#stator <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Flinear-motor-stator%2F[/a] <br> <br>A linear motion motor stator is an essential component in precision linear electric motor stators, a type of electric motor that provides linear actuator rotary motion without the need for traditional rotary-to-linear mechanisms like gears or belts. The linear motor stator is a stationary part of the motor that generates the electromagnetic field necessary for the magnetic linear motor&#039;s operation. <br> <br>Function of The Linear Magnetic Linear Motor Stator <br>CSK, a leading electric motor linear stator manufacturer, specializes in Linear Magnetic Linear Motor Stator, essential for various linear motors including magnetic linear motors and linear electric motors. <br> <br>Controlled Magnetic Field: The stator’s primary function is to generate a controlled magnetic field, crucial for the operation of all actuated linear motion systems. <br> <br>Interaction with Forcer: The stator’s magnetic field interacts with the forcer’s magnets or currents, creating linear motion. This interaction is key to the functioning of the magnetic linear slide. <br> <br>Influence on Motor Performance: The design and arrangement of the stator influence the motor’s speed, force, and precision, demonstrating its importance in the overall performance of the linear electric motor. <br> <br>Guidance for Forcer: The magnetic linear motion stator not only creates a magnetic field but also guides the forcer along its path, ensuring smooth and controlled movement. <br> <br>Applications and Features of The Linear Motor Stator <br>Linear motor stator moving parts are all non-contact, eliminating all sources of noise and friction. This friction-free and quiet operation allows it to be used in quiet surroundings, such as test laboratories and medical facilities. <br> <br>Another significant feature is its ability to maintain constant speed without any fluctuation. This makes it ideal for applications requiring precision, such as constant speed drug dispensing, which may be difficult to achieve with lead-screw or ball-screw systems. <br> <br>The electric motor stators are also environmentally compatible, operating well in a vacuum and in production locations where oil or water are factors. It boasts large stroke lengths of up to 4.6 meters, making it perfect for high-precision conveying over long distances, such as LCDs. <br> <br>The device offers high controllable speeds, exceeding 10 meters per second, ideal for line head drives in high-speed printers. Conversely, it can also provide low speed drives as slow as 8μm per second, making it suitable for delicate equipment in life sciences. <br> <br>Electric motor linear stators&#039; high resolution makes them useful for precise micro-positioning required in semiconductor equipment. This sequence of features makes the Linear Motor Stator a versatile and efficient tool for various applications. <br> <br>Motion Control of the Linear Motor Stator <br>The motion control of an electric motor linear motor stator involves precise regulation of its magnetic field to drive linear motion efficiently and accurately. Electrical currents are carefully adjusted to control the stator&#039;s magnetic field, influencing the mover&#039;s movement along the linear path. This control ensures smooth, precise, and dynamic motion in various applications, including high-speed trains, CNC machines, and robotics. Proper alignment between the stator and mover optimizes energy conversion, enhancing the overall efficiency and performance of the linear motion control systems. <br> <br>Coil or Magnet Arrangement of the Linear Electromagnetic Motor Stator <br>1. Coil Arrangement: <br>In some linear motor components, the electric linear motor stator consists of coils of wire wound around laminated cores, similar to traditional electric motors. When electric current flows through these coils, they generate magnetic fields. <br> <br>2. Magnet Arrangement: <br>In other precision linear motor magnetic field, the electric motor stator is equipped with permanent magnets, which eliminate the need for external power to create the magnetic field. The arrangement and polarization of these magnets are critical for proper motor operation. <br> <br>Contact CSK linear motion manufacturer to know more about linear motion control products.

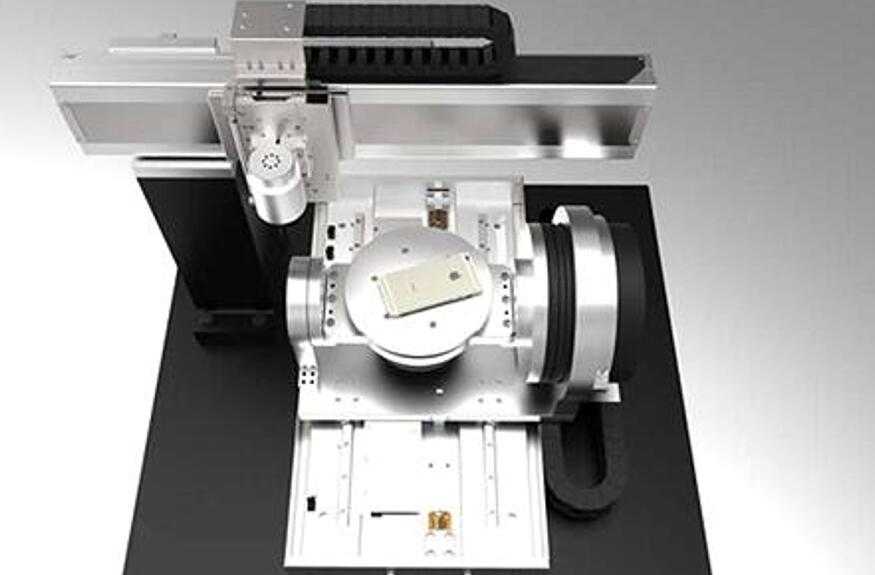

#Platform <br>[a]https%3A%2F%2Fen.cskmotion.com%2Fproducts%2Flinear-motion-platform%2F[/a] <br> <br>A Linear Motion Platform, also known as a linear motion stage or translation stage, is a mechanical device designed to provide controlled linear motion in various directions. linear motion stage consists of a base, a moving platform or carriage, and a means of actuation. Linear Motion Platforms are commonly used in applications that require precise positioning, scanning, or translation. Contact CSK linear motion manufacturer to know more about linear motion control products. <br> <br>Types of Linear Motion Platform <br>Linear Motion Platforms provide controlled and precise linear motion for a wide range of applications. Their versatility, accuracy, and customizable features make them valuable tools in industries that require accurate positioning and motion control. <br> <br>How Do You Select Linear Motion Platform? <br>Travel Range: The required distance the linear motion stages needs to move. <br>Load Capacity: The maximum weight the linear motion stages can support. <br>Speed and Acceleration: The desired velocity and acceleration capabilities. <br>Accuracy and Repeatability: The level of precision required for the application. <br>Environmental Factors: Considerations like temperature, cleanliness, and vibration sensitivity. <br>Integration and Compatibility: Compatibility with other system components, such as controllers or software interfaces. <br> <br>How Do You Select Linear Motion Platform? <br>Applications of Linear Motion Stages – Precision Motorized Translation Stages <br>Linear Motion Stages, specifically precision motorized translation stages, are essential components in various industrial and scientific applications, offering high accuracy and minimal runout errors. These motorized linear translation stages range from cost-effective, stepper-motor-driven models suitable for basic positioning tasks, to ultra-high-performance, closed-loop stages with linear encoders that provide nanometer resolution for applications requiring the utmost precision, such as semiconductor manufacturing and photonics instrumentation. <br> <br>For applications demanding high speed, superior velocity control, and the highest precision, the linear electromagnetic motor is the ideal choice. These eliminate the inefficiencies of converting rotational to linear motion, enhancing performance. Additionally, for the ultimate precision and smoothness over extended travel ranges, direct drive linear stages equipped with air bearings are available, minimizing friction and wear by eliminating mechanical contact. <br> <br>In essence, the development of linear motion stages caters to a broad spectrum of needs, from basic to highly specialized applications, ensuring there’s a precision positioning solution for nearly any requirement in the realm of industrial and scientific research. <br> <br>Applications of Linear Motion Stages – Precision Motorized Translation Stages <br>Benefits of Linear Motion Platform <br>- Precise Positioning: Linear Motion Platforms offer high accuracy and repeatability, allowing for precise positioning of objects or components. <br> <br>- Smooth and Stable Movement: Linear motion stages provide smooth and stable linear motion with minimal vibration or backlash. <br> <br>- Flexibility and Customization: Linear Motion Platforms can be customized to meet specific application requirements, including different travel lengths, load capacities, and mounting options. <br> <br>- Integration: Linear motion stages can be easily integrated into larger systems or workstations. <br> <br>- Automation Capability: Motorized platforms can be automated and controlled using software or external devices. <br> <br>- Diverse Applications: Linear Motion Platforms are widely used in areas such as microscopy, metrology, automation, semiconductor manufacturing, laser processing, and research and development. <br> <br>Structure and Components of Linear Motion Platforms <br>Base: The foundation of the linear motion stages that provides stability and support. <br> <br>Carriage or Moving Platform: The component that moves along the linear axis. <br> <br>Actuation Mechanism: How motion is achieved, such as lead screws, ball screws, linear motors, or belts. <br> <br>Guide System: Includes precision linear guides, rails, or bearings that provide smooth and precise movement along the desired axis. <br> <br>Drive Mechanism: Converts rotary motion from the actuator into linear motion, such as a threaded rod or belt drive.
