Immersion gold finishing on 8 layer power supply which made of 8 layer heavy copper core pcb in FR4 EM827 material. The board thickness is 1.60 mm and 3 Oz copper thickness of inner and outer layer. 8 layer circuit board widely uses in tablet power supply. Don’t hesitate to contact Hitech, your best supplier of 8 layer power supply circuit board in China. <br> <br>Technical Parameters <br>8L Heavy copper core PCB <br>Layer: 8L <br>Material: FR4 EM827 <br>Board thickness: 1.60mm <br>Surface finished: Immersion gold <br>Copper thickness: Inner layer 3 Oz, out layer, 3Oz <br>Application：tablet power supply

FR-4 Tg170, the material of 12 layers heavy copper printed circuits board which with immersion gold finishing. The copper thickness is 3 Oz for all layers and 0.3 mm min through hole. Hitech offers kinds of heavy copper printed circuit board what can widely use in high power rectifiers. It’s not only conducts various layers of circuits, but also insulates each other. <br> <br>Technical Parameters <br>12L heavy copper PCB printed wiring board <br>Layer: 12L <br>Material: FR-4 Tg170 <br>Thickness: 2.6mm <br>Surface finished: Immersion gold <br>Copper thickness: 3 Oz for all layers <br>Min.line width/space: 8mi <br>Min through hole: 0.3mm <br>High power rectifiers

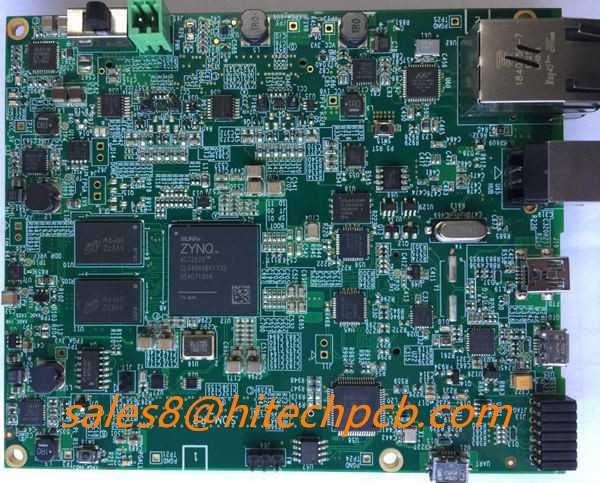

The pcb assembly factory-Hitech also manufactured printed circuit boards with the highest reliability in all industries. Such as aerospace, defense, automotive, medical and other fields. <br>Technical Parameters <br>We offer a number of services including traditional PCB assembly and Surface Mount (SMT) assembly. Hitechpcb offers turnkey electronic PCB manufacturing services for the medical, industrial control, audio-visual and many other industries with high reliability requirements. Certified to international production standards, our rapid turnaround PCB assembly and comprehensive box build services cover all phases of the production cycle, from design and manufacturing through to distribution.

Hitech Circuits Co., Limited specialize in PCBA manufacturing and selling high-precision, high-density rigid PCBs and PCB assembly. We are a professional PCB and PCBA solution service provider specializing in one-stop service from PCB, components purchasing, PCB assembly to complete products building. <br> <br>Items Capability <br>1 PCB assembly min IC pitch 0.30mm (12mil) <br>2 PCB assembly foot pin SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA <br>3 PCB assembly min chip placement 01005 <br>4 PCB Assembly Max PCB Size 410 x 600mm (16.2 x 23.6″) <br>5 PCB assembly min PCB thickness 0.35mm (13.8mil) <br>6 PCB assembly maximum BGA size 74 x 74mm (2.9 x 2.9″) <br>7 PCB assembly BGA ball pitch 1-3mm (4-12mil) <br>8 PCB assembly BGA ball diameter 0.4-1mm (16-40mil) <br>9 PCB assembly QFP lead pitch 0.38-2.54mm (15-100mil) <br>10 PCB assembly packing Anti-static bubble bag and cartol <br> <br>For PCBA order, provide us: <br>1. PCB Gerber file <br>2. BOM list for PCBA <br>3. Sample of PCB and PCBA <br>4. Test method for PCBA

Express PCB prototype assembly service is ideal for quick-turn prototypes and small production runs. Hitech’s efficient and express printed circuit boards assembly prototyping service team can assemble PCB in as little as 24 hours. <br> <br>Technical Parameters <br>We understand the importance of prompt delivery, especially for R&amp;D Company and R&amp;D Dept. the sooner the components are sourced, the sooner we can begin circuit board fabrication. We thoroughly evaluate engineering inquiries and related parts concerns with our clients before commencing printed circuit board assembly. The average time taken for turn-key PCB assembly is two weeks, which can be further reduced if there are no hard-to-locate components or documentation mistakes. <br> <br>For a Express PCB prototype assembly quote, please email the following files to [email protected] : <br> <br>BOM list <br>Gerber files <br>Quantity required <br>Our team is qualified to manage the complete process, which includes the sourcing of all components (PCB and Components), online order tracking and their management, PCB assembly, quality control and delivery. <br> <br>We have specialized experts to deliver fast-turnaround, prototype printed circuit board assembly with surface-mount (SMT), through-hole (THT) and mixed-technology components. Our efficient and express PCBA prototyping service team can assemble printed circuit boards in as little as 24 hours.

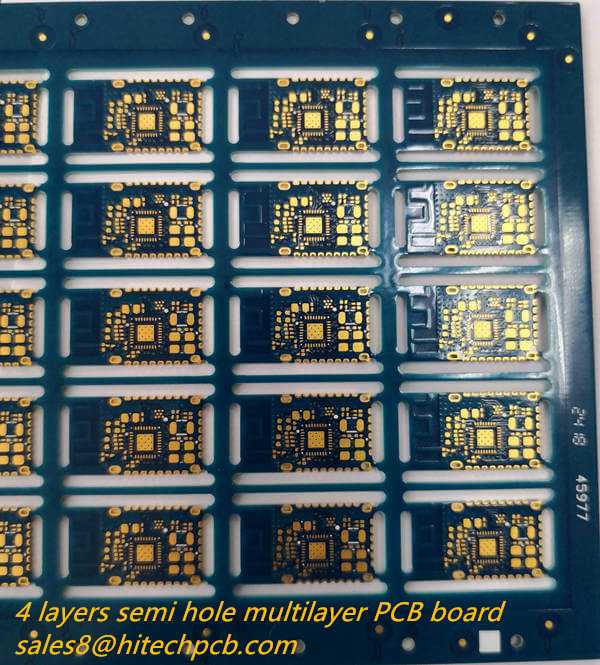

Hitech’s 4 layer semi hole multilayer pcb with immersion gold surface treatment which made of FR-4 Tg150 Halogen free. Mainly used in consumer electronics, any item of multilayer pcb you need, feel free to contact us. <br> <br>4Lsemi hole multilayer pcb <br>Technical description <br>Material: FR-4 Tg150 Halogen free <br>Board thickness: 0.8mm <br> finished: Immersion gold <br>Copper thickness: 1 Oz for all layers <br>Solder mask: TaiYo blue <br>Min through hole: 0.2mm <br>Consumer Electronics

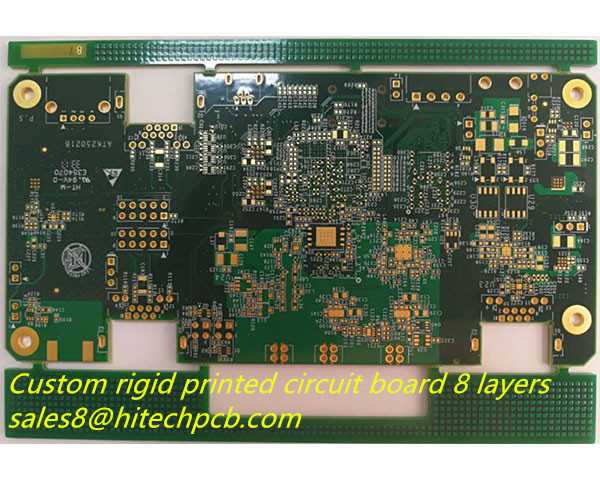

Rigid 8 layers printed circuit board (PCB) offers multi-layer PCB conductive wire and high density drilling, 8 layer printed circuit board is usually installed into compact devices such as digital cameras, cell phones, passive switch boxes, radios, etc; secure and reliable. Email [email protected] if you in need of multi-layer PCB. <br> <br>8L multilayer printed circuit board <br>Technical description <br>Material: FR-4 Tg170 <br>Board thickness: 1.60mm <br>Surface finished: Immersion gold <br>Copper thickness: 1 Oz for all layers <br>Min.line width/space: 4/4mil <br>Min through hole: 0.2mm <br>Communicationl
