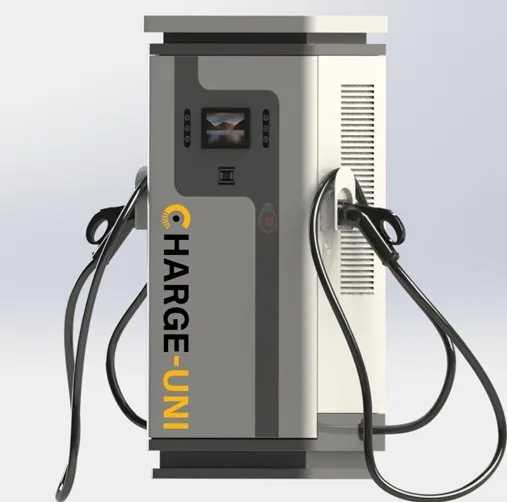

120KW CCS2 DC Charger
The 120KW DC CCS2 charging pile complies with European standards and is available with both CCS2 and CHADEMO charging plugs. It takes less than an hour to fully charge a 60KwH battery and the extremely low operating losses make it an excellent public charging product.

Details of 120KW DC Charger
Online Diagnostics
Our DC chargers can support online diagnostics to determine problems and OTA upgrades to fix them.

Network Support
The charger supports Ethernet or the optional 4G for networking, allowing users to connect the device via their own mobile device.

Specification of 120KW CCS 2 Charger
Model Number CU-EU5
DC Power Input Rating 150V~1000V DC
Rated Frequency 50/60Hz
Output Current 200A
Output Power 120kW
Connector Type 4.5m CCS2 charging cable
HMI 7-inch touch LCD
Connectivity Ethernet/4G (optional)
Communication Protocol OCPP 1.6J
Protection IP54

As a home ev charger factory, we can provide kinds of electric car charger for home for sale, if you have needs, please contact us.
