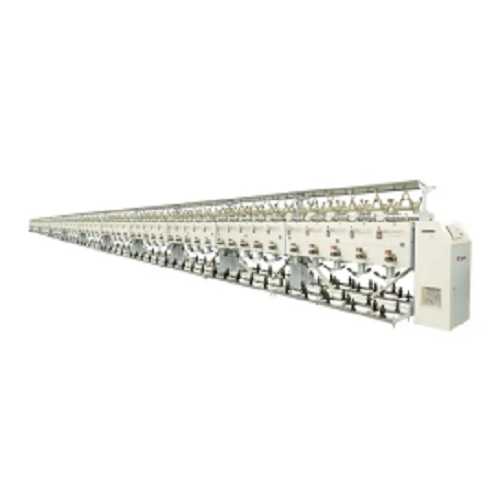

RFAW20 High-Speed Assembly Cone Winding Machine
This product is a new assembly winder machine with a grooved drum that is based on the original model and optimizes the yarn guiding path. The product can be used to combine 2~3 strands of cotton, hemp, wool, and partial blending yarns into a doubling bobbin, which is suitable for processing subsequent processes such as a two-for-one twister machine.

Specification of RFAW20 High-Speed Assembly Winding Machine
Items Parameters
Type Of Machine Double-side, single layer
Spindle Gauge 415mm
Yarn Type Cotton yarn, wool yarn, polyester yarn, blending yarn, etc
No. of Spindles Standard 100 spindles, 10 spindle/ section
Yarn Strands No. Of Merging 2-3Ply
Anti-stack Mode Electric intermittent type and grooved drum anti-fold
Driving Mode Single spindle motor direct driving
Winding Mode Random winding
Guiding Yarn Mode Groove drum
Yarn Guide Travel Route 152mm（6”）; 212mm（8”）
Max Yarn Speed 800m/min
Max Package Diameter Ø200mm
Tension Control Spring compression type
Yarn Break Monitoring Method Photoelectric break yarn detection, automatic stop and cut-off
Motor Power 0.09kW/spindle (6” ); 0.12kW/spindle (8”)

Features of RFAW20 High-Speed Assembly Winding Machine
1
Whole new bobbin creel structure to meet the stability requirement of yarn operation.

2
Excellent yarn passing passage structure to ensure high-speed running of yarn.

3
Optimized grooved drum structure can greatly reduce occurrence of yarn splitting.

4
Whole new control system to meet the process requirements of different customers.

As a textile winding machine manufacturer, we can provide kinds of textile cone winding machine for sale, if you have needs, please contact us.
