Threaded entry of metric m10 cable gland: Metric.
Material of metric gland: NYLON 66 UL Listed, IP68.
Sealing Nut of metric cable gland: NBR, EPDM.
Color of metric gland: Black and other colors available.
Use of metric gland: Install from inside and outside of the hole, and screw the sealing nut, to seal the hole.
Application temperature of metric gland: -40℃-100℃，the item can also endure 120℃ instantly.
Application of metric cable gland: sealing the electrical box connecter hole, wire installs to inside and keep dust and water out.

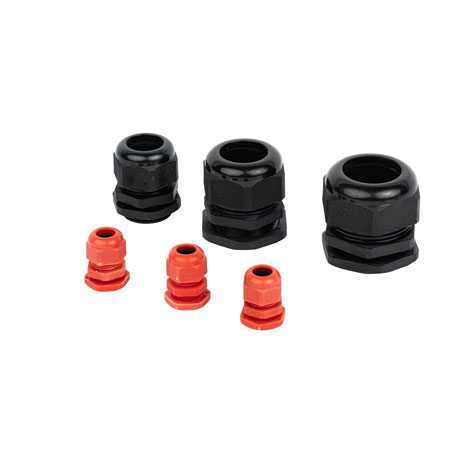

Technical Specification Of Nylon Metric Cable Gland-M
ITEM NO. THREAD CABLE RANGE INNER DIA GL H(mm) OUTER DIA
STANDARD SKU MM MM MM MM
HTG-M12 M12 ×1.5 3-6.5 7.9 13.3 12
HTG-M16 M16×1.5 5-10 15 15.8 16
HTG-M20S M20S×1.5 3-7 15 18.4 20
HTG-M20M M20M×1.5 6-12 15 18.4 20
HTG-M20L M20L×1.5 10-14 15 19.5 20
HTG-M25 M25×1.5 13-18 15 22.3 25
HTG-M32 M32×1.5 18-25 15 24.8 32
HTG-M40 M40×1.5 25-32 18 31.6 40
HTG-M50 M50×1.5 30-38 18 31.6 50
HTG-M63 M63×1.5 34-44 18.5 32.6 63
