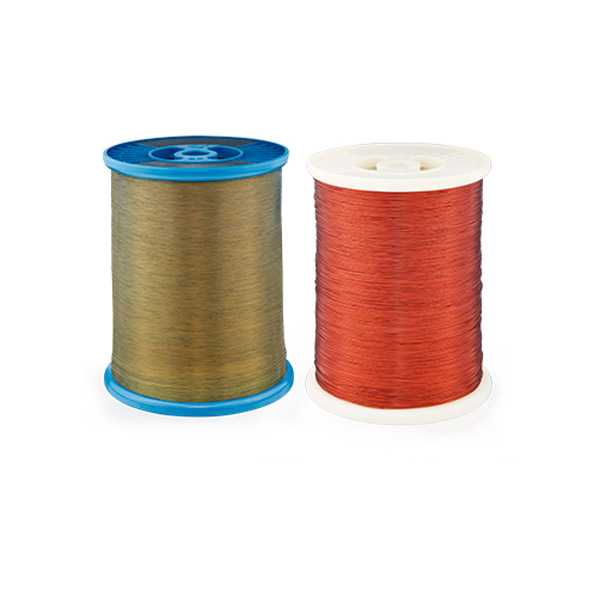

Anti-Corona Soldering Magnet Wire
The anti-corona enameled copper wire for frequency conversion motor produced by our company can improve the partial discharge performance and extend the service life of the motor. This product can be widely applied to all kinds of frequency conversion speed-regulating motors, lifting motors, elevator motors, etc.

Anti-Corona Square Magnet Wire Performance Advantages

Can work continuously at 200 ℃

High temperature and radiation resistance

With high strength and wear resistance

Corona resistance

Anti-Corona Magnet Wire Performance Parameter
Thermal level Specifications range Standard
code level mm AWG JB/T GB NEMA JIS
C 200 0.4-2.0 12#-26#* 10930-2010 14711-2013 - -

Anti-Corona Winding Magnet Wire Executive Standard

Product performance standards: GB/T 6109.4, GB/T6109.10, GB/T6109.23, JIS-C3202, IEC60317-19, IEC60317-21
