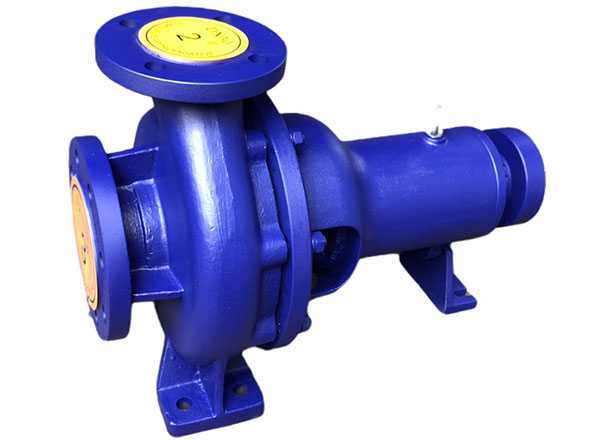

IHF Series FEP lined chemical resistant centrifugal pump are newly designed single-stage, single suction fluoroplastic alloy centrifugal pumps. With unique some advantages of centrifugal chemical pumps like anti-corrosion, wearable, anti-high temperature, no aging, high mechanical strength and no toxin decomposer etc. All Pumps Machinery also supply non-leakage chemical centrifugal pump and other kinds of pumps, inquiry chemical resistant centrifugal pump price now!

FEATURES OF FEP LINED CHEMICAL RESISTANT CENTRIFUGAL PUMPS
Advance structure insures anticorrosion, strict seal, low noise and long life etc.
Metal shell with FEP (F46) Fluoroplastic lining.
metal with fluoroplastic lining impeller and pump cover.
Shaft seal bellows mechanical seal set outside.
Silicone carbide stationary ring and rotary ring, or gland packing Teflon rotary ring.

SPECIFICATION OF FEP LINED CHEMICAL RESISTANT CENTRIFUGAL PUMP
Model Inlet Outlet Flow Head Power Rotary speed (NPSH)r
(mm) (mm) (m3/h) m kw r/min m
IHF32-25-125 32 25 5 20 1.5 2900 2.3
IHF32-25-125A 32 25 4.5 16 1.1 2900 2.3
IHF32-25-160 32 25 5 32 2.2 2900 2.3
IHF32-25-160A 32 25 4.5 28 1.5 2900 2.3
IHF40-32-125 40 32 6.5 20 2.2 2900 2.5
IHF40-32-125A 40 32 5.6 28 1.5 2900 2.5
IHF50-32-125 50 32 12.5 20 2.2 2900 3
IHF50-32-160 50 32 12.5 32 4 2900 3
IHF50-32-200 50 32 12.5 50 7.5 2900 3
IHF65-50-125 65 50 25 20 3 2900 3.5
IHF65-50-160 65 50 25 32 5.5 2900 3.5
IHF65-40-200 65 40 25 50 11 2900 3.5
IHF80-65-125 80 65 50 20 5.5 2900 4
IHF80-65-160 80 65 50 32 11 2900 4
IHF80-50-200 80 50 50 50 15 2900 4
IHF100-80-125 100 80 100 20 11 2900 4.5
IHF100-80-160 100 80 100 32 15 2900 4.5
IHF100-65-200 100 65 100 50 30 2900 4.5
IHF100-65-250 100 65 100 80 45 2900 3
IHF125-100-160 125 100 160 32 30 2900 3
IHF125-100-200 125 100 200 50 55 2900 3
IHF125-100-250 125 100 200 80 75 2900 3
IHF125-100-160 125 100 80 8 5.5 1450 3
IHF125-100-200 125 100 100 12.5 11 1450 3
IHF125-100-250 125 100 100 20 15 1450 3
IHF150-125-250 150 125 200 20 22 1450 3
IHF150-125-315 150 125 200 32 45 1450 3
IHF150-125-400 150 125 200 50 75 1450 3
IHF200-150-250 200 150 400 20 55 1450 3
IHF200-150-315 200 150 400 32 75 1450 3
IHF200-150-400 200 150 400 50 110 1450 3
