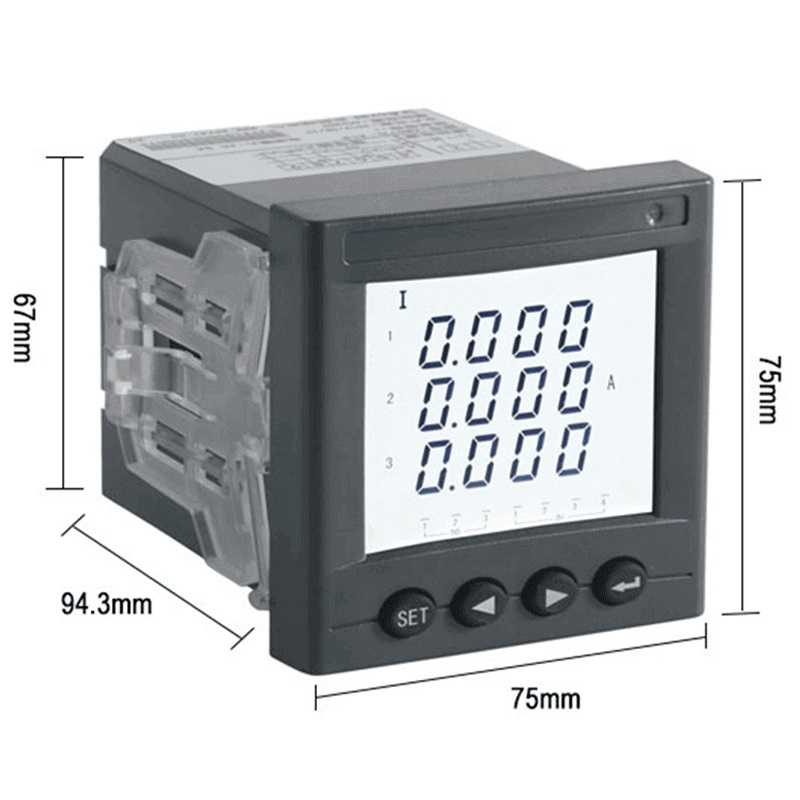

AMC72L-E4

Three phase energy meters have RS-485 port, Modbus-RTU protocol. Analog output, alarm output, and 3 phase smart meter' s switching input/output can be selected. The three phase digital energy meter display voltmeter adjusts the parameters through the panel button, the intuitive display system runs at one time, three rows of digital kwh meter 3 phase display the three-phase value at the same time, the LED digital real-time display, and the instrument can set the display value through the display panel button. Acrel provide types of digital energy meter 3 phase to meet your needs and contact us for the digital electric meter price.

Technical parameter of AMC Three Phase Energy Meter
Phase 3 phase 3 wire, 3 phase 4 wire
Voltage AC 3×57.7V/100V(100V), 3×220V/380V(400V), 3×380V/660V(660V)
Current AC1A, 5A
Frequency 45Hz～65Hz
Display LED or LCD
Installation Panel mounted
Accuracy Class 0.5
Option /C RS485, Modbus-RTU protocol
/K 4DI/2DO
/2M 2 analog output
/SOE event record
/H THDi, THDu, 2-31st harmonic
Power supply AC/DC 85-265V, DC24V, DC48V

As one of power meter manufacturers, we can provide kinds of three phase energy meter for sale, anything you need, please leave us a message.
