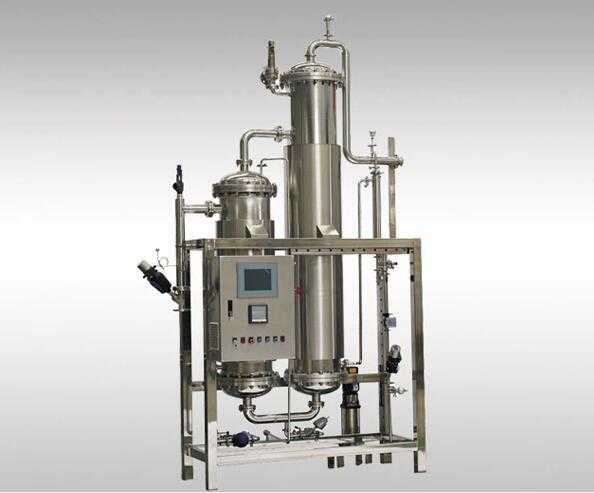

PURE STEAM GENERATORS
A pure steam generator is one of the important equipment used for tank equipment, pipeline system, and filter disinfection, and pure steam generator pharmaceutical can also be used to drive sterilizers. The pure steam quality of the heat-free ultra-pure steam generation system produced by BIOCELL meets the relevant provisions of EN285, and the quality of the pure steam condensate meets the requirements of the current Chinese Pharmacopoeia, USP, and JP for water for injection.

Pure Steam Generation System Specification
Specification Steam Pressure(Mpa) Pure Steam Output(Kg/h) Steam Consumption(Kg/h) Purified Water Consumption(L/h) Pure Steam Pressure(Mpa) Dimension L×W×H(mm)
PSG100 0.4 100 130 125 0.3 700×900×2500
PSG200 0.4 200 260 250 0.3 700×1000×2700
PSG300 0.4 300 390 375 0.3 800×1100×2800
PSG400 0.4 400 520 500 0.3 800×1200×3000
PSG500 0.4 500 650 625 0.3 800×1300×3100
PSG600 0.4 600 780 750 0.3 900×1300×3100
PSG700 0.4 700 910 875 0.3 900×1300×3100
PSG800 0.4 800 1040 1000 0.3 1000×1300×3200
PSG900 0.4 900 1170 1125 0.3 1000×1300×3200
PSG1000 0.4 1000 1300 1250 0.3 1200×1300×3200
PSG1500 0.4 1500 1950 1875 0.3 1400×1300×3200
PSG2000 0.4 2000 2600 2500 0.3 1400×1300×3200

Biocell offers equipment and engineering system of generation, storage and distribution of purified water, water for injection, pure steam as well as ultra-pure water system in pharma industry and also cosmetic and food & beverage industries.
