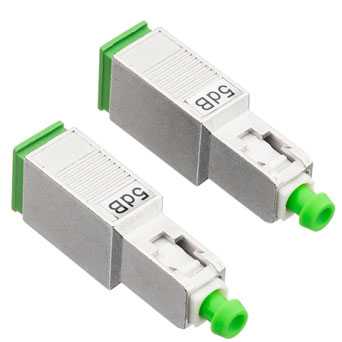

SC Attenuator
Applied to SC-APC optical fiber interface, SC interface and RJ-45 interface look similar, but SC interface is flatter.

Specification of SC Fiber Optic Attenuator
Fiber Connector SC/APC
Ferrule Type Zirconia Ceramic
Connector Gender Fixed Male to Female
Transfer Mode Singlemode
Attenuation 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB
Operating Wavelength(nm) 1260~1620(SM)
Attenuation Accuracy ±0.5dB
Return Loss ≥60dB
Polarization Dependent Loss ≤0.2dB
Humidity 95%RH
Operating Temperature Range -40~85°C
Storage Temperature Range -40~85°C

Specification of SC UPC Fiber Optical Attenuator
Fiber Connector SC/UPC
Ferrule Type Zirconia Ceramic
Connector Gender Fixed Male to Female
Transfer Mode Singlemode
Attenuation 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB
Operating Wavelength(nm) 1260~1620(SM)
Attenuation Accuracy ±0.5dB
Return Loss ≥55dB
Polarization Dependent Loss ≤0.2dB
Humidity 95%RH
Operating Temperature Range -40~85°C
Storage Temperature Range -40~85°C

There are many fiber optic products manufacturers, but we are one of the best choices for you.
