#pg #32 #gland

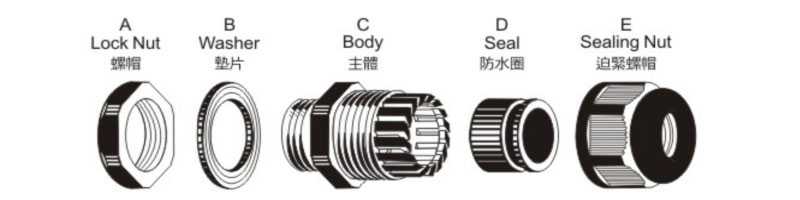

Cable gland is considered as a seal tool install cable into outdoor electric box, and other electric devices. Engineer open hole in the electric box to attach cable, but the hole left open may bring in the water or dusty and damage the electrical appliances, cable gland can be depart as two gland body and lock nut, install from the inside and outside of hole, seal the hole in the meantime protect cable from edge cut. Another tech standard is pg 32 gland should be IP68 level in GB 4208-2008/IEC 60529-2001, inside insulated ring and sealing nut as components of seal system, keep the dusty and water.

Applications of Nylon Cable Gland-PG
Material of pg cable: NYLON 66 UL Listed, IP68
Sealing Nut of pg cable gland: NBR, EPDM
Color of pg gland: Black and other color available.
Use of pg nylon electrical stuffing glands: Install from inside and outside of hole, and screw the sealing nut, to seal the hole.
Application temperature of pg 19 gland: -40℃-100℃, the item can also endure 120℃ instantly
Application of pg cable: sealing the electrical box connecter hole, wire install to inside and keep dusty and water out.
