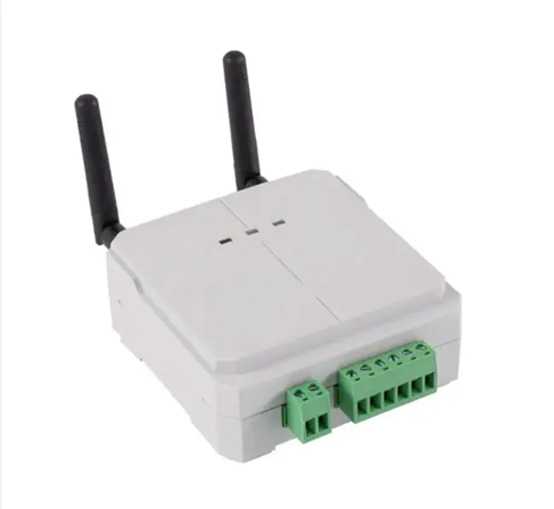

ATC600 wireless transceiver is used with ARTM wireless temperature measurement system. It can be used in 3~35kV indoor switch cabinets, including central cabinets, handcart cabinets, fixed cabinets, ring network cabinets and other switch cabinets, and can also be used in 0.4kV low-voltage cabinets , including fixed cabinets, drawer cabinets, etc., using wireless data transmission technology, the monitoring data can be sent in real time, the temperature can be displayed on the spot, or remote intelligent monitoring can be realized.

Acrel ATC 600 Wireless Temperature Transmit Benefits

Wireless transmit,470MHz
Wireless distance, Receiver sensor 150m (in open area), Relay distance 1Km (in open area)
Measuring 240 points
Power supply, AC/DC100~256V
Relay output, 2 passive output, capacity 5A/AC250V, 5A/DC30V
RS485(MODBUS-RTU)

For more information about atc 600 manual and 3 phase current transformer, please feel free to contact us!
