Advantages
Class I Division 1,Group A,B,C,D

Zone 1, Zone 2

Class II Division 1,Group E,F,G

Zone 21, Zone 22

Class III

Type 4X，IP66

Ex d IIC T6 Gb

Max.160A

Ex tb IIIC T80℃ Db IP66

Built-in Terminal blocks

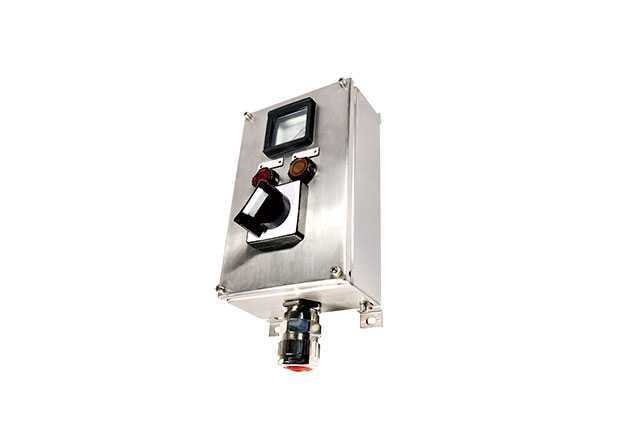

Stainless steel material explosion proof panel SPN-ed-S series are widely used to withstand high strength mechanical impact and resist high corrosive condition in explosive atmosphere. Installed with built-in flame proof Ex d hazardous location circuit breaker in increased safety Ex e housing and operating handle on the housing cover, this explosion proof panelboards can be used as hazardous location panel and atex db whose hazard class division is class 1 div 2 group A, B, C, D and zone 1 group IIC.

Features
Explosion Proof Panel SPN-ed-S Series

01
Increased safety Ex e stainless steel housing

Explosion Proof Electrical Panel
02
Flame proof Ex d electrical breakers, buttons and indicators

Explosion Proof Panelboard
Selection Table

Data Sheet
Explosion Proof Panel SPN-ed-S Series

Compliaces IEC Standard
IEC60079-0, IEC60079-1,IEC60079-31
Ex d e IIC T6 Gb
Ex tD A21 T80℃ IP66
Zone 1, Zone 2
Zone 21, Zone 22
EU Standard
EN60079-0, EN60079-1, EN60079-31
II 2 G Ex d e IIC T6 Gb
II 2 D Ex tb IIIC T80℃ Db IP66
Zone 1, Zone 2
Zone 21, Zone 22
NEC & CEC Standard
Class I, Div.1, Group A, B, C, D
Class II, Div.1, Group E, F, G
Class III
UL Standard
UL844, UL1598, UL1598A
CSA Standard
CSA C22.2 No.137
Material Stainless Steel
Rated Voltage Max.100V AC
Rated Current Max.160A
IP Grade Wet Locations, Type 4X, IP66
Ambient Temperature -60℃~ +60℃ /-76°F ~ +140°F
Cable Entry Metric or NPT thread type plugs (standard) or cable glands
Buite-in Components Main Switch(MCB or MCCB), Branch Switch(MCB or MCCB), Indicator, Pushbutton,Terminal etc.
