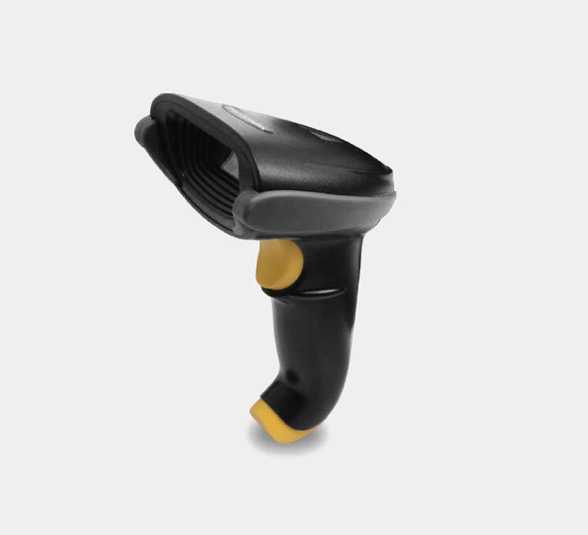

Superlead 2200N Fashionable Simple Code Scanning Gun
Classic black and yellow color, atmosphere and simplicity

Omni-directional Read main 1D,2D barcode

Low power consumption and powerful performance

Cost effective

Support RS232 interface and USB interface

Details of Superlead Cost-effective Handheld 2d Barcode Reader 2200

SuperLead

2200

Area-Imaging Scanner

Simple Atmosphere Designs

Low Power Consumption, Strong Performance.

Read all Mainstream 1D/2D Barcodes.

Fast Mobile Phone Screen Barcode Reading.

Build in RS232 and USB Interface.

Large scanning window of the 2d handheld barcode scanner

Self-inductive influence reading

Support sports reading, sensitive scanning

Support barcode reading without backlight

3 working modes (normal mode, mobile phone model, fast-moving mode)

Multi-language barcode information direct transmission

Application scenarios

supermarkets, restaurants, tobacco hotels, customer service front desk, medical and pharmaceutical, etc

Specification of Superlead Cost-effective Handheld 2d Barcode Reader 2200

Suzhou SuperMax Smart System Co., Ltd. 2200
Technical Specification
Physical Characteristics
Dimensions: 170mm x 95mm x 70mm
Weight: 162.2g
Voltage : 5V (DC)
Current: 80mA (standby); 400mA (Operating)
Performance Characteristics
Image (Pixels): 640 pixels (H)x 480 pixels (V)
Light Source: Aiming: 617 nm LED; Illumination: 6500K LED
Field of View: Horizontal ≥ 40°, Vertical ≥ 32°
Roll / Pitch / Yaw: 360°, ±65°, ±60°
Print Contrast: 25% minimum reflective difference
Interfaces Supported: USB, RS232
Motion Tolerances up to 25 in. (63.5 cm) per second
Symbology Decode Capability
1-D: UPC, EAN, Codel28, Code 39, Code 93, Codellz Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 Data Bar, China Postal, Korean Postal, etc.
2-D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
User Environment
Operating Temperature: 0°Cto 50°C
Storage Temperature: -40°C to 70°C
Humidity: 0% to 95% relative humidity, nozondensing
Shock Specifications: Designed to withstand 1.5m(5') drops
Ambient Light Immunity: 100.000 Lux.
Decode Ranges
5 mil (Code 39) 20mm-70mm
13 mil (Upc-a) 40mm-160mm
ID Minimal Resolution 4mil
Performance may be impacted by bar code quality and environmental conditions
