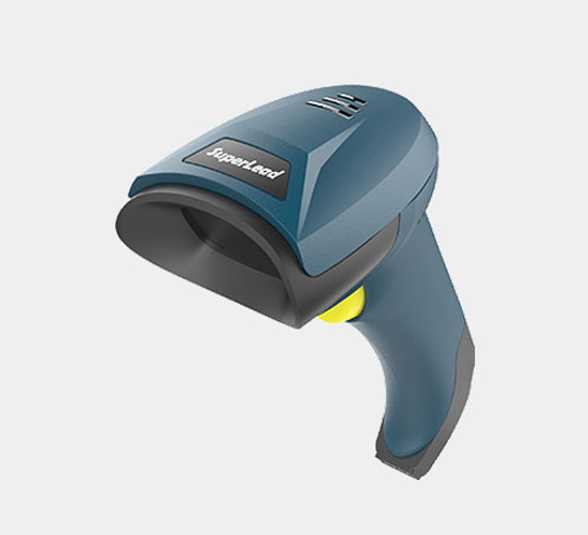

Superlead 2620BT Good Performance 1D/2D Wireless Scanner
Large scanning window of the cordless handheld scanner

Self-inductive influence reading

Support sports reading, sensitive scanning

Support barcode reading without backlight

3 working modes (normal mode, mobile phone model, fast-moving mode)

Multi-language barcode information direct transmission

Details of Superlead Good Performance 1d/2d Handheld Barcode Scanner 2620BT

SuperLead

2620-BT&Dongle

Cordless 2D Area Imager- Bluetooth

250m Long Distance Communicantion HD/SR

Multiple language barcode message transfer

Super large field of view

Disinfectant ready. IP42 housing

High speed, omnidirectional reading of 1D, 2D, Postal barcodes and OCR

250 meter working range at open space

Battery replaceable

Reads barcode reliably off cell phone screens

Can work with Apple iOS, Andriod, Window PC/tablets

Specification of Superlead Good Performance 1d/2d Wireless Scanner 2620BT

Suzhou SuperMax Smart System Co., Ltd. 2620-BT&Dongle
Technical Specification
Physical Characteristics
Dimensions: 180mm x 95mm x 70mm
Weight: 116g
V oltage\Current: 5 VDC +/-10% @ 500 mA
Performance Characteristics
Image (Pixels): 640 pixels (H )x480 pixels (V)
Light Source: Aiming: 617 nm LED; illumination: 6500K LED
Field of View： 40°(H)x32°(V)
Roll / Pitch / Yaw: 360°, ±65°, ±60°
H＜: Battery volume 4.2v/2500mAh
Charging time 5-6 h
Working time It can scan once every 1 second and work continuously for 12 hours.
Wireless technolngy Bluetooth 5.0
Operation distance 250 meters (open space)
Print Contrast: 25% minimum reflective difference
Interfaces Supported: USB, OTA
Motion Tolerances up to 25 in. (63.5 cm) per second
Symbology Decode Capability
1-D: UPC, EAN, Codel28, Code 39, Code 93, Codell, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2-D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
User Environment
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 0% to 95% relative humidity,non-condensing
Shock Specifications: Designed to withstand 1.5m(5') drops
Ambient Light Immunity: 100.000 Lux.
Decode Ranges
5 mil (Code 39) 30mm-90mm
13 mil (100% Upca) 40mm-170mm
ID Minimal Resolution 4mil
Performance may be impacted by bar code quality and environmental conditions
