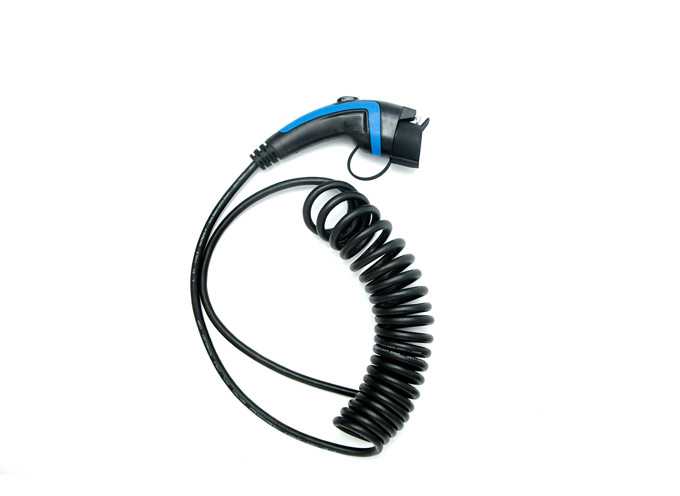

Our type 1 charging cable conforms to the SAE Standard (USA) of EV Charging, which suits electric vehicles manufactured in America. As most customers had asked, it has a unique design that one button is attached with a hole (reserved for the electronic lock to avoid stealing) on the top of the connector. The other option is Cable Spiral Type, this kind of type 1 EV car charging cable saves more space when stocking, a nice solution for charging.

As a professional EV charging cable distributor in China, Jayuan provides quality type 1 EV cable at great wholesale prices! Feel free to contact at any time.

Features of Type1 EV Charging Cable
Mostly E-Vehicle Workable.

XLPO Long Life-span Cable Insulation.

TPU Wear Resistance Sheath.

Custom Double Color Coating.

Applications: Workplace, Hotel, Residential, Public.

12 Months Warranty.

1 Phase, 3 Phase Optional.

15 Days Delivery Time(<100 pieces).

Specifications of Type1 EV Charging Cable
Electrical Environment Materials Mechanical
Insulation Resistance: >1000MΩ (DC500V) Operating Temperature: -30℃~50℃ Shell (Thermoplastic): UL94-VO Life: no-load plug>10000times
Flame
Retardent
Pins Temperature Rise: <50K Waterproof IP Grade: IP55 Contact Tube: Copper Alloy, Silver Plated External Force: 1meters Drop and 2tons vehicle run over pressure affordable.
Withstand Voltage: 2500V / / / / Insertion Force: <100N
Contact Impedance: 0.5mΩMax / / / / / /

As a solar solutions inc, we will do our best to meet all the needs of customers.
