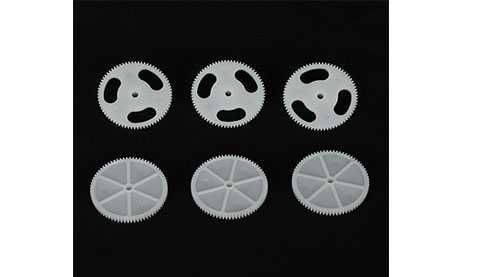

Plastic Gear Mold
Plastic Precision Gear is one of the most widely used transmission mechanisms in the field of instruments & meters, timers, reducers, cameras, copiers, fax machines, shredders, printers, vacuum cleaners, automatic coffee machines DVD moving support, automotive rearview mirrors, headlight regulators, toy movement, medical devices.

Precision injection molded gears have very high requirements in terms of dimension and performance, minor deformation will affect the performance of the gear system, it might cause unstable moving, vibration, shaking, or noise. Therefore, it is very important to prevent deformation in the process of injection molding.

High-quality Injection Mold For Precision Gear
Precision is the most essential factor when our team designed gear mold. We adopted steel material S316 with stable properties which are suitable for precise injection molding. The gears produced by this mold are operating reliably and transmit stably.

Basic Information for Plastic Gear Mold
Plastic Gear Molding Specification
Description Precision Gear Injection Mold
Plastic material POM or PA+FG
Mould dimension(mm) 230*246*350 mm
Mould weight (T) 140 kgs
Mould cavity & core steel S316
Nos of Cavity 4*4
Manufacture time (day) 30 days
Mould life ≥50,0000
Molding cycle (S) 40 S
Cooling line connector type quick coupling
Mold Characteristics material feeding evenly as per Moldflow pre-analysis

Features of Plastic Injection Molding Double Spur Gear
The Small Plastic Double Spur Gear is made of POM.

POM product has high rigidity and sound abrasion resistance, the size of the gear is precise for perfect assembly. It is of good self-lubricating property on the surface for smooth transmission.

As a reliable injection molding supplier, we can provide kinds of injection parts for sale, anything you need, please contact us.
