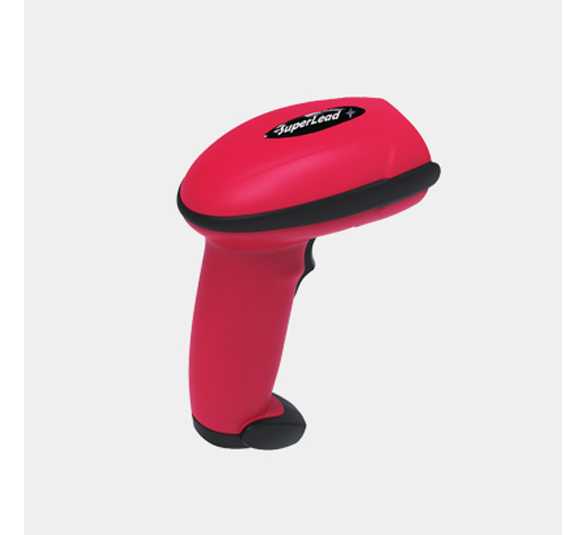

Superlead 8160 IP54 Industrial Level Megapixels DPM 2D Barcode Scanner
Large scanning window of the dpm barcode scanner

Self-inductive influence reading of the dpm scanner

Support sports reading, sensitive scanning

Support barcode reading without backlight

3 working modes ( normal mode, mobile phone model, fast-moving mode )

Multi-language barcode information direct transmission

Details of Superlead 8160 IP54 Industrial Level Megapixels DPM 2d Barcode Scanner

SuperLead

8110HD\8120DPM

Area-Imaging Scanner

World Class 2D Code Scanning

P54 Protection Withstand 2meters Drop

Manual or automatic triggering

Multiple language barcode message transfer

Available with a stand option

Reads bar code reliably off cell phone screens

Ruggedized design, withstand 6ft. drop to concrete

Integrated advanced illumination system

High speed, omnidirectional reading of 1D, 2D, Postal bar codesand OCR

Built in patented lighting system

Automatic interface detection without setting

Manual mode & self sensing mode optional

Industrial megapixel

High speed reading 3mil small code

Easily handle all radium engraved codes with highly reflective materials, and two-dimensional barcodes on metal and plastic materials

Easy to use

Application scenarios

outdoor operation, warehousing and logistics, assembly line, complete automobile and parts, 3C electronic manufacturing, battery manufacturing, PCBA manufacturing, etc

Specification of Superlead 8160 IP54 Industrial Level Megapixels DPM Code Reader

Suzhou SuperMax Smart System Co., Ltd. 8160
Technical Specification
Physical Characteristics
Dimensions 102mm x 71mm x 168mm
Weight 170g
Shell Material PC+ABS
Performance Characteristics
Sensor Pixels 1280p (H) x 1080p (V)
Light Source Illumination illumination:4500K LED, Aiming:617 nm LED
Field of View Angle 38.5°(H) x 32.5°(H)
Move Tolerance 5 m/s
Decoding Performance UPC(13 mil): 0mm - 280mm
Code 39 (3mil): 0mm - 100mm
QR Code (20mil): 0mm - 280mm
Resolution: 3mil
Symbology Decode Capability 2-D QR, DataMatrix, PDF417, Aztec
1-D Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC
User Environment
Working Temperature 0℃~50℃
Storage Temperature -40℃~70℃
Humidity 5%~95%, no condensation
Drop 1.8m cement floor, free fall, 6 sides, X 5 times/=30 times
ESD Protection Contact discharge: 15KV, coupling discharge: 20KV+
Enclosure Protection IP54
Environmental Photoimmunity 100.000Lux

As a barcode scanner supplier, we will do our best to meet all the needs of customers.
