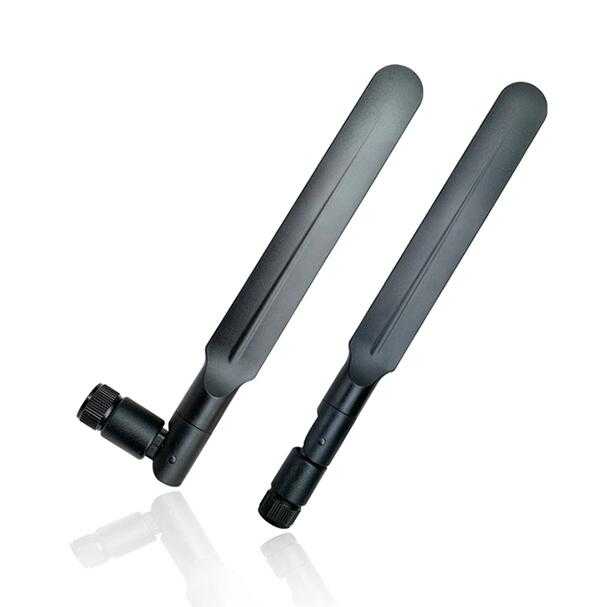

4G/LTE 3500MHz Terminal Antenna With RP SMA Antenna Outdoor(AC-Q7035-YZW)
The 4G/5G Whip Antenna is vertically polarized with an omnidirectional radiation pattern.

These antennas are intended for demonstration use or short range communications only.

It does not require a ground-plane to connect to.

It has a quality ABS housing for use with 4G/5G terminals.

Linear polarized antenna can be made very small and light weight, especially useful for weight-critical application It can be used straight or hinged 90 degrees.

The signal antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE, UMTS, and WI-FI.

Specification of 4G/LTE 3500MHz Terminal Antenna With SMA/RP SMA Connector
Electrical
Frequency Range 698-960/1710-3500MHz
Gain 2.15dBi
V.S.W.R ≤2.5
Radiation Omni-direction
Polarization Vertical
Maximum Input Power 5W
Impedance 50Ώ
Connector SMA Male/RP SMA Male
Antenna Radome Material ABS
Mechanical
Dimensions Φ13×172mm
Weight 15g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES

Features of 4G/LTE 3500MHz Terminal Antenna With SMA/RP SMA Connector
01
A sleek profile for low visual impact and designed as an‘on device’antenna.

02
Fixed straight connector, fixed elbow and bendable design, suitable for smart home, smart city, intelligent agriculture, wireless router wireless meter reading.

03
Suitable for use on any 5G LTE router with a SMA type antenna, easy to install and use.

If you want to know more kinds of reverse polarity antenna, please visit our website.
