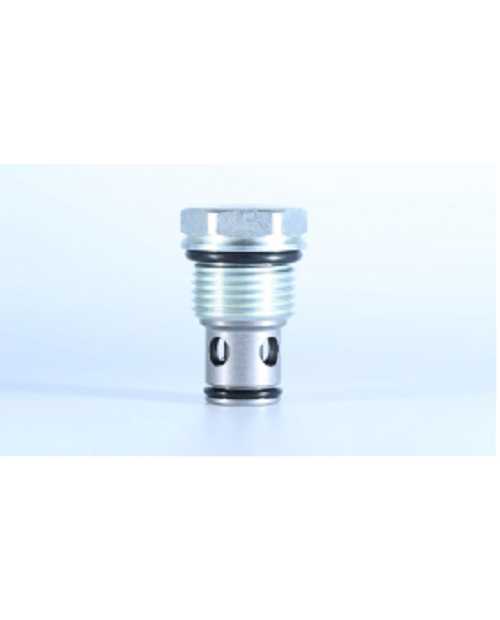

ICV10-B20 Poppet Valve, Check Valve (High Pressure)
The ICV10-B20 is a reliable Poppet Valve, Check Valve combination designed for fluid control applications. Its durable construction and efficient poppet valve mechanism enable precise flow control, while the integrated inline poppet check valve prevents backflow. Suitable for industries seeking dependable fluid control solutions in diverse operating conditions.

Specifications of ICV10-B20 Poppet Valve, Check Valve (High Pressure)
Product Model ICV10-B20 POPPET VALVE, CHECK VALVE (HIGH PRESSURE)
Operating Pressure 420 bar (6100 psi)
Flow 80 lpm max
Internal Leakage 0.10 ml/min. (2 drops/minute) max. at 420 bar (6100 psi)
Crack Pressure Defined Gauge bar (psi) evident at ① at 16.4 ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack 0.34 bar(5 psi);1.0 bar(15 psi);2.1 bar (30 psi);4.8 bar(70 psi);6.9 bar(100 psi)
Temperature -40°℃～100°C
Fluids Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
Cavity IVC10-2, See page 300

Material
Cartridge Weight: 0.08 kg. (0.17 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
Seal D type seal ring.
Standard Ported Body Weight: 0.43 kg. (0.95 lbs.); Anodized highstrength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ICV10-B20 Poppet Valve, Check Valve (High Pressure)
1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Industry common cavity.

Operation Symbol of ICV10-B20 Poppet Valve, Check Valve (High Pressure)
The ICV10-B20 allows flow passage from ① to ②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ①to open to ②.
