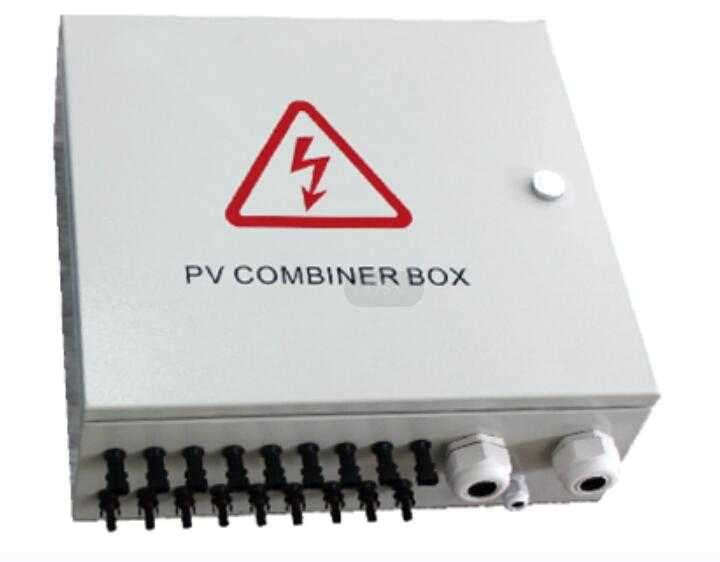

MICNO intelligent combiner box in solar system is designed for multi-input tandem photovoltaic power system bus application, set convergence, detection, monitoring and protection into one to achieve a secure, reliable and convenient connection between multiple photovoltaic strings and inverters. The JTPV series intelligent photovoltaic dc combiner box solar can be used in conjunction with the iMars inverter to form an overall installation and can be used as a separate installation.

Solar panel combiner box diagram
Max. input voltage: DC 1000V (according to user’s requirements)

Max. input current: 20A (according to user’s system confguration)

Solar panels input route: 6, 8, 10, 12, 14,16, 18, 20 lines (according to user’s requirements)

Protection class: IP65

For more information about dc combiner box specification and dc combiner box price, please feel free to contact us!
