Supports 1-4CH 720P real-time recording, AHD 720P and CVBS optional

2
Supports 2XSD cards recording (each max 256GB ), support two SD cards to mirror recording

3
Supports real-time remote viewing through 4G/3G/WIFI(optional), remote video & trace download and playback

4
Support two way talking and trunking intercom via 4G or WIFI

5
supports pre-recording for alarm events, motion detection alarm, G sensor alarm, alarm linkage, etc

6
Built-in (3G/4G Intelligent switch ), WiFi, GPS/Glonass , G-sensor Etc

7
Car black box function, To Record important information such as speed, position, hard braking, reversing, turning, alarm, etc

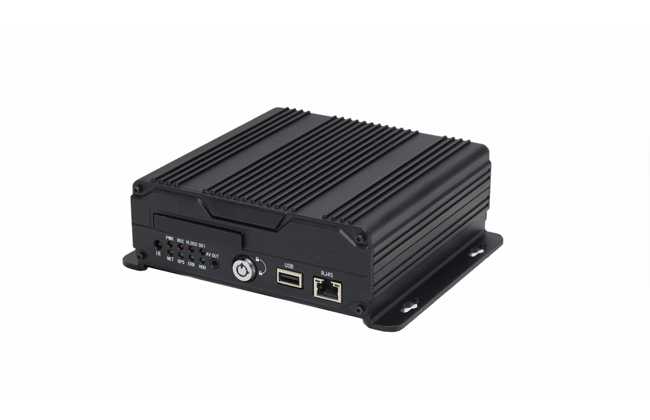

Specification of 4CH 720P SD Card 4 Channel Mobile DVR With 4G GPS WIFI
OS Linux
Language English/Chinese/Customized
Video Compression H.264 Compression
Video Record Video-Input 1-4 Channels AHD/CVBS
System aviation connector, 1.0Vp-p, 75Ω
Video Onput 1 CVBS, 1.0Vp-p, 75Ω, Aviation, Support 1CH Full Screen,4CH Screen view
Resolution 720P/D1/HD1/CIF, MAX:4 channels of 720P
Image Quality 0-7 levels, 0 is the highest level.
Compression G.726 compression, 8KB/s speed
Alarm Input 6CH Alarm Input,1CH AD Input, impulse speed input, Alarm Linkage
Alarm Output 2CH Alarm Output, Support Light/Sound alarm sensor, Oil/Power cut off
Interface 2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection,1CH 485 Interface

4G/3G Built-in 4G module optional, TDD-LTE, FDD-LTE, WCDMA
GPS Position Support Built GPS/BD Module
WiFi 2.4G HZ or 5G HZ
Storage 2XSD cards recording(each max 256GB )
USB Interface USB Interface on Front Panel for data back up by U Disk, Hard Disk
Video playback Max support 4CH Replay /Stop/Fast/Slow at same time
Optional Functions Support voice call each other
Support TTS voice broadcast function.
Support LED Advertisement Panel, Oil Sensor, ADAS, DSM, Car OBD, two-way talking, etc.
Voltage & Power Wide Voltage.Support DC:+10V - +36V
+12V~1.5A,+5V~1.5A
Working Environment -20℃ - +70℃
Others 150 (W) w 57 (H) x 168 (L) mm,

weight 1.1KG

As a police body cam manufacturer, we can provide kinds of police body cameras for sale, if you have needs, please contact us.
