Advantages
Class I Division 2,Group C,D

Zone 1, Zone 2

Class II Division 1,Group E,F,G

Zone 21, Zone 22

Class III

Type 4X，IP66

Ex d e IIB T6 Gb

Max.250A

Ex tD A21 T80℃ IP66

Built-in Terminal blocks

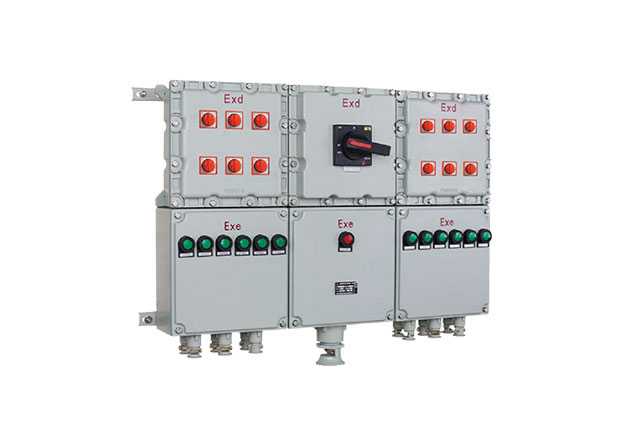

Constructed with the enclosure combination for flame proof aluminum alloy Ex d housing and increased safety aluminum alloy Ex e housing, SPN-de-IIB series explosion proof panel is defended by dual protection and operated by flame proof threaded switching handle on hubs of the housing cover. A scientific combination for several pieces housing of explosion proof panelboards have both panel function and junction box function meeting parts of complicated need, the hazard class division is class 1 div 2 for group C, D and zone 1 for group IIC.

Features
Explosion Proof Panel SPL-de-IIB Series

01
Flame proof Ex d IIB aluminum alloy housing together with electrical breakers, buttons and indicators

Flame Proof Circuit Breaker
02
Increased safety Ex e aluminum alloy housing together with increased safety Ex e terminal blocks

Data Sheet
Explosion Proof Panel SPL-de-IIB Series
Compliaces IEC Standard
IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-0, IEC61241-1
Ex d e IIB T6 Gb
Ex tD A21 T80℃ IP66
Zone 1, Zone 2
Zone 21, Zone 22
EU Standard
EN60079-0, EN60079-1, EN60079-7, EN61241-0, IEC61241-1
II 2 G Ex d e IIB T6 Gb
Zone 1, Zone 2
Zone 21, Zone 22
NEC & CEC Standard
Class I, Div.2, Group C, D
Class II, Div.1, Group E, F, G
Class III
UL Standard
UL844, UL1598, UL1598A
CSA Standard
CSA C22.2 No.137
Material Copper-free aluminium,grey
Rated Voltage Max.415V AC
Rated Current Max.160A
IP Grade Wet Locations, Type 4X, IP66
Ambient Temperature -20℃~ +55℃ /-4°F ~ +131°F
Cable Entry Metric or NPT thread type plugs (standard) or cable glands
Buite-in Components Main Switch(MCB or MCCB),Branch Switch(MCB or MCCB),Indicator,Terminal etc.
